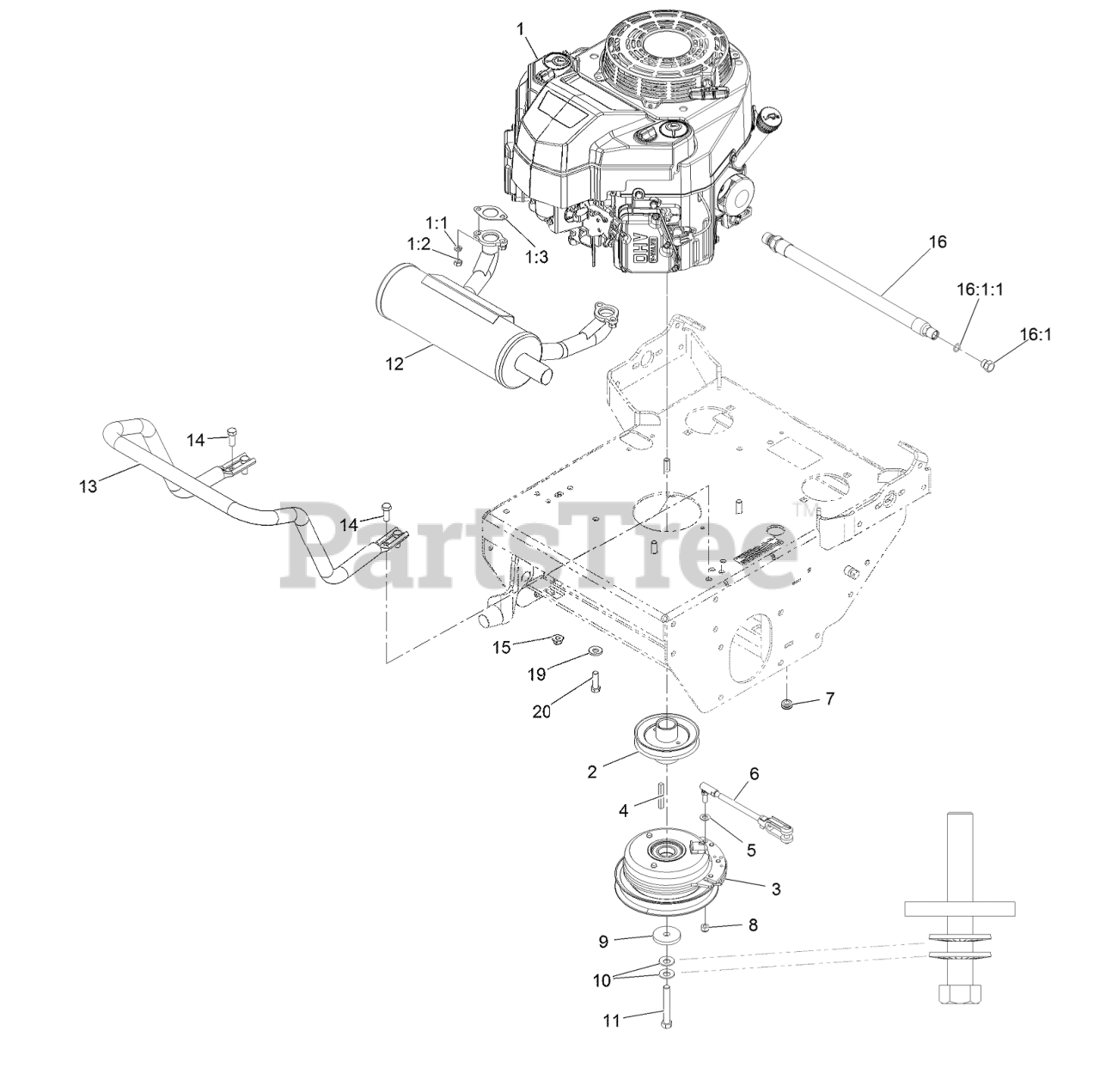

  • Title
1

Engine, Kawasaki 481Cc

Note: Not serviced separately | Obtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

1:2

$1.99

$

In Stock, Qty 20+

0

1:3

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7328

SHEAVE, W/ HUB

$92.99

$

In Stock, only 2 left!

0

3

Exmark 126-2615

CLUTCH, 105 FT/LBS, 1.13

$435.99

$

In Stock, only 1 left!

0

4

Exmark 5-1336

KEY-SQUARE

Note: Apply anti-seize compound to engine crankshaft, pulley hub I.D., clutch bore I.D. and square key.

$10.99

$

In Stock, Qty 5

0

5

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Exmark 126-0620

ASM, CLUTCH ANCHOR

$62.99

$

In Stock, only 2 left!

0

7

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

8

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

9

Exmark 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 8

0

10

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

11

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, only 4 left!

0

12

Exmark 116-3735

MUFFLER-HORIZONTAL

$210.99

$

Usually ships in 3-6 days

0

13

Exmark 135-4729-03

Guard-Muffler

$85.99

$

Usually ships in 3-6 days

0

14

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 116-5052

ASM, ENGINE OIL DRAIN HOS

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$52.99

$

In Stock, only 1 left!

0

16:1

Exmark 353-508

PLUG-HH

Note: Torque to 20-24 ft-lb

$8.49

$

In Stock, only 1 left!

0

16:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

19

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

20

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
