TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 404314159 - 406294344) (2019) Controls Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

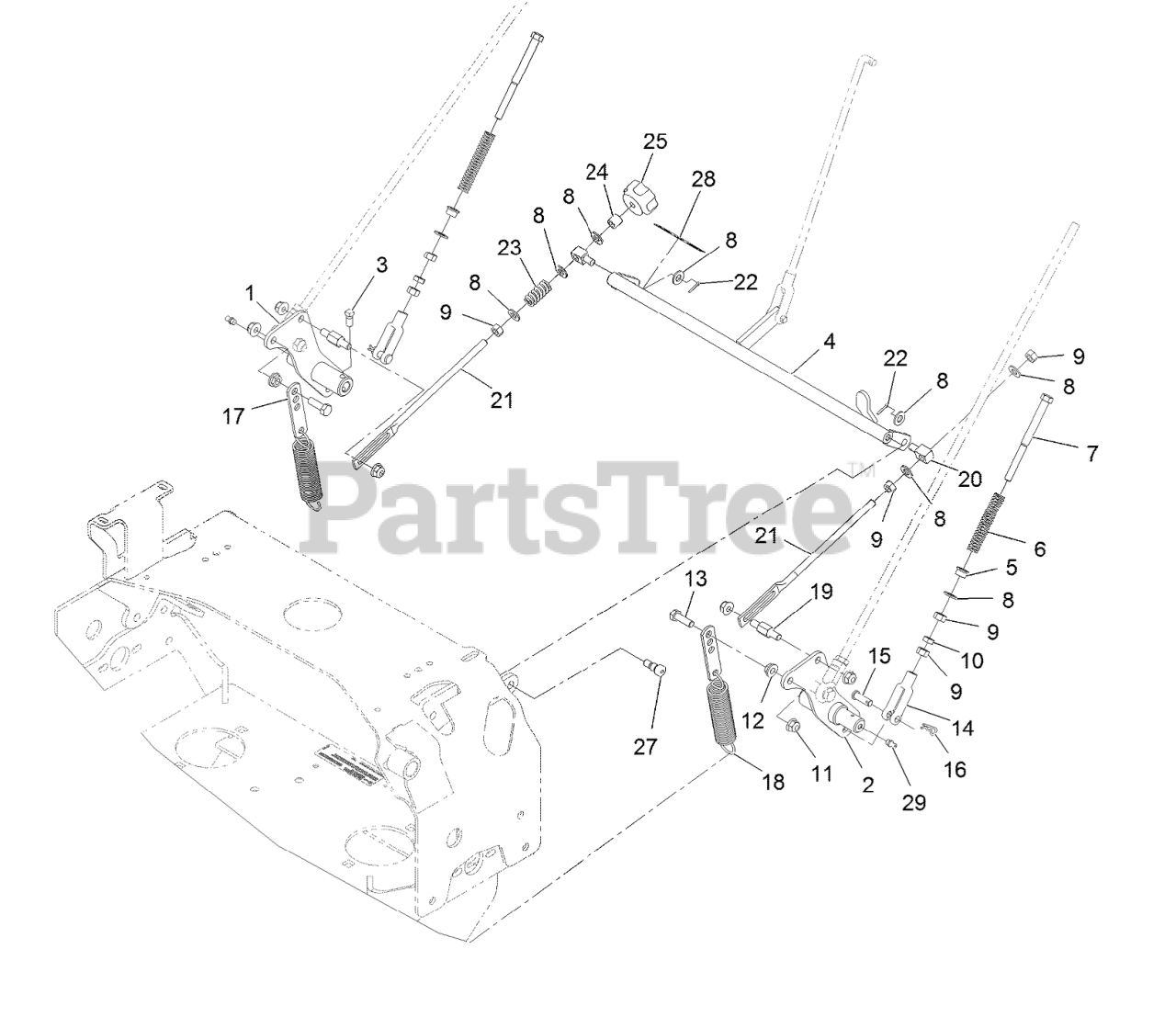

Controls Assembly Parts Diagram

  • Title
1

Exmark 116-9975

WELD, MOTION CONTROL, RT

$67.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9974

WELD, MOTION CONTROL, LT

$67.99

$

Usually ships in 3-6 days

0

3

Exmark 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

4

Exmark 126-2982-01

WELD, SPEED CONTROL

$85.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

6

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

$5.49

$

In Stock, only 1 left!

0

7

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

8

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

10

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

12

$1.49

$

In Stock, Qty 20+

0

13

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

15

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

16

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

18

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

19

Exmark 126-0610

PIN, MOTION CONTROL

$6.49

$

Usually ships in 3-6 days

0

20

Exmark 126-8571

SWIVEL-ADJUSTABLE, SHORT

$5.49

$

In Stock, only 2 left!

0

21

Exmark 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 1 left!

0

22

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

24

$5.49

$

In Stock, only 2 left!

0

25

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

27

Exmark 1-809056

SCREW-HSH

$7.99

$

In Stock, only 2 left!

0

28

Exmark 116-7918

DECAL-TRACKING ADJUSTMENT

$25.99

$

Usually ships in 3-6 days

0

29

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0
