TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Main Frame Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

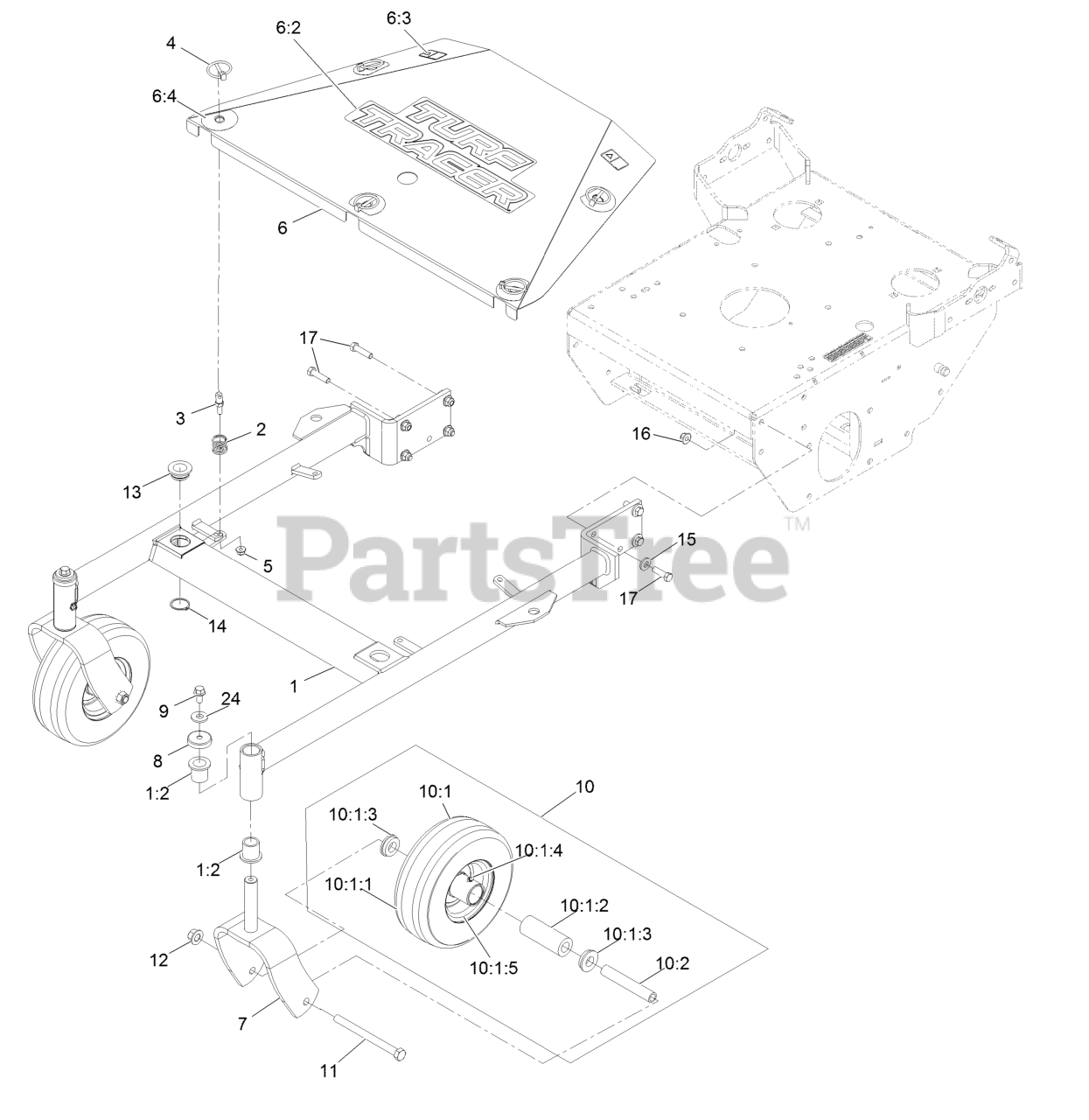

Main Frame Assembly Parts Diagram

  • Title
1

Exmark 126-1513

ASM, Frame W/ Bushings, 36

$694.99

$

Usually ships in 3-6 days

0

1:2

Exmark 1-303514

Bearing-Flanged

$12.99

$

In Stock, Qty 20+

0

2

$2.99

$

In Stock, only 1 left!

0

3

Exmark 126-1504

Pin-Spring
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 92-1298

Pin-Lynch

$3.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

6

Exmark 126-1516

ASM, Shield W/ Decals, 36

$256.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-6892

Decal-Turf Tracer

$16.99

$

In Stock, only 4 left!

0

6:3

Exmark 106-5517

Decal-Warning

$5.49

$

In Stock, only 3 left!

0

6:4

Exmark 126-1692

Decal-Scratch Cover

$17.99

$

Usually ships in 3-6 days

0

7

Exmark 116-7941-01

Fork, Caster [red]

$95.99

$

In Stock, Qty 20+

0

8

Exmark 126-1425

Cap, Dust

$3.99

$

In Stock, Qty 20+

0

9

Exmark 110-1718

Screw-Hex Flange 3/8-16 X 3/4

$1.99

$

In Stock, Qty 20+

0

10

$12.99

$

In Stock, Qty 20+

0

10

Exmark 103-2171

Kit,Semi-Pneumatic Wheel Replacement

$129.99

$

In Stock, only 4 left!

0

10:1

Wheel And Tire ASM

$

$

Not available

10:1:1

Tire

$

$

Not available

10:1:2

Exmark 1-513809

Bearing

$35.99

$

In Stock, Qty 20+

0

10:1:3

Exmark 1-513810

Bushing-Flanged

$5.99

$

In Stock, Qty 20+

0

10:1:4

Exmark 302-61

Zerk-45deg 1/4-28

$11.99

$

In Stock, only 2 left!

0

10:1:5

Wheel

$

$

Not available

10:2

$12.99

$

In Stock, Qty 20+

0

11

Exmark 325-20

Screw-HH 1/2-13 X 6

$7.99

$

In Stock, Qty 20+

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

13

Exmark 1-513336

Bushing-Deck

$25.99

$

In Stock, Qty 20+

0

14

Exmark 32120-33

Ring-Retaining

$7.49

$

In Stock, Qty 20+

0

15

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

16

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-7

Screw-HH 3/8-16 X 1 1/4

$2.99

$

In Stock, Qty 20+

0

24

$3.49

$

In Stock, Qty 20+

0
