TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 402082300 - 404314158) (2018) Electrical Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

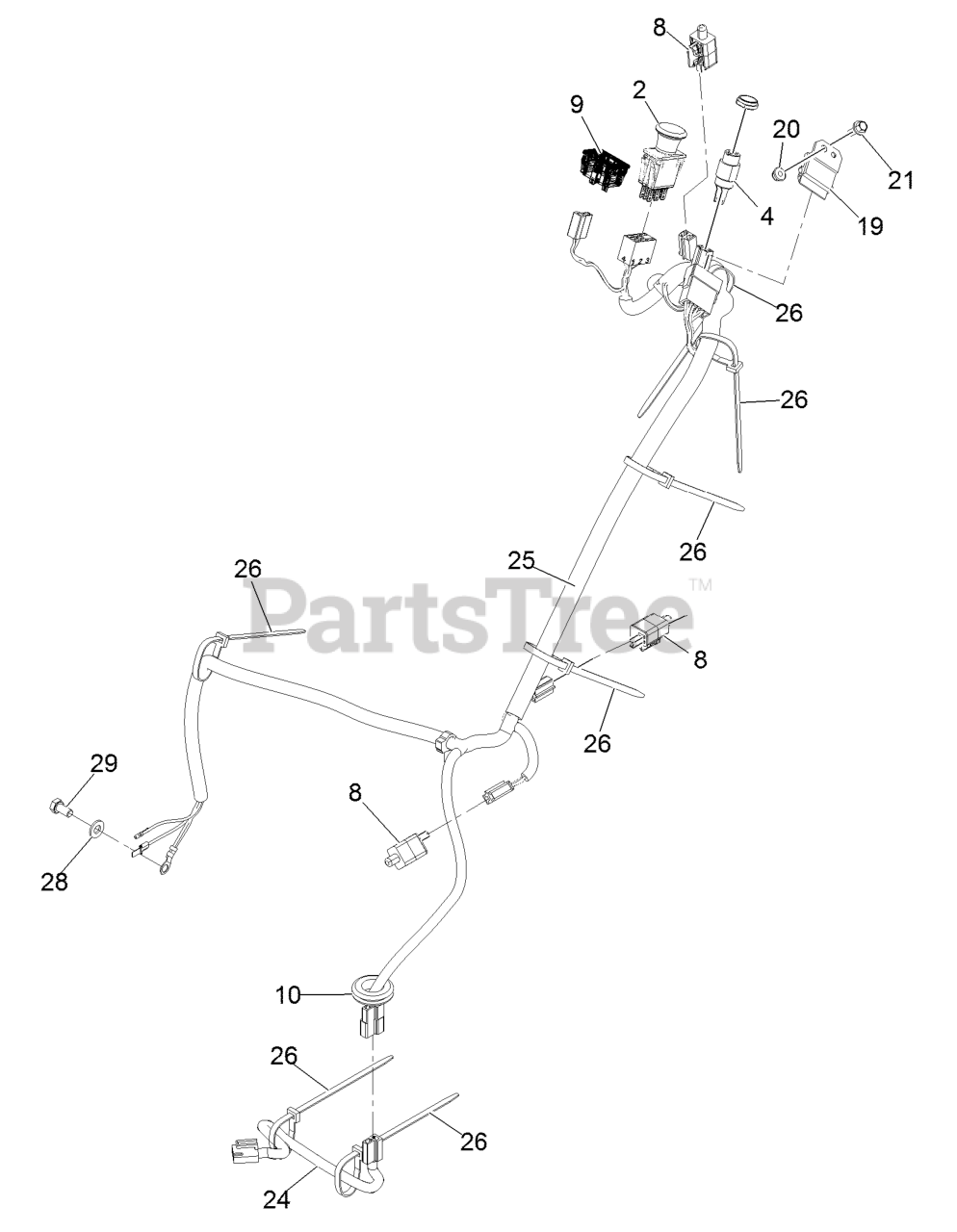

Electrical Assembly Parts Diagram

  • Title

2

Exmark 103-5221

Switch-PTO

$58.99

$

In Stock, Qty 20+

0

4

Exmark 1-403121

Switch & Key (Includes Nut & Washer)

$22.99

$

In Stock, only 3 left!

0

4

Exmark 103-0498

Nut-Ignition

$3.49

$

In Stock, Qty 6

0

8

Exmark 110-6765

Switch

$13.99

$

In Stock, Qty 11

0

9

Exmark 126-3931

Hour Meter

$67.99

$

Usually ships in 3-6 days

0

10

Exmark 1-543286

Grommet

$12.99

$

Usually ships in 3-6 days

0

19

Exmark 1-323430

Module-Interlock

$140.99

$

In Stock, only 1 left!

0

20

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

21

Exmark 126-1592

Screw-Head, Flange

$1.49

$

In Stock, only 1 left!

0

24

Exmark 126-0624

Harness-Clutch Pigtail

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0625

Harness-Main

$298.99

$

Usually ships in 3-6 days

0

26

Exmark 1-303335

Tie-Cable 7 15/16 (Large)
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

28

Exmark 33094-00

Washer

$0.99

$

In Stock, only 2 left!

0

29

Exmark 33114-016

Screw-HH M8-1.25 X 16Mm

$0.99

$

In Stock, only 4 left!

0
