TTS481CKA36300 - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki (SN: 400000000 - 402082299) (2017) Main Frame Assembly Parts Diagram

36" Turf Tracer S-Series Walk-Behind Mower, Kawasaki

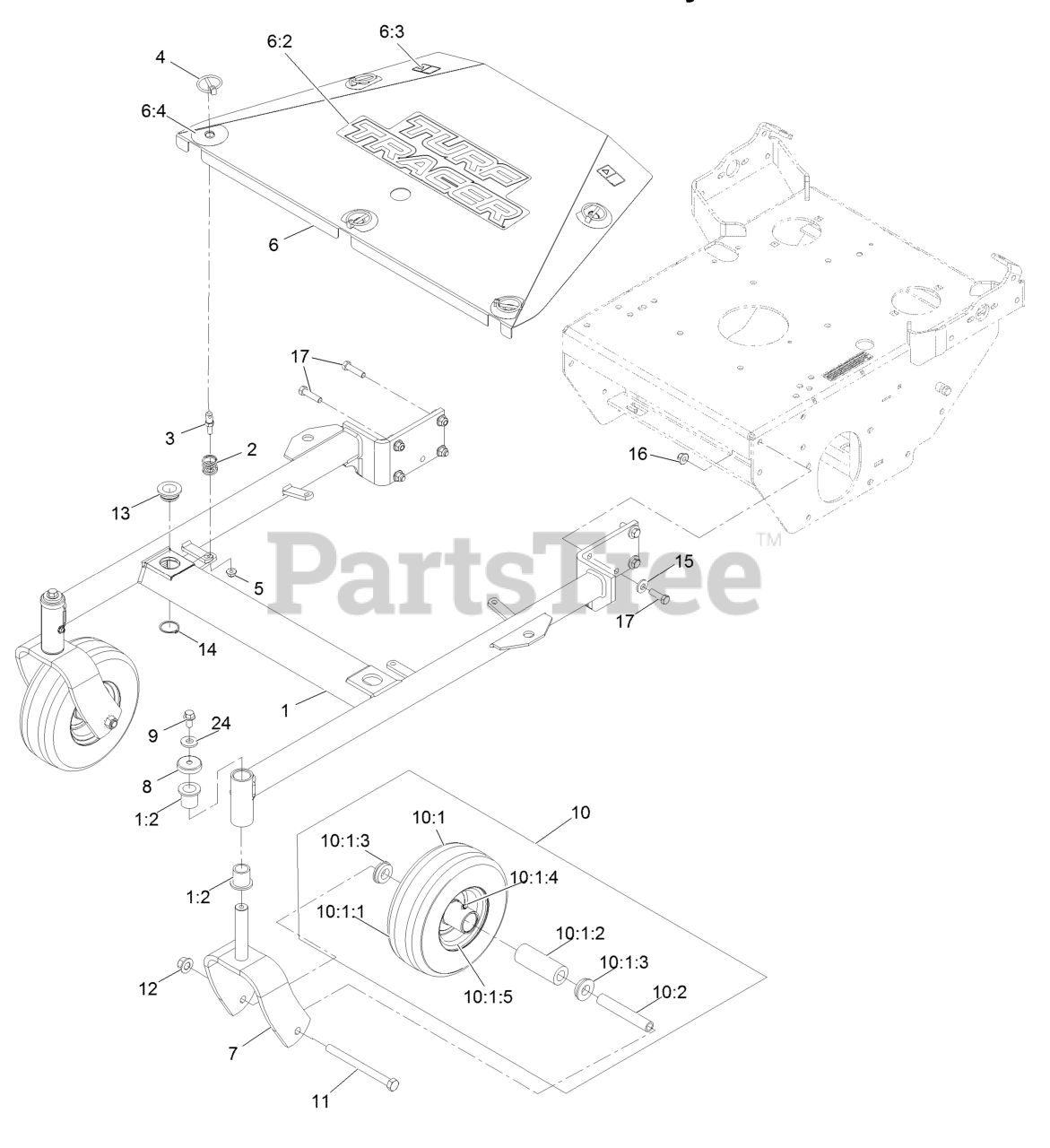

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 126-1513

ASM, FRAME W/ BUSHINGS, 3

$694.99

$

Usually ships in 3-6 days

0

1:2

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

0

2

Exmark 126-1503

SPRING

$2.99

$

In Stock, only 1 left!

0

3

Exmark 126-1504

PIN-SPRING
(Superseded to 135-7455)

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Exmark 126-1516

ASM, SHIELD W/ DECALS, 36

$256.99

$

Usually ships in 3-6 days

0

6:2

Exmark 126-6892

DECAL-TURF TRACER

$16.99

$

In Stock, only 4 left!

0

6:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

6:4

Exmark 126-1692

DECAL-SCRATCH COVER

$17.99

$

Usually ships in 3-6 days

0

7

Exmark 116-7941-01

FORK, CASTER

$95.99

$

In Stock, Qty 20+

0

8

Exmark 126-1425

CAP, DUST

$3.99

$

In Stock, Qty 20+

0

9

Exmark 110-1718

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 20+

0

10

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$129.99

$

In Stock, only 4 left!

0

10:1

Wheel And Tire ASM

Note: Not serviced separately

$

$

Not available

10:1:1

Tire

Note: Not serviced separately

$

$

Not available

10:1:2

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

0

10:1:3

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 20+

0

10:1:4

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

10:1:5

Wheel

Note: Not serviced separately

$

$

Not available

10:2

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 20+

0

11

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

12

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

13

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 20+

0

14

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, Qty 20+

0

15

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0
