TTS20KAE483 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, 20hp Kawasaki (SN: 920000 - 999999) (2011) Fuel Tank Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, 20hp Kawasaki

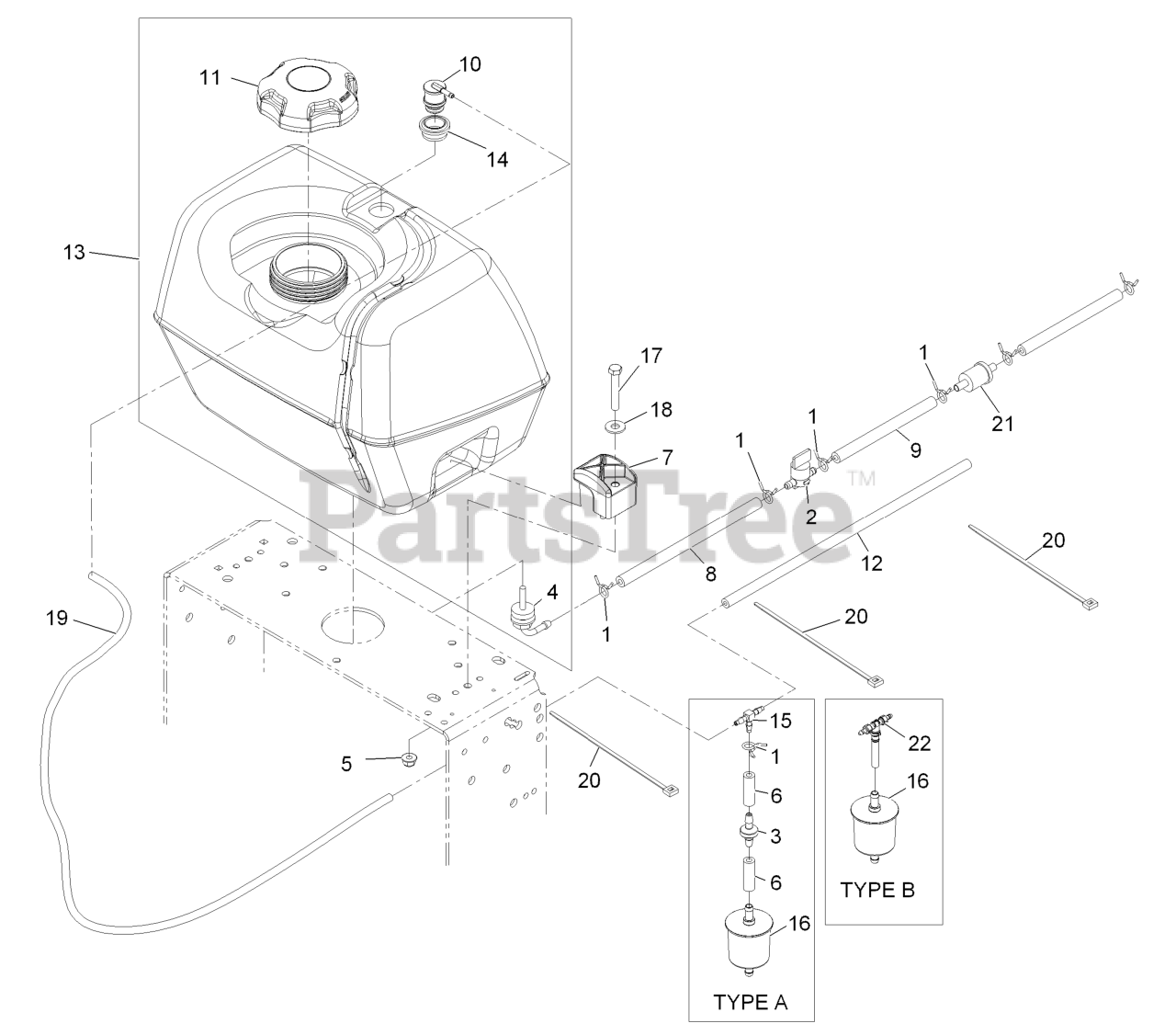

Fuel Tank Assembly Parts Diagram

  • Title

1

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

1

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

3

Exmark 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

4

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$36.99

$

In Stock, only 2 left!

0

5

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Exmark 106-9492

HOSE-FUEL

$2.49

$

In Stock, only 2 left!

0

7

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

9

Exmark 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

10

Exmark 114-0285

119-3547
(Superseded to 119-3547)

$16.99

$

In Stock, only 4 left!

0

11

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

12

Exmark 115-7872

HOSE-FUEL

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 116-3656

126-1525
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

14

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

15

Exmark 120-2234

FITTING-TEE

$3.99

$

Usually ships in 3-6 days

0

16

Exmark 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 5

0

17

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

18

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Exmark 116-4346

HOSE-EMISSIONS

$11.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

21

Pn 41019-1055 Filter W/6in Fuel Line

Note: Obtain parts from www.kawpowerepc.com\nNot serviced separately

$

$

Not available

22

Exmark 116-5464

TEE AND CHECK

$46.99

$

In Stock, only 1 left!

0
