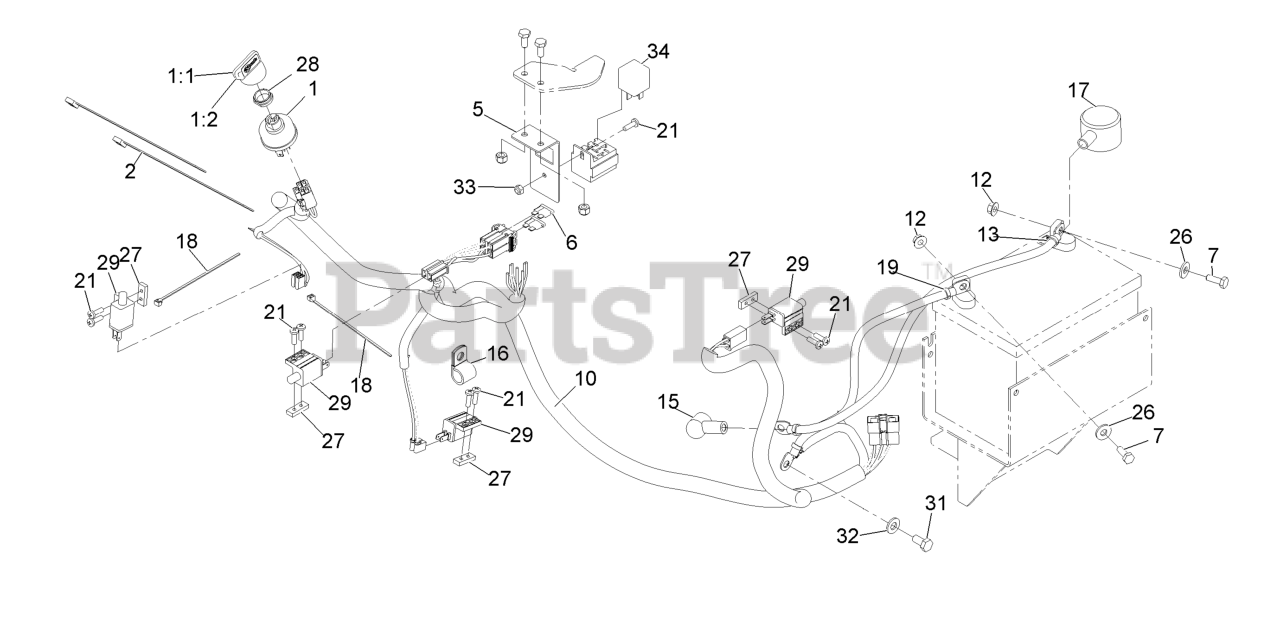

TTS20KAE483 - Exmark 48" Turf Tracer S-Series Walk-Behind Mower, 20hp Kawasaki (SN: 920000 - 999999) (2011) Electrical Assembly Parts Diagram

48" Turf Tracer S-Series Walk-Behind Mower, 20hp Kawasaki

Electrical Assembly Parts Diagram

  • Title

1

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 15

0

1:1

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

1:2

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

5

Exmark 116-2738-01

BRACKET-FUSE AND RELAY

$144.99

$

Usually ships in 3-6 days

0

6

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

7

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 116-2560

116-8375
(Superseded to 116-8375)

Note: Use dielectric grease on all wiring harness connectors.

$138.99

$

Usually ships in 3-6 days

0

12

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

13

Exmark 109-7628

ASM,POSITIVE BATTERY CABL

$26.99

$

In Stock, only 1 left!

0

15

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

16

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 2 left!

0

18

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

$13.99

$

Usually ships in 3-6 days

0

21

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

26

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

27

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 1 left!

0

28

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

29

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

31

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

32

Exmark 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

33

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0
