TTS16KA523 - Exmark 52" Turf Tracer S-Series Walk-Behind Mower, 16hp Kawasaki (SN: 920000 - 999999) (2011) Mower Deck Assembly Parts Diagram

52" Turf Tracer S-Series Walk-Behind Mower, 16hp Kawasaki

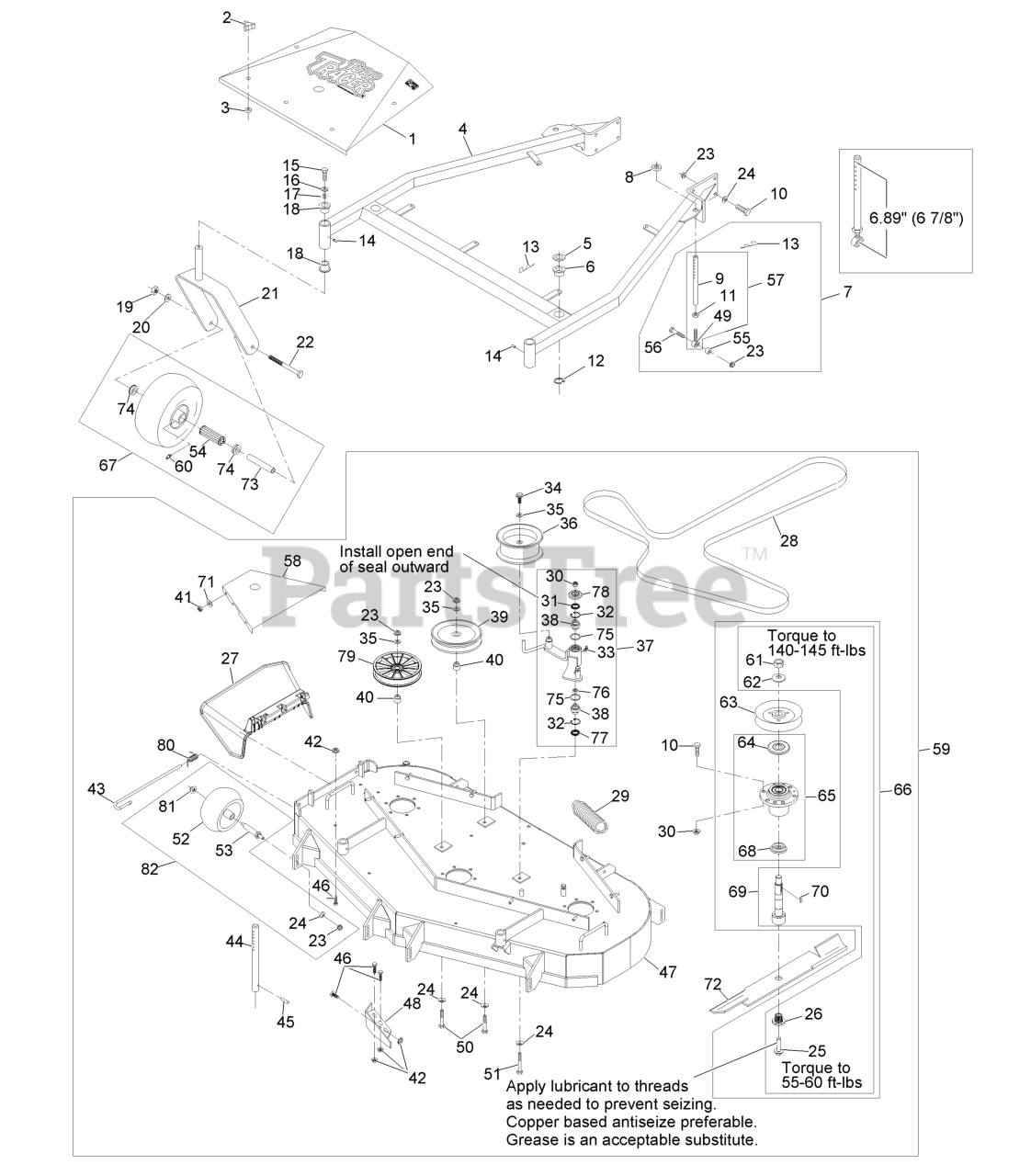

Mower Deck Assembly Parts Diagram

  • Title

1

Exmark 116-2712

ASM,SHIELD W/DECALS 52 TT

$397.99

$

Usually ships in 3-6 days

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-414311

SUPPORT,DECK W/BUSHINGS

$1166.99

$

Usually ships in 3-6 days

0

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

0

6

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

7

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

$147.99

$

In Stock, Qty 5

0

8

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

0

10

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

12

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

15

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 19

0

17

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

18

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 13

0

19

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

20

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$90.99

$

In Stock, Qty 7

0

22

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

23

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

0

26

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

27

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$52.99

$

In Stock, Qty 11

0

28

Exmark 1-413308

BELT,DECK DRIVE

$143.99

$

In Stock, only 2 left!

0

29

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 9

0

30

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

31

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

32

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

33

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

34

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

35

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

37

Exmark 103-8585

KIT, DECK IDLER TTHP48&52

Note: Assembly also includes Washer and Screw

$200.99

$

In Stock, only 1 left!

0

38

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

39

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 7

0

40

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 3 left!

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

44

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

45

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 7

0

46

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

47

Exmark 1-414385

ASM,DECK W/DECALS TTHP52

$3296.99

$

Usually ships in 3-6 days

0

48

Exmark 116-2073-01

Balljoint

$

$

Currently unavailable

49

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

50

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 5

0

51

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

52

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 16

0

53

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

54

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

55

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 3 left!

0

56

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Exmark 1-414521

1-411532
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

58

Exmark 103-2971-01

SHIELD,SIDE BELT 52

$70.99

$

In Stock, only 1 left!

0

59

Exmark 103-0322

Zerk-45deg 1/4-28

$

$

Currently unavailable

60

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

61

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

62

Exmark 103-2802

WASHER

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$5.49

$

In Stock, Qty 15

0

63

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$67.99

$

In Stock, Qty 8

0

64

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

65

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 4 left!

0

66

Exmark 103-9081

ASM, CUTTER HSG

$438.99

$

In Stock, only 1 left!

0

67

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$126.99

$

In Stock, only 4 left!

0

68

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

69

Exmark 103-9071

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$220.99

$

In Stock, only 3 left!

0

70

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 15

0

71

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

72

Exmark 103-6402

103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

72

Exmark 103-6392

103-6392-S
(Superseded to 103-6392-S)

$30.99

$

In Stock, Qty 20+

0

72

Exmark 103-6387

103-6387-S
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 11

0

72

Exmark 103-6382

103-6382-S
(Superseded to 103-6382-S)

$36.99

$

In Stock, only 4 left!

0

72

Exmark 103-6397

116-5175-S
(Superseded to 116-5175-S)

$30.99

$

In Stock, only 4 left!

0

73

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

74

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

75

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

76

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

77

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

78

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

79

Exmark 109-0977

PULLEY,IDLER 5"

$72.99

$

In Stock, Qty 9

0

80

Exmark 116-0962

SPRING, TORSION

$8.49

$

In Stock, only 1 left!

0

81

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

82

Exmark 103-4051

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0
