Exmark TTS16KA363CA - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, 16hp Kaw, CARB (SN: 920000 - 999999) (2011) Engine Deck Assembly Parts Lookup with Diagrams

1

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

3

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

Usually ships in 3-6 days

4

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

5

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

6

Exmark 1-414143

ASM,PIVOT W/BUSHINGS

$132.99

$

Usually ships in 3-6 days

7

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

8

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

9

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

10

Exmark 1-523498

SPRING,EXTENSION

$11.99

$

In Stock, only 2 left!

11

Exmark 103-7398

SPRING,EXTENSION

$21.99

$

In Stock, only 3 left!

12

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

13

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

14

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

15

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

16

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

17

Exmark 1-413282

LINKAGE,LOWER

$21.99

$

In Stock, Qty 12

18

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

19

Exmark 109-1297

KIT,TTHP ENG DECK

(Superseded to 116-6129) 

$

Not available 

20

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, Qty 14

21

Exmark 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

22

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

23

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

24

Exmark 1-322110

GUIDE-BELT

$13.99

$

In Stock, Qty 8

25

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 10

26

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

27

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

28

Exmark 1-323366

RING-SPLIT

$6.99

$

In Stock, Qty 7

29

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

30

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

31

Exmark 1-412080-01

WLD,MOTOR MOUNT 36

$137.99

$

In Stock, only 1 left!

32

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

33

Exmark 1-602997

112-9049

(Superseded to 112-9049) 

$199.99

$

In Stock, only 2 left!

33:1

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

34

Exmark 1-413473

WHEEL AND TIRE ASM

$216.99

$

Usually ships in 3-6 days

34:1

Exmark 1-413474

TIRE-TURFMASTER

$142.99

$

Usually ships in 3-6 days

34:2

Exmark 1-603715

RIM-WHEEL

(Superseded to 107-2475) 

$77.99

$

In Stock, only 2 left!

35

Exmark 242-50

NUT-LUG

(Superseded to 139-2564) 

$1.49

$

In Stock, Qty 5

36

Exmark 32136-5

NUT-HEX, SLOTTED

$8.49

$

In Stock, only 2 left!

37

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 15

38

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, only 4 left!

39

Exmark 103-6309

SHEAVE, DRIVE

Note: Apply anti-seize compound in bore.

$251.99

$

In Stock, only 4 left!

40

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$30.99

$

In Stock, only 2 left!

41

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

42

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

43

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$6.49

$

In Stock, Qty 10

44

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

45

Exmark 109-4077

PULLEY-IDLER, FLAT

$22.99

$

In Stock, Qty 20+

46

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

47

Exmark 103-8599

116-6316

(Superseded to 116-6316) 

$25.99

$

In Stock, Qty 20+

48

Exmark 109-1296

KIT,PUMP IDLER ARM TTHP

$232.99

$

Usually ships in 3-6 days

49

Exmark 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 6

50

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

51

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

52

Exmark 1-809069

SCREW-HSH

$3.49

$

In Stock, only 1 left!

53

Exmark 1-323365

CHAIN-LINK, TWIST

$18.99

$

In Stock, only 1 left!

54

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

55

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

56

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 7

57

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, Qty 11

58

Exmark 109-1057

BELT,COG A 50.55

(Superseded to 109-1057-SL) 

$37.99

$

In Stock, Qty 20+

59

Exmark 1-413010

SHEAVE ASM

Note: Apply anti-seize compound in bore.

$53.99

$

In Stock, Qty 14

60

Exmark 103-6317

BELT,B-38.0

(Superseded to 103-6317-SL) 

$41.99

$

In Stock, Qty 20+

61

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 19

62

Exmark 103-6308

SHEAVE, W/ SHAFT

Note: Apply anti-seize compound in bore.

$173.99

$

In Stock, Qty 6

63

Exmark 1-413111

BEARING,CLUTCH SHAFT

Note: Apply anti-seize compound in bore.

$43.99

$

In Stock, Qty 9

64

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

65

Exmark 1-413012

SPACER,CLUTCH BEARING

$7.49

$

In Stock, Qty 5

66

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

67

Exmark 1-413049-01

PLATE-CLUTCH PIVOT

$45.99

$

In Stock, Qty 7

68

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

69

Exmark 1-413207

SLEEVE,BEARING

$13.99

$

In Stock, Qty 19

70

Exmark 1-414418

ASM,CLUTCH ARM W/BEARING

$

Not available 

71

Exmark 1-413235

WASHER-SPACER

$2.99

$

In Stock, Qty 14

72

Exmark 1-412138-03

WLD,PIN PIVOT

$41.99

$

In Stock, Qty 15

73

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

74

Exmark 1-413062

BAND,BRAKE BLADE

$

Not available 

75

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

76

Exmark 103-6310

GUIDE,BELT (PLTD)

$37.99

$

Usually ships in 3-6 days

77

Exmark 1-412031

SHEAVE,6.13 W/HUB

Note: Apply anti-seize compound in bore.

$171.99

$

In Stock, only 3 left!

78

Exmark 1-800521

SCRW,CAP HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 17

79

Exmark 1-413009-01

PLATE-GUARD

$67.99

$

Usually ships in 3-6 days

80

Exmark 103-2056

SHIELD-DRAG

$67.99

$

In Stock, Qty 7

81

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 9

82

Exmark 1-413511

MOUNT,DRAG SHIELD

$8.99

$

In Stock, only 3 left!

88

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

89

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 5

90

Exmark 1-807019

KEY-WOODRUFF

$19.99

$

In Stock, only 2 left!

91

Exmark 103-3504

BEARING-SPHERICAL

$26.99

$

In Stock, Qty 20+

92

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 13

93

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 9

94

Exmark 116-2839

NUT-LOCK

$12.99

$

Usually ships in 3-6 days

95

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

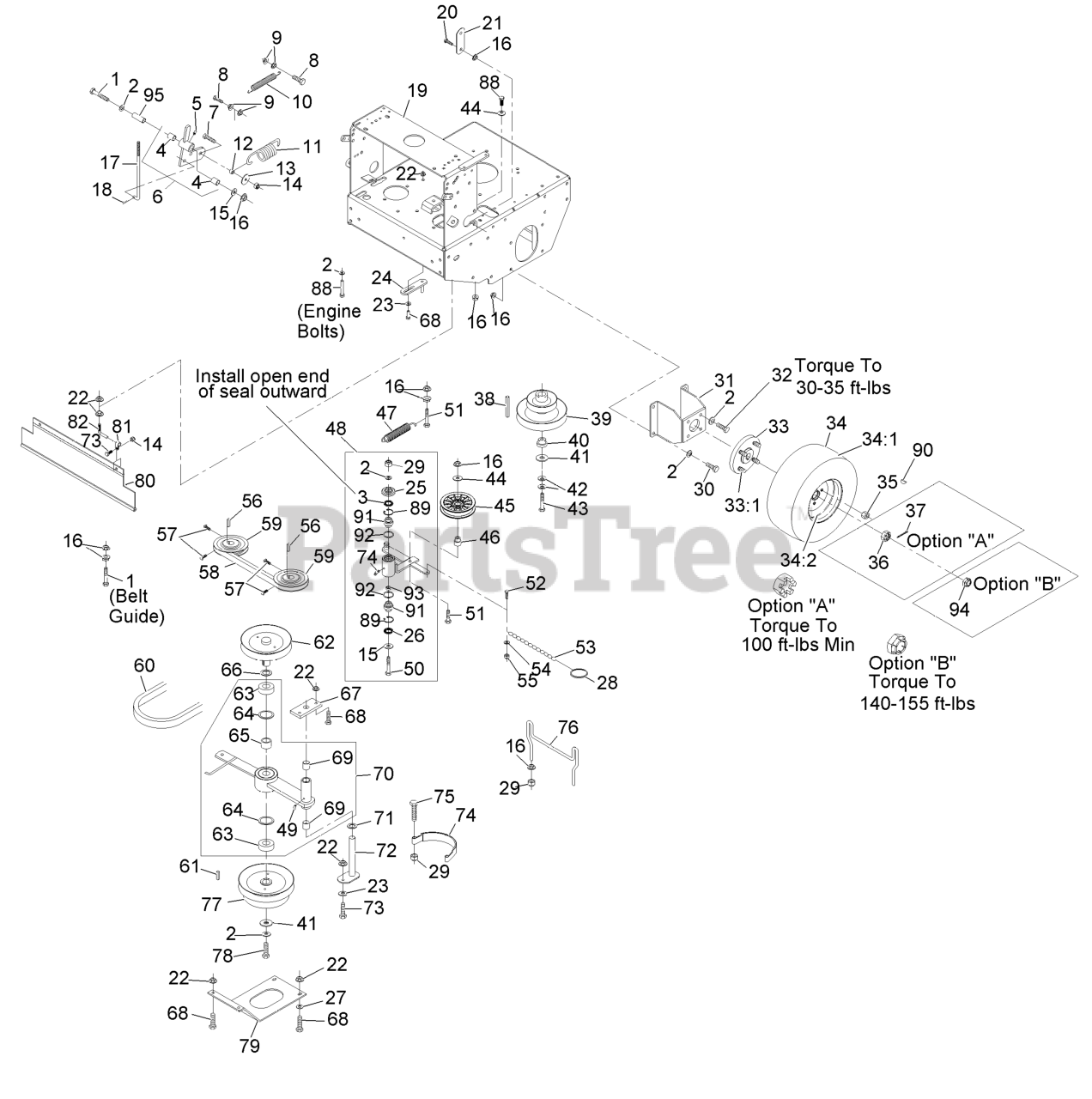

TTS16KA363CA - Exmark 36" Turf Tracer S-Series Walk-Behind Mower, 16hp Kaw, CARB (SN: 920000 - 999999) (2011) Engine Deck Assembly Parts Diagram

Engine Deck Assembly Parts Diagram
