TTH-18KO - Exmark Turf Tracer Walk-Behind Mower, 18hp Kohler (SN: 080000 - 089999) (1993) Camshaft & Valves 2 Parts Diagram

Turf Tracer Walk-Behind Mower, 18hp Kohler

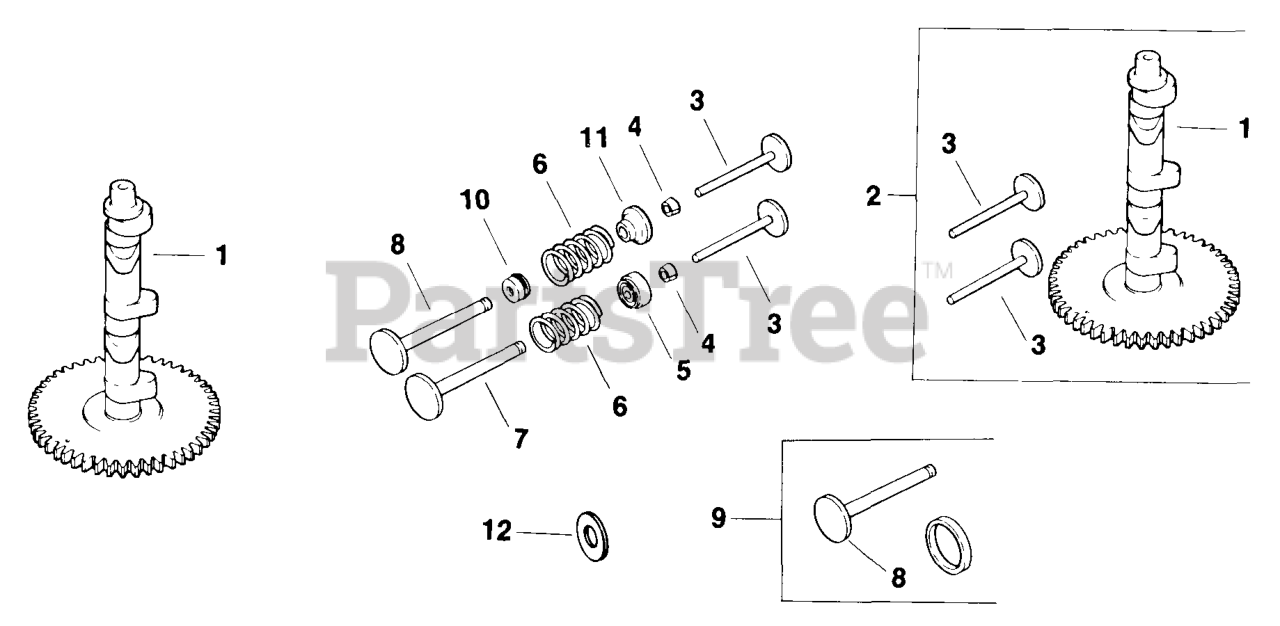

Camshaft & Valves 2 Parts Diagram

  • Title

1

Exmark 5201209-S

Camshaft

Note: After Serial No. 1917809286

$

$

Currently unavailable

2

Exmark 8275513-S

Kit, Camshaft

Note: Includes 3; Before Serial No. 1917809296.

$

$

Currently unavailable

3

Exmark 5201903-S

Tappet

Note: After Serial No. 1917809286

$

$

Currently unavailable

4

Exmark 4175510-S

Kit, Retainer

$

$

Currently unavailable

5

Exmark 5241301-S

Rotator, Exhaust Valve

$

$

Currently unavailable

6

Exmark 2508901-S

Spring, Valve

$

$

Currently unavailable

7

Exmark 5201605-S

Valve, Exhaust

Note: After Serial No. 1917809286

$

$

Currently unavailable

8

Exmark 5201708-S

Valve, Intake

$

$

Currently unavailable

9

Exmark 8275511-S

Kit, Valve

Note: Includes valve 52-016-06; Before Serial No. 1917809296.

$

$

Currently unavailable

10

Exmark 5203213-S

Seal, Intake Valve Stem

$

$

Currently unavailable

11

Exmark 230011-S

Retainer, Intake Valve

$

$

Currently unavailable
