TTH-18KO - Exmark Turf Tracer Walk-Behind Mower, 18hp Kohler (SN: 080000 - 089999) (1993) Breather & Vent Parts Diagram

Turf Tracer Walk-Behind Mower, 18hp Kohler

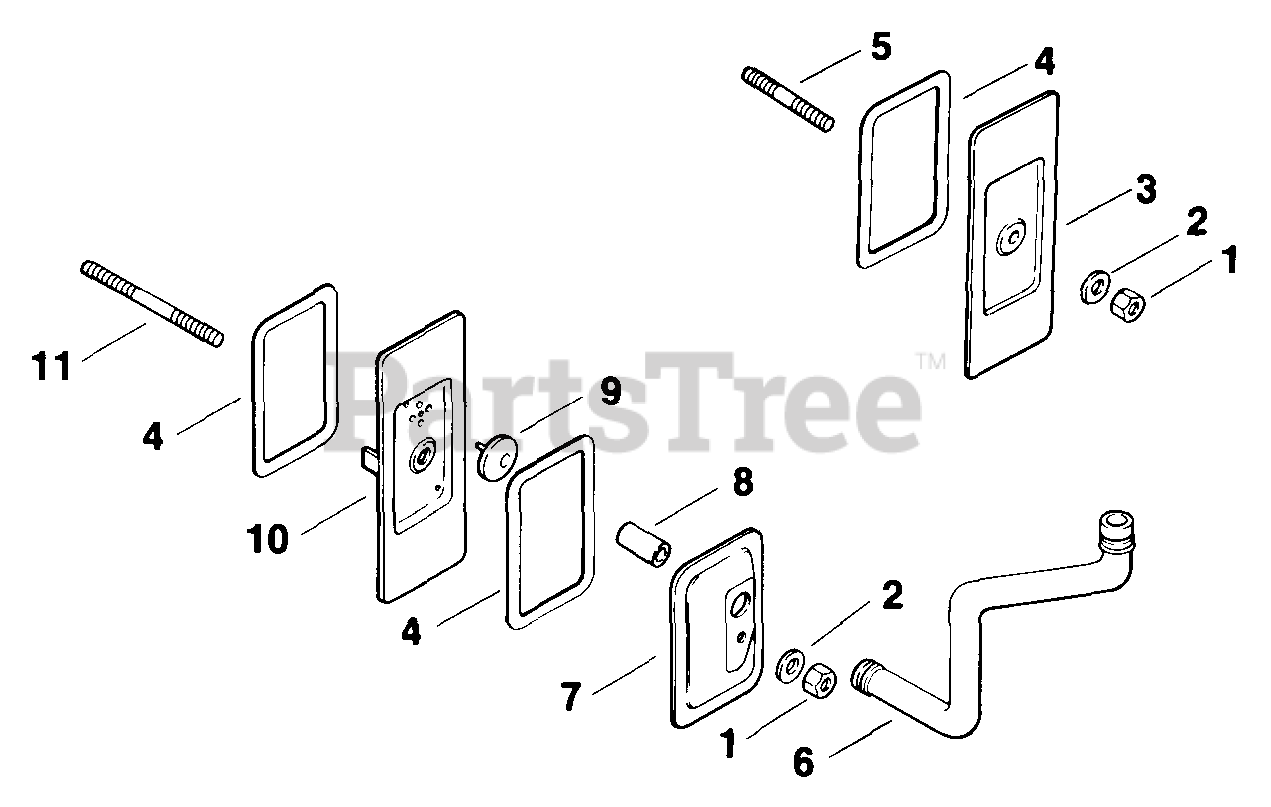

Breather & Vent Parts Diagram

  • Title

1

Exmark X-81-1-S

Nut, Hex. 1/4-20

$

$

Currently unavailable

2

Exmark X-25-12-S

Washer, Plain 1/4"

$

$

Currently unavailable

3

Exmark 5209618

Cover, #2 Cylinder Valve

$

$

Currently unavailable

4

Exmark 5205501-S

Gasket, Cover

$

$

Currently unavailable

5

Exmark X-352-39-S

Stud, #2 Cylinder Valve Cover 1/4-20x2-1/4"

$

$

Currently unavailable

6

Exmark 5232612-S

Hose, Breather

$

$

Currently unavailable

7

Exmark 5209608-S

Cover, #1 Upper Cylinder Valve

$

$

Currently unavailable

8

Exmark 5203204-S

Seal, Breather

$

$

Currently unavailable

9

Exmark 5246201

Valve, Umbrella

$

$

Currently unavailable

10

Exmark 5209622

Cover, #1 Lower Cylinder Valve

$

$

Currently unavailable

11

Exmark 275220-S

Stud, #1 Cylinder Valve Cover 1/4-20x3-1/4"

$

$

Currently unavailable
