Exmark TT4817KAEC - Exmark 48" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki (SN: 320000 - 369999) (2002) Engine Deck Group (Part 2) Parts Lookup with Diagrams

1

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

3

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

4

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

5

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, Qty 5

6

Exmark 1-413201-01

110-4897-01

(Superseded to 110-4897-01) 

$100.99

$

Usually ships in 3-6 days

7

Exmark 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

8

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

11

Exmark 3256-2

WASHER-FLAT

(Superseded to 3256-2) 

$0.99

$

In Stock, Qty 20+

12

Exmark 3290-357

NUT-HHF, WHIZ

Note: Models with Standard pistol grip handles only

$0.99

$

In Stock, Qty 20+

Exmark 3290-357

NUT-HHF, WHIZ

Note: Models with ECS handles only

$0.99

$

In Stock, Qty 20+

13

Exmark 1-323195-01

SPACER-SHIELD

$7.99

$

In Stock, only 2 left!

14

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

15

Exmark 1-323197-01

SPACER-SHIELD

$7.99

$

In Stock, Qty 16

16

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

17

Exmark 1-603807

SPRING-RETURN, NEUTRAL

Note: Models with Standard pistol grip handles only

$3.49

$

In Stock, Qty 17

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

Note: Models with ECS handles only

$5.49

$

In Stock, only 1 left!

18

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

19

Exmark 3219-2

NUT-HEX

$0.99

$

Usually ships in 3-6 days

20

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

21

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

23

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

24

Exmark 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 1 left!

25

Exmark 1-412203

1-412203-01

(Superseded to 1-412203-01) 

$153.99

$

Usually ships in 3-6 days

26

Exmark 1-413219

ROD-LEVER, DRIVE

Note: Models with Standard pistol grip handles only

$26.99

$

Usually ships in 3-6 days

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

28

Exmark 1-603676

126-8571

(Superseded to 126-8571) 

$5.49

$

In Stock, only 2 left!

29

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

30

Exmark 103-1235

SWIVEL-LEVER, DRIVE

Note: Models with Standard pistol grip handles only

$37.99

$

Usually ships in 3-6 days

31

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock nut type, P/N 1-840022 (.5 ml tube) on shoulder bolt & setscrew threads.

$2.99

$

In Stock, Qty 20+

32

Exmark 103-1190-01

SHAFT-CONTROL, LH

$172.99

$

Usually ships in 3-6 days

33

Exmark 103-1191-01

DISCONTINUED

$

Not available 

34

Exmark 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

35

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

36

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

37

Exmark 1-603903

SPACER

$5.49

$

In Stock, only 2 left!

38

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

39

Exmark 1-809056

SCREW-HSH

Note: Use Pro-Lock nut type, P/N 1-840022 (.5 ml tube) on shoulder bolt & setscrew threads.

$7.99

$

In Stock, only 2 left!

40

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

41

Exmark 1-413151

KNOB-TRACKING

$9.49

$

In Stock, Qty 5

42

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

43

Exmark 1-413252-01

DISCONTINUED

$

Not available 

44

Exmark 1-413254-01

BRACKET,SULKY RH

$

Not available 

45

Exmark 1-411255

Sulky Kit

$

Currently unavailable 

46

Exmark 1-413492

LINKAGE,UPPER- TTHP

$57.99

$

In Stock, only 3 left!

47

Exmark 323-23

SCREW-HH

Note: Manual start only

$5.49

$

In Stock, Qty 16

Exmark 323-16

SCREW-HH

Note: Electric start only

$3.49

$

In Stock, Qty 7

48

Exmark 3296-39

NUT-LOCK, NI

Note: Manual start only

$2.99

$

In Stock, Qty 20+

Exmark 3296-39

NUT-LOCK, NI

Note: Electric start only

$2.99

$

In Stock, Qty 20+

49

Exmark 103-1148

LINK,DRIVE (PLTD)

Note: Models with ECS handles only

$18.99

$

In Stock, only 3 left!

50

Exmark 323-8

SCREW-HH

Note: Models with ECS handles only

$1.49

$

In Stock, Qty 20+

51

Exmark 103-1167

JOINT-BALL END, LH

Note: Models with ECS handles only

$31.99

$

In Stock, Qty 10

52

Exmark 103-1166

SPACER-TUBE, PUMP LINK

Note: Models with ECS handles only

$6.49

$

In Stock, only 3 left!

53

Exmark 3220-16

NUT-HEX JAM, LH

Note: Models with ECS handles only

$1.99

$

In Stock, Qty 5

54

Exmark 323-16

SCREW-HH

Note: Manual start only

$3.49

$

In Stock, Qty 7

Exmark 323-23

SCREW-HH

Note: Electric start only

$5.49

$

In Stock, Qty 16

55

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

56

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

57

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

58

Exmark 1-412501-03

116-1725-03

(Superseded to 116-1725-03) 

$25.99

$

Usually ships in 3-6 days

59

Exmark 1-414504

BRACKET ASM

$87.99

$

Usually ships in 3-6 days

60

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

61

Exmark 1-413344

BUSHING-PIVOT

$19.99

$

In Stock, only 2 left!

62

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

63

Exmark 1-414508

BELLCRANK ASM

$60.99

$

Usually ships in 3-6 days

64

Exmark 1-303548

BUSHING-PLASTIC

$5.49

$

In Stock, only 2 left!

65

Exmark 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

66

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

67

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

68

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

69

Exmark 1-413489

LINKAGE-LOWER

$22.99

$

In Stock, only 1 left!

70

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

71

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

72

Exmark 103-2085-03

126-1599

(Superseded to 126-1599) 

$169.99

$

Usually ships in 3-6 days

Exmark 103-2004-03

116-9964

(Superseded to 116-9964) 

$169.99

$

Usually ships in 3-6 days

73

Exmark 103-1965

VALVE-DRAIN, OIL

$55.99

$

In Stock, only 1 left!

74

Exmark 103-1966

ADAPTER

$18.99

$

In Stock, only 1 left!

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

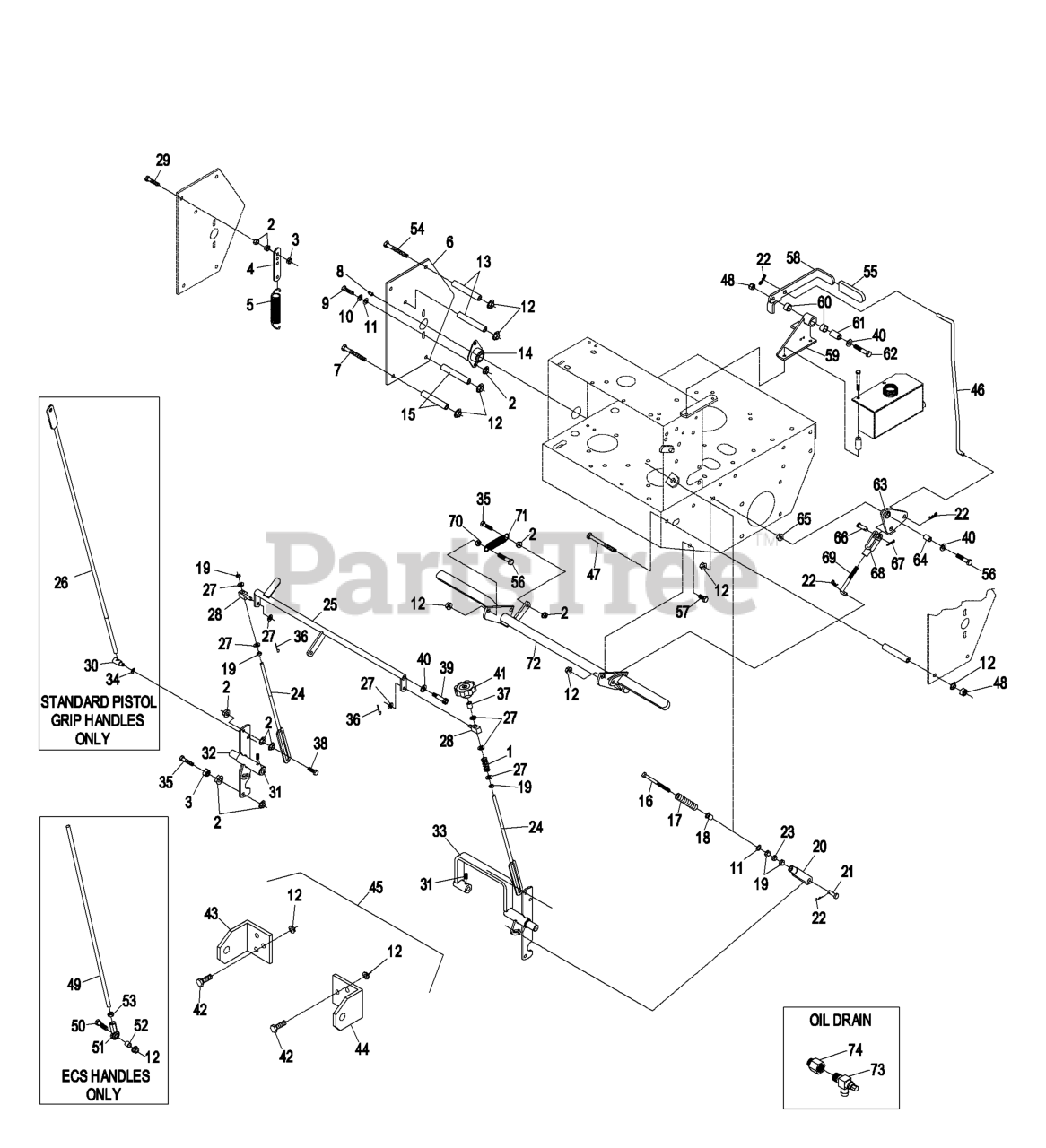

TT4817KAEC - Exmark 48" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki (SN: 320000 - 369999) (2002) Engine Deck Group (Part 2) Parts Diagram

Engine Deck Group (Part 2) Parts Diagram
