TT4817KAEC - Exmark 48" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki (SN: 260000 - 319999) (2001) Engine Deck Group (Cont.) Parts Diagram

48" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki

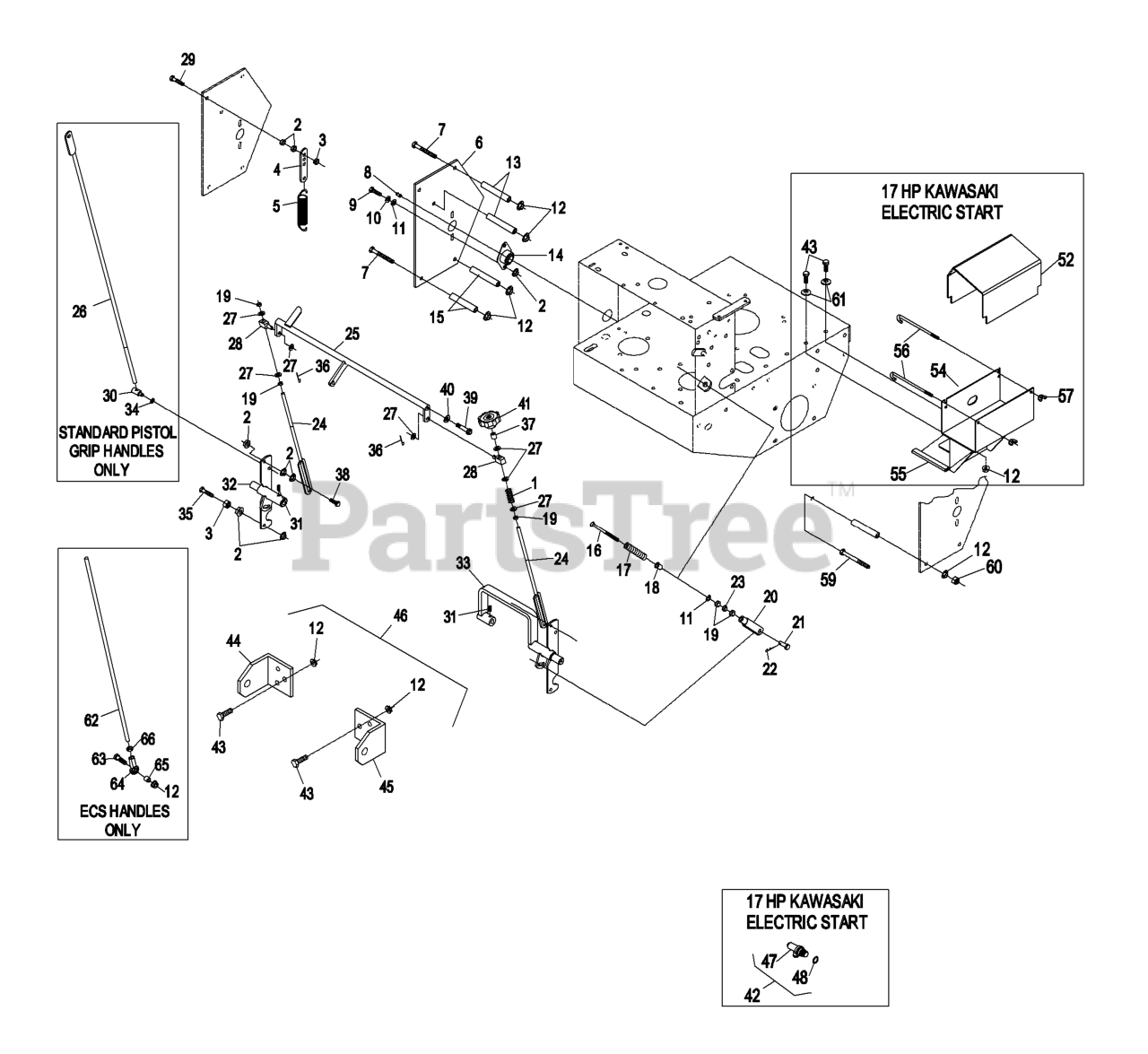

Engine Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

4

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

5

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, Qty 5

0

6

Exmark 1-413201-01

110-4897-01
(Superseded to 110-4897-01)

$100.99

$

Usually ships in 3-6 days

0

7

Exmark 323-16

SCREW-HH

Note: Manual start only

$3.49

$

In Stock, Qty 7

0

Exmark 323-16

SCREW-HH

Note: Electric start only

$3.49

$

In Stock, Qty 7

0

8

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

11

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3290-357

NUT-HHF, WHIZ

Note: Models with Standard pistol grip handles only

$0.99

$

In Stock, Qty 20+

0

Exmark 3290-357

NUT-HHF, WHIZ

Note: Models with ECS handles only

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-323195-01

SPACER-SHIELD

$7.99

$

In Stock, only 2 left!

0

14

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

15

Exmark 1-323197-01

SPACER-SHIELD

$7.99

$

In Stock, Qty 16

0

16

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

17

Exmark 1-603807

SPRING-RETURN, NEUTRAL

Note: Models with Standard pistol grip handles only

$3.49

$

In Stock, Qty 17

0

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

Note: Models with ECS handles only

$5.49

$

In Stock, only 1 left!

0

18

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

19

Exmark 3219-2

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

21

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-413350

LINK-CONTROL, SPEED

$15.99

$

In Stock, only 1 left!

0

25

Exmark 1-412203

1-412203-01
(Superseded to 1-412203-01)

$153.99

$

Usually ships in 3-6 days

0

26

Exmark 1-413219

ROD-LEVER, DRIVE

Note: Models with Standard pistol grip handles only

$26.99

$

Usually ships in 3-6 days

0

27

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

29

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

30

Exmark 103-1235

SWIVEL-LEVER, DRIVE

Note: There are two swivel combinations available on the unit. Measure the diameter of the drive lever swivel shaft as shown to determine which components are required. Models with Standard pistol grip handles only

$37.99

$

Usually ships in 3-6 days

0

Exmark 1-413227

DISCONTINUED

$

$

Not available

31

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock nut type, Part No. 1-840022 (.5 ml tube) on shoulder bolt & setscrew threads.

$2.99

$

In Stock, Qty 20+

0

32

Exmark 103-1190-01

SHAFT-CONTROL, LH

Note: Models with ECS handles only

$172.99

$

Usually ships in 3-6 days

0

Exmark 103-1190-01

SHAFT-CONTROL, LH

Note: Models with standard pistol grip handles only. There are two swivel combinations available on the unit. Measure the diameter of the drive lever swivel shaft as shown to determine which components are required

$172.99

$

Usually ships in 3-6 days

0

Exmark 1-402110

1-401004
(Superseded to 1-401004)

Note: Models with standard pistol grip handles only. There are two swivel combinations available on the unit. Measure the diameter of the drive lever swivel shaft as shown to determine which components are required

$

$

Not available

33

Exmark 103-1191-01

DISCONTINUED

Note: Models with ECS handles only

$

$

Not available

Exmark 103-1191-01

DISCONTINUED

Note: Models with standard pistol grip handles only. There are two swivel combinations available on the unit. Measure the diameter of the drive lever swivel shaft as shown to determine which components are required

$

$

Not available

Exmark 1-402111

1-401005
(Superseded to 1-401005)

Note: Models with standard pistol grip handles only. There are two swivel combinations available on the unit. Measure the diameter of the drive lever swivel shaft as shown to determine which components are required

$187.99

$

Usually ships in 3-6 days

0

34

Exmark 32151-47

RING-RETAINING

Note: There are two swivel combinations available on the unit. Measure the diameter of the drive lever swivel shaft as shown to determine which components are required. Models with standard pistol grip handles only

$2.99

$

In Stock, only 3 left!

0

Exmark 32151-73

RING-CLIP

$2.99

$

In Stock, Qty 6

0

35

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

36

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

37

Exmark 1-603903

SPACER

$5.49

$

In Stock, only 2 left!

0

38

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-809056

SCREW-HSH

Note: Use Pro-Lock nut type, Part No. 1-840022 (.5 ml tube) on shoulder bolt & setscrew threads

$7.99

$

In Stock, only 2 left!

0

40

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-413151

KNOB-TRACKING

$9.49

$

In Stock, Qty 5

0

42

Exmark 1-414507

KIT, OIL DRAIN VALVE

$

$

Not available

43

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

44

Exmark 1-413252-01

DISCONTINUED

$

$

Not available

45

Exmark 1-413254-01

BRACKET,SULKY RH

$

$

Not available

46

Exmark 1-411255

Sulky Kit

$

$

Currently unavailable

47

Exmark 1-413505

1-414507
(Superseded to 1-414507)

Note: Electric start only

$

$

Not available

48

Exmark 1-413506

100-2690
(Superseded to 100-2690)

Note: Electric start only

$6.49

$

Usually ships in 3-6 days

0

49

Exmark 32128-33

NUT-HF

Note: Electric start only

$0.99

$

In Stock, Qty 6

0

50

Exmark 1-543390

INSULATOR, BATTERY -

Note: Electric start only

$7.49

$

Usually ships in 3-6 days

0

51

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

Note: Electric start only

$12.99

$

Usually ships in 3-6 days

0

52

Exmark 1-543891

103-3442
(Superseded to 103-3442)

Note: Electric start only

$76.99

$

In Stock, only 4 left!

0

53

Exmark 103-0293

DISCONTINUED (EXMARK)

Note: Electric start only

$

$

Not available

54

Exmark 103-1097

KIT,BATTERY STAND-TTHP ES

Note: Electric start only

$

$

Not available

Exmark 103-1098

ASM,BATTERY STAND W/TRIM

$181.99

$

Usually ships in 3-6 days

0

55

Exmark 1-413541

TRIM-LOK

Note: Electric start only

$4.99

$

Usually ships in 3-6 days

0

56

Exmark 1-543882

BOLT - HOLD DOWN

Note: Electric start only

$16.99

$

In Stock, only 4 left!

0

57

Exmark 1-543792

WINGNUT

Note: Electric start only

$6.49

$

In Stock, Qty 14

0

58

Exmark 321-4

SCREW-HH

Note: Electric start only

$1.49

$

In Stock, Qty 20+

0

59

Exmark 323-23

SCREW-HH

Note: Manual start only

$5.49

$

In Stock, Qty 16

0

Exmark 323-16

SCREW-HH

Note: Electric start only

$3.49

$

In Stock, Qty 7

0

60

Exmark 3296-39

NUT-LOCK, NI

Note: Manual start only

$2.99

$

In Stock, Qty 20+

0

61

Exmark 98-3975

Washer, Disc Spring 3/8

$

$

Currently unavailable

62

Exmark 103-1148

LINK,DRIVE (PLTD)

Note: Models with ECS handles only

$18.99

$

In Stock, only 3 left!

0

63

Exmark 323-8

SCREW-HH

Note: Models with ECS handles only

$1.49

$

In Stock, Qty 20+

0

64

Exmark 103-1167

JOINT-BALL END, LH

Note: Models with ECS handles only

$31.99

$

In Stock, Qty 10

0

65

Exmark 103-1166

SPACER-TUBE, PUMP LINK

Note: Models with ECS handles only

$6.49

$

In Stock, only 3 left!

0

66

Exmark 3220-16

NUT-HEX JAM, LH

Note: Models with ECS handles only

$1.99

$

In Stock, Qty 5

0
