TT4817KAE - Exmark 48" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki (SN: 220000 - 259999) (2000) Electrical Group (Manual Start) Parts Diagram

48" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki

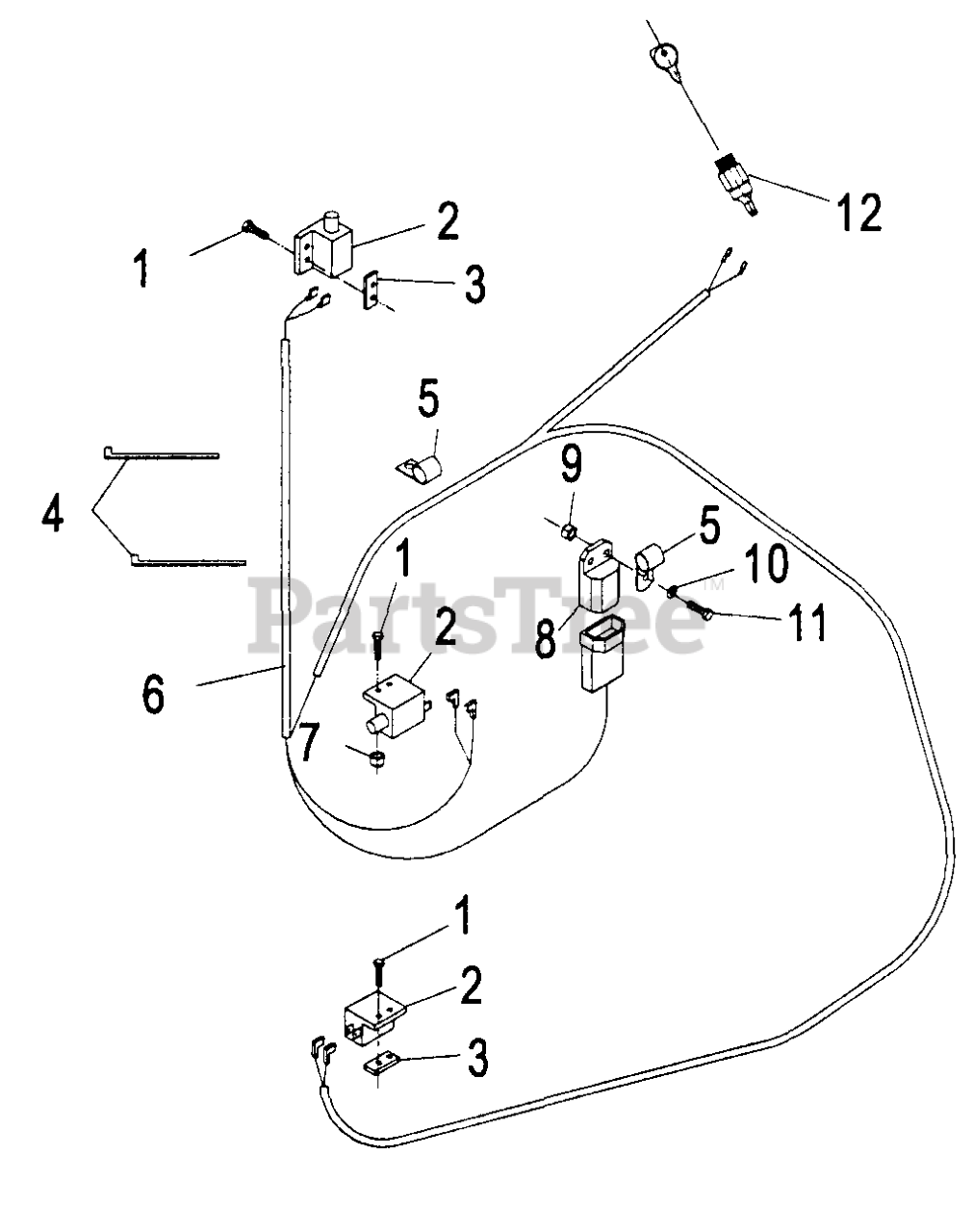

Electrical Group (Manual Start) Parts Diagram

  • Title

1

Exmark 1-803028

3290-500
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

3

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

4

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 1-413208

HARNESS,WIRING KOHLER TT

Note: (Koh); Use dielectric grease on all electrical connectors.

$113.99

$

Usually ships in 3-6 days

0

Exmark 1-413453

103-1181
(Superseded to 103-1181)

Note: (17 & 15 Kaw)

$75.99

$

In Stock, only 1 left!

0

7

Exmark 1-804002

NUT-SQH

$

$

Not available

8

Exmark 1-323430

MODULE-INTERLOCK

$135.99

$

In Stock, only 1 left!

0

9

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

Note: (17 & 15 Kaw)

$21.99

$

In Stock, only 3 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0
