TT4817KAC - Exmark 48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki (SN: 540000 - 599999) (2005) Mower Deck 48" Parts Diagram

48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki

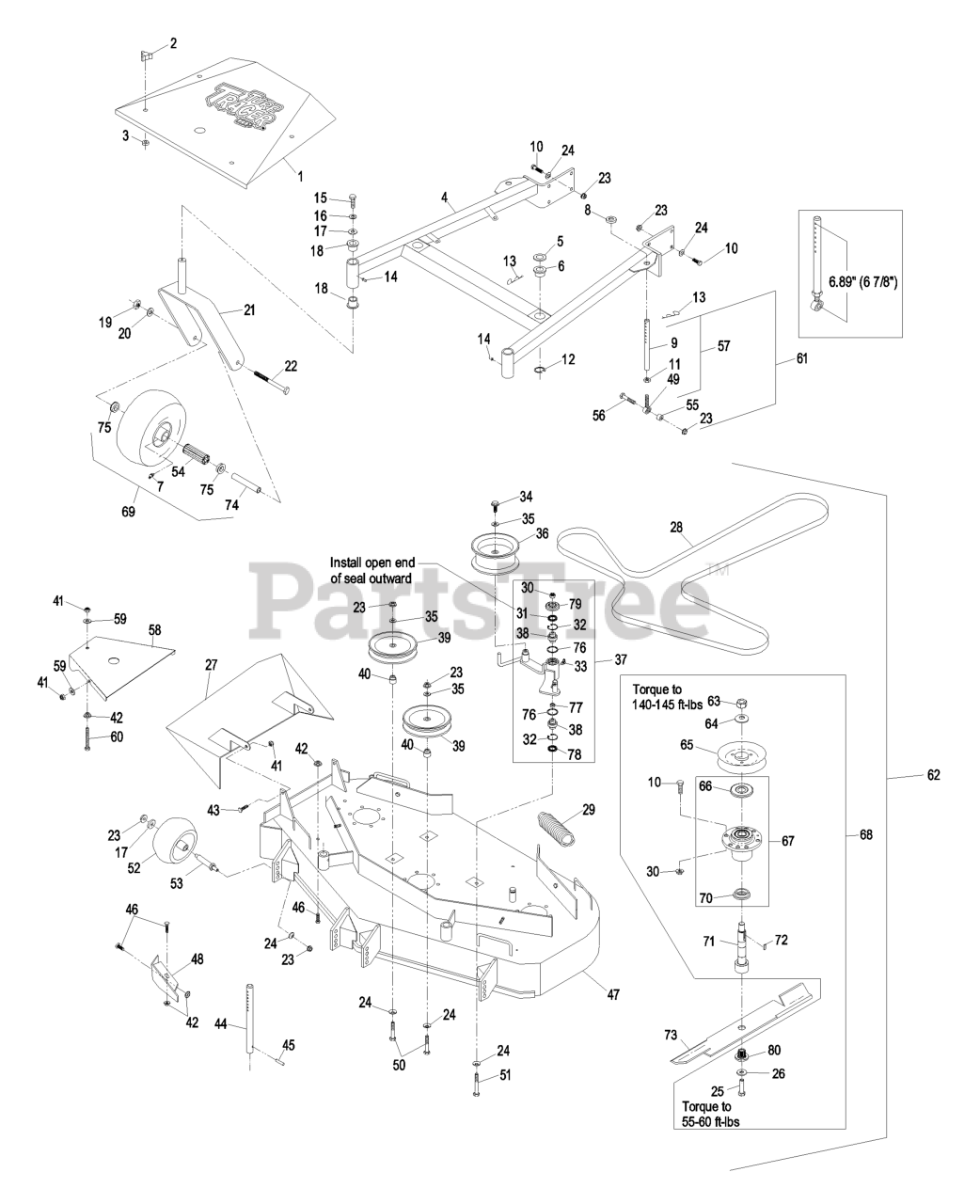

Mower Deck 48" Parts Diagram

  • Title

1

Exmark 1-414387

116-2711
(Superseded to 116-2711)

$366.99

$

In Stock, only 1 left!

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-414310

DECK SUPPORT W/BSHGS 48"

$1282.99

$

Usually ships in 3-6 days

0

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 20+

0

6

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 20+

0

7

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

8

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-413525

LINK,SUPPORT

$49.99

$

In Stock, only 2 left!

0

10

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

12

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, Qty 20+

0

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

15

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 15

0

17

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

18

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

0

19

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$95.99

$

In Stock, Qty 20+

0

22

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

23

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 3213-5

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

27

Exmark 103-2431-01

WLD,DISCHARGE CHUTE 36/48

$161.99

$

In Stock, only 1 left!

0

28

Exmark 1-413093

BELT - V, B

$143.99

$

In Stock, only 1 left!

0

29

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 20+

0

30

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 20+

0

32

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

33

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

34

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

35

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 18

0

37

Exmark 103-8585

KIT, DECK IDLER TTHP48&52

Note: Idler arm kit also includes items 24 & 51.

$200.99

$

In Stock, only 1 left!

0

38

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

39

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 20+

0

40

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, Qty 20+

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-603001

ROD,DECK SUPPORT

$50.99

$

In Stock, only 3 left!

0

45

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

46

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

47

Exmark 1-414384

ASM,DECK W/DECALS TTHP/MH

$2743.99

$

Usually ships in 3-6 days

0

48

Exmark 1-522480-01

116-2297-01
(Superseded to 116-2297-01)

$32.99

$

In Stock, only 1 left!

0

49

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 8

0

50

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

51

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

52

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-4051 includes antiscalp roller, spacer, & mounting hardware.

$23.99

$

In Stock, Qty 20+

0

53

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 20+

0

54

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 20+

0

55

Exmark 1-603050

SPACER

$7.49

$

In Stock, only 2 left!

0

56

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Link assembly nominal length is 6.89" (or approximately 6 7/8") between center of ball joint and center of furthest hole. See diagram. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of mower deck

$154.99

$

In Stock, only 3 left!

0

58

Exmark 103-2970-01

SHIELD,BELT

$37.99

$

In Stock, only 3 left!

0

59

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

60

Exmark 1-800017

BOLT,TAP HH

$7.49

$

In Stock, only 2 left!

0

61

Exmark 1-611216

1-411532
(Superseded to 1-411532)

$154.99

$

In Stock, only 3 left!

0

62

Exmark 103-0321

Asm, Deck Complete

$

$

Currently unavailable

63

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut Item 63.

$12.99

$

In Stock, Qty 10

0

64

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

65

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antiseize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based antiseize.

$75.99

$

In Stock, Qty 8

0

66

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antiseize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based antiseize.

$5.49

$

In Stock, Qty 12

0

67

Exmark 103-8280

KIT, CUTTER HOUSING

$266.99

$

In Stock, only 4 left!

0

68

Exmark 103-9081

ASM, CUTTER HSG

$460.99

$

In Stock, only 1 left!

0

69

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$129.99

$

In Stock, only 4 left!

0

70

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 2 left!

0

71

Exmark 103-9071

KIT, SPLINED SPINDLE 103-

Note: Kit includes items 25, 26, 63, 64, 72 & 80. Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antiseize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based antiseize.

$231.99

$

In Stock, only 3 left!

0

72

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 13

0

73

Exmark 103-6401

103-6401-S
(Superseded to 103-6401-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6391

103-6391-S
(Superseded to 103-6391-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK483Q(48").

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6386

103-6386-S
(Superseded to 103-6386-S)

$30.99

$

In Stock, Qty 20+

0

Exmark 103-6381

103-6381-S
(Superseded to 103-6381-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6396

116-5177-S
(Superseded to 116-5177-S)

$31.99

$

In Stock, Qty 20+

0

74

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 20+

0

75

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 20+

0

76

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

77

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 13

0

78

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

79

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

0

80

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$33.99

$

In Stock, Qty 16

0

Exmark 103-9140

PAINT, TOUCH UP

$22.99

$

In Stock, only 1 left!

0

Exmark MK483Q

MK483Q

$704.99

$

Usually ships in 3-6 days

0

Exmark 103-5217

PACK,LUBE MOBIL HTS GREAS

$9.49

$

In Stock, only 1 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$20.99

$

Usually ships in 3-6 days

0
