TT4817KAC - Exmark 48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki (SN: 320000 - 369999) (2002) ECS Upper Handles And Controls Parts Diagram

48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki

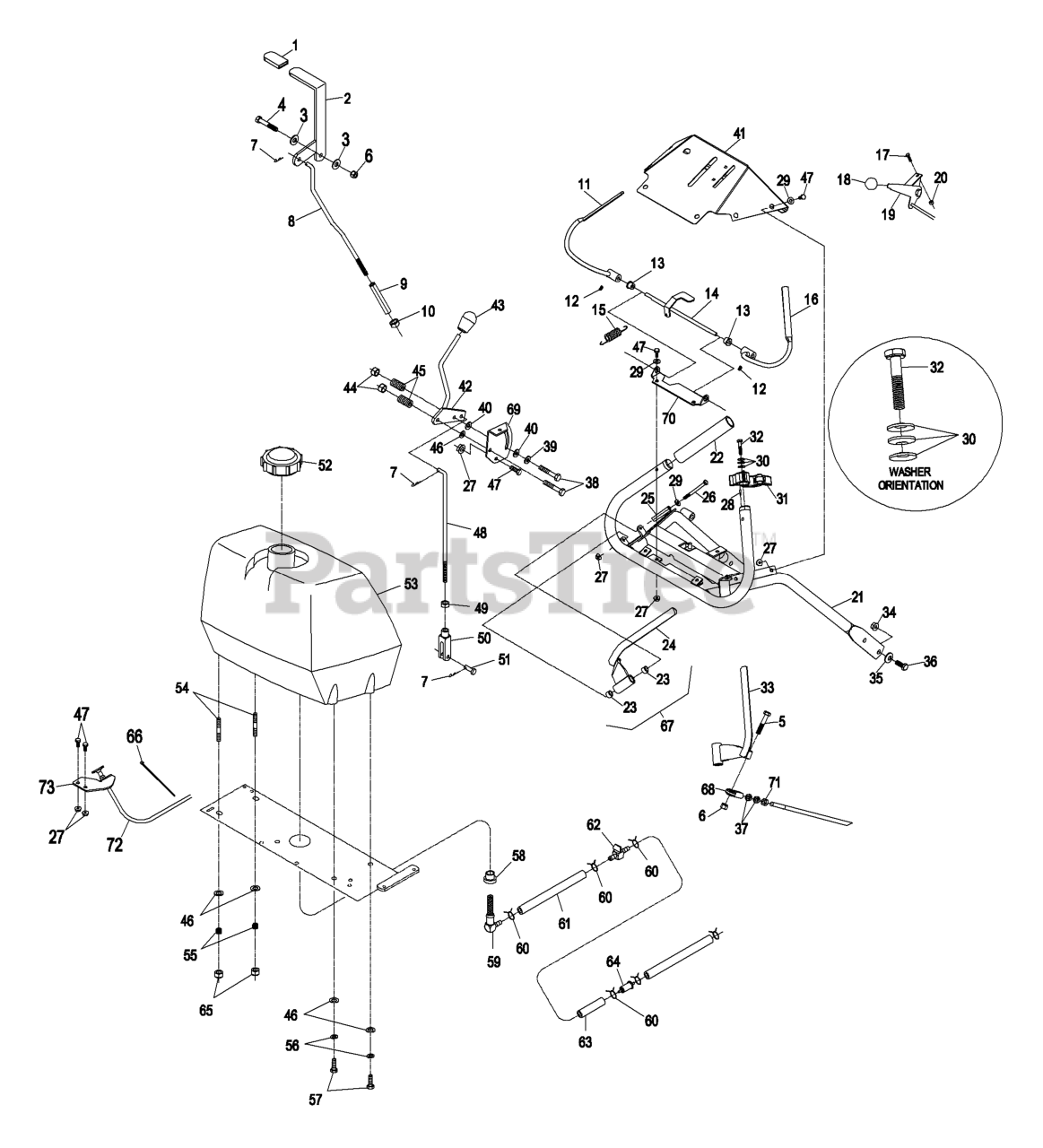

ECS Upper Handles And Controls Parts Diagram

  • Title

1

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

2

Exmark 1-414234

116-6334
(Superseded to 116-6334)

$65.99

$

In Stock, only 3 left!

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-1149

LINK,BLADE ENGAGE (PLTD)

$27.99

$

In Stock, only 4 left!

0

9

Exmark 1-413279

TURNBUCKLE

$50.99

$

In Stock, only 1 left!

0

10

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

11

Exmark 103-1566-03

116-4079
(Superseded to 116-4079)

Note: Use Pro-Lock retaining type, P/N 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

$37.99

$

In Stock, Qty 20+

0

12

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, P/N 1-840022 (.5cc tube) on setscrew threads and on shifter knob threads.

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$47.99

$

In Stock, Qty 20+

0

15

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, Qty 11

0

16

Exmark 103-1567-03

116-4080
(Superseded to 116-4080)

Note: Use Pro-Lock retaining type, P/N 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

$37.99

$

In Stock, Qty 19

0

17

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

18

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 18

0

19

Exmark 1-633696

THROTTLE CABLE ASM

$62.99

$

In Stock, only 1 left!

0

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$674.99

$

Usually ships in 3-6 days

0

22

Exmark 103-0815

GRIP-BAR, HANDLE

$12.99

$

In Stock, Qty 9

0

23

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

24

Exmark 103-0771-03

103-2482
(Superseded to 103-2482)

$174.99

$

Usually ships in 3-6 days

0

25

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

0

26

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

27

Exmark 32128-33

NUT-HF

Note: Electric start only

$0.99

$

In Stock, Qty 20+

0

Exmark 32128-33

NUT-HF

Note: Manual start only

$0.99

$

In Stock, Qty 20+

0

28

Exmark 103-0464

126-2925
(Superseded to 126-2925)

$1.49

$

In Stock, only 2 left!

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-1371

ASM,LATCH RH THUMB

Note: (Shown)

$32.99

$

In Stock, Qty 5

0

Exmark 103-1372

ASM,LATCH LH THUMB

$32.99

$

In Stock, only 1 left!

0

32

Exmark 103-0235

SCREW-HH

$1.49

$

In Stock, Qty 19

0

33

Exmark 103-0772-03

103-2481
(Superseded to 103-2481)

$174.99

$

Usually ships in 3-6 days

0

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

36

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

37

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

38

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

0

40

Exmark 1-323244

WASHER-FRICTION
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 14

0

41

Exmark 103-0546-03

103-2458
(Superseded to 103-2458)

$

$

Not available

Exmark 103-2457

ASM,CONSOLE W/DECALS

Note: Electric start only

$274.99

$

Usually ships in 3-6 days

0

Exmark 103-2458

ASM,CONSOLE W/DECALS

Note: Manual start only

$

$

Not available

42

Exmark 103-0773

116-8632
(Superseded to 116-8632)

$69.99

$

In Stock, only 1 left!

0

43

Exmark 103-0423

KNOB, FE.LCKG. BLACK

$26.99

$

Usually ships in 3-6 days

0

44

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, Qty 12

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 321-3

SCREW-HH

Note: Electric start only

$1.49

$

In Stock, Qty 20+

0

Exmark 321-3

SCREW-HH

Note: Manual start only

$1.49

$

In Stock, Qty 20+

0

48

Exmark 1-413225

ROD,SPEED CONTROL

$16.99

$

In Stock, Qty 5

0

49

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

51

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

52

Exmark 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

53

Exmark 1-413179

109-6930
(Superseded to 109-6930)

$

$

Not available

54

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, P/N 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs.

$6.49

$

In Stock, only 2 left!

0

55

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

0

56

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

57

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

58

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

59

Exmark 1-543277

ELBOW-TANK, FUEL

$12.99

$

In Stock, Qty 6

0

60

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

0

61

Exmark 1-603955

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

62

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

63

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

64

Exmark 41019-1055

Filter W/6" Fuel Line

Note: Kawasaki PN

$

$

Currently unavailable

65

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

66

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

67

Exmark 103-1915

103-2481
(Superseded to 103-2481)

$174.99

$

Usually ships in 3-6 days

0

Exmark 103-1916

103-2482
(Superseded to 103-2482)

$174.99

$

Usually ships in 3-6 days

0

68

Exmark 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

69

Exmark 103-0503

BRACKET,SHIFTER SLIDE (PL

$15.99

$

Usually ships in 3-6 days

0

70

Exmark 103-0489-03

BRACKET,OPC AXLE

$25.99

$

In Stock, Qty 6

0

71

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

72

Exmark 103-1796

CABLE-CHOKE

$44.99

$

In Stock, Qty 6

0

73

Exmark 103-1797-03

Bracket, Choke Cable

$

$

Currently unavailable
