TT3615KAC - Exmark 36" Turf Tracer HP Walk-Behind Mower, 15hp Kawasaki (SN: 510000 - 539999) (2005) Mower Deck 52" Parts Diagram

36" Turf Tracer HP Walk-Behind Mower, 15hp Kawasaki

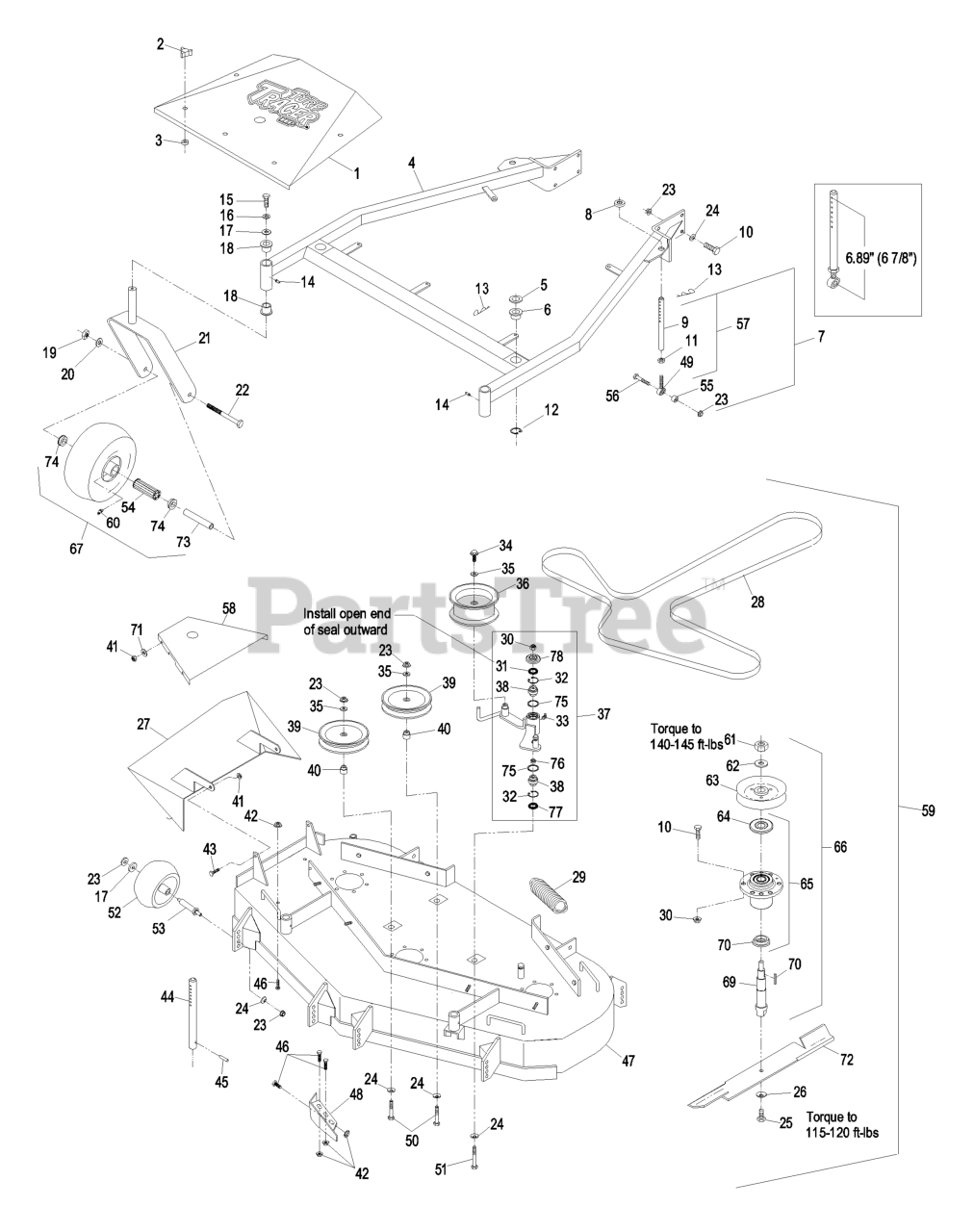

Mower Deck 52" Parts Diagram

  • Title

1

Exmark 1-414388

116-2712
(Superseded to 116-2712)

$397.99

$

Usually ships in 3-6 days

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-414311

SUPPORT,DECK W/BUSHINGS

$1166.99

$

Usually ships in 3-6 days

0

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

0

6

Exmark 1-513336

BUSHING-DECK

$25.99

$

In Stock, Qty 7

0

7

Exmark 1-611216

1-411532
(Superseded to 1-411532)

$147.99

$

In Stock, Qty 5

0

8

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

0

10

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

12

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

0

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

15

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 19

0

17

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

18

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 13

0

19

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

20

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

21

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$90.99

$

In Stock, Qty 7

0

22

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

23

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

25

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 13

0

26

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

27

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$181.99

$

Usually ships in 3-6 days

0

28

Exmark 1-413308

BELT,DECK DRIVE

$143.99

$

In Stock, only 2 left!

0

29

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 9

0

30

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

31

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

32

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

33

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

34

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

35

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$67.99

$

In Stock, Qty 17

0

37

Exmark 103-8585

KIT, DECK IDLER TTHP48&52

Note: Idler arm kit also includes items 24 & 51.

$200.99

$

In Stock, only 1 left!

0

38

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

39

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 7

0

40

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 3 left!

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

0

45

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 7

0

46

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

47

Exmark 1-414385

ASM,DECK W/DECALS TTHP52

$3296.99

$

Usually ships in 3-6 days

0

48

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

49

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

0

50

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 5

0

51

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

52

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-4051 includes antiscalp roller, spacer, & mounting hardware.

$23.99

$

In Stock, Qty 16

0

53

Exmark 99-2842

126-2928
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

54

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

55

Exmark 1-603050

SPACER

$7.99

$

In Stock, only 3 left!

0

56

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

57

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Link assembly nominal length is 6.89" (or approximately 6 7/8") between center of ball joint and center of furthest hole. See "Mower Deck 52"". Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear of m

$147.99

$

In Stock, Qty 5

0

58

Exmark 103-2971-01

SHIELD,SIDE BELT 52

$70.99

$

In Stock, only 1 left!

0

59

Exmark 103-0322

Asm, Deck Complete

$

$

Currently unavailable

60

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

61

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on nut Item 61.

$12.99

$

In Stock, Qty 13

0

62

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 15

0

63

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$67.99

$

In Stock, Qty 8

0

64

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, only 2 left!

0

65

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 4 left!

0

66

Exmark 103-8282

ASM, CUTTER HSG

Note: Complete cutter housings also include items 25 & 26.

$505.99

$

In Stock, only 1 left!

0

67

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$126.99

$

In Stock, only 4 left!

0

68

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

69

Exmark 103-2788

SPINDLE,SHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$79.99

$

In Stock, Qty 9

0

70

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 15

0

71

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

72

Exmark 103-6584

103-6584-S
(Superseded to 103-6584-S)

$31.99

$

In Stock, Qty 5

0

Exmark 103-6582

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK523(52").

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6580

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

Exmark 103-6337

116-5176-S
(Superseded to 116-5176-S)

$30.99

$

In Stock, Qty 20+

0

73

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

74

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0

75

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

76

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

77

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

78

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0
