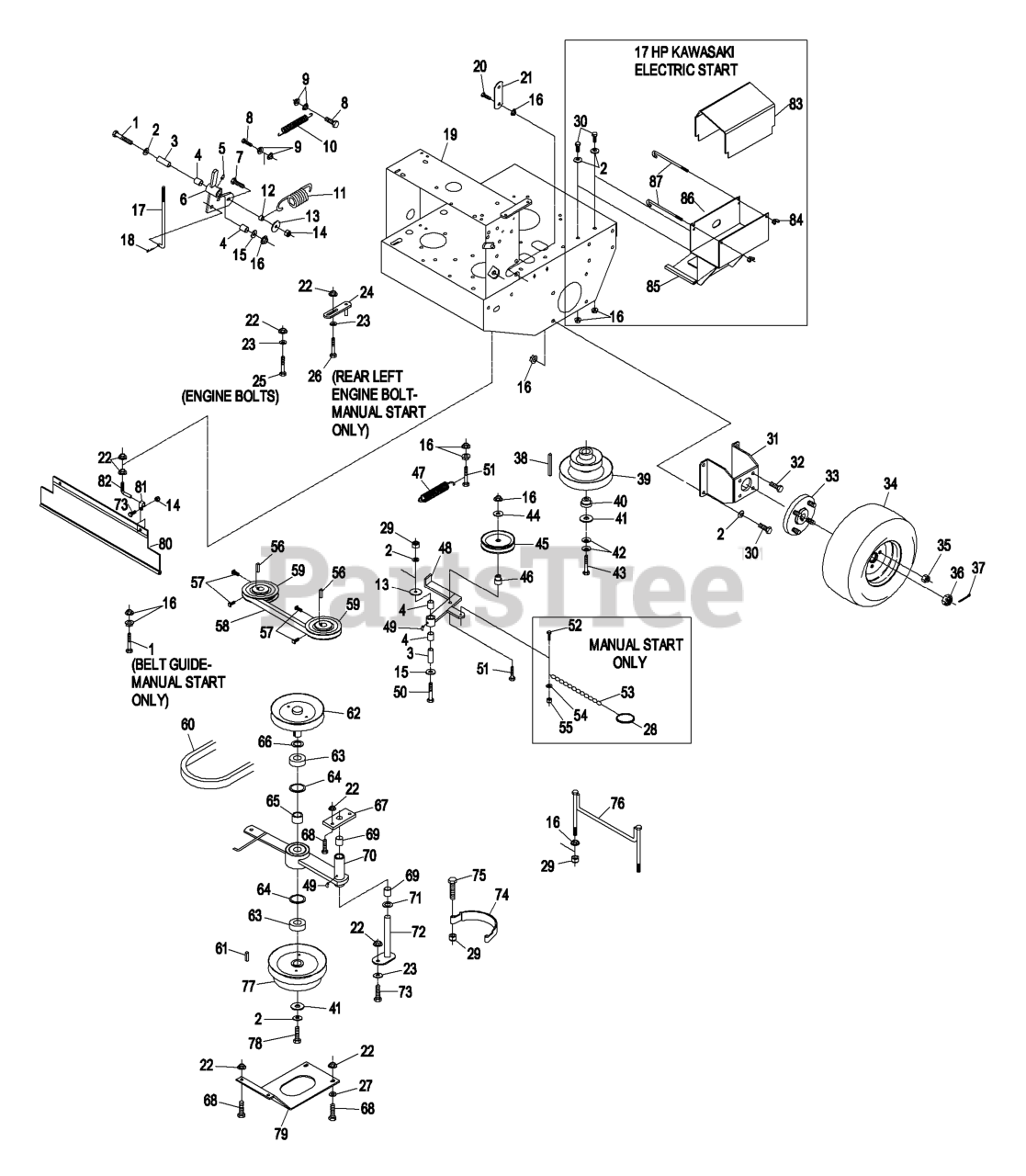

Exmark TT3615KAC - Exmark 36" Turf Tracer HP Walk-Behind Mower, 15hp Kawasaki (SN: 320000 - 369999) (2002) Engine Deck Group (Part 1) Parts Lookup with Diagrams

1

Exmark 323-11

SCREW-HH

Note: Manual start only

$2.49

$

In Stock, Qty 20+

Exmark 323-11

SCREW-HH

Note: Electric start only

$2.49

$

In Stock, Qty 20+

2

Exmark 98-5975

WASHER-BELLEVILLE

Note: Manual start only

$3.49

$

In Stock, Qty 20+

Exmark 98-5975

WASHER-BELLEVILLE

Note: Electric start only

$3.49

$

In Stock, Qty 20+

3

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

4

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

5

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

6

Exmark 1-412285-03

1-414143

(Superseded to 1-414143) 

$128.99

$

Usually ships in 3-6 days

Exmark 1-414143

ASM,PIVOT W/BUSHINGS

$128.99

$

Usually ships in 3-6 days

7

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

8

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

9

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

10

Exmark 1-523498

SPRING,EXTENSION

$9.99

$

In Stock, only 1 left!

11

Exmark 1-513113

SPRING,BELT TENSION

$19.99

$

In Stock, only 3 left!

12

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

13

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

14

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

15

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

16

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

17

Exmark 1-413282

LINKAGE,LOWER

$18.99

$

In Stock, only 2 left!

18

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

19

Exmark 1-412515-01

109-1297

(Superseded to 109-1297) 

$

Not available 

20

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

21

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

22

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

23

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

24

Exmark 1-322110

GUIDE-BELT

Note: Manual start only

$12.99

$

In Stock, Qty 8

25

Exmark 322-7

SCREW-HH

Note: Manual start only

$1.49

$

In Stock, Qty 20+

Exmark 322-7

SCREW-HH

Note: Electric start only

$1.49

$

In Stock, Qty 20+

26

Exmark 322-9

SCREW-HH

Note: Manual start only

$3.49

$

In Stock, only 3 left!

27

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

28

Exmark 1-323366

RING-SPLIT

Note: Manual start only

$6.49

$

In Stock, only 2 left!

29

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

30

Exmark 323-6

SCREW-HH

Note: Manual start only

$2.49

$

In Stock, Qty 20+

Exmark 323-6

SCREW-HH

Note: Electric start only

$2.49

$

In Stock, Qty 20+

31

Exmark 1-412080-01

WLD,MOTOR MOUNT 36

$123.99

$

In Stock, only 1 left!

Exmark 1-412082-01

WLD,MOTOR MOUNT 48&52

$127.99

$

Usually ships in 3-6 days

32

Exmark 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

33

Exmark 1-602997

112-9049

(Superseded to 112-9049) 

$188.99

$

Usually ships in 3-6 days

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

34

Exmark 1-413473

WHEEL AND TIRE ASM

$206.99

$

Usually ships in 3-6 days

Exmark 1-413474

TIRE-TURFMASTER

$134.99

$

Usually ships in 3-6 days

Exmark 1-613263

WHEEL AND TIRE ASM

$195.99

$

Usually ships in 3-6 days

Exmark 1-613264

TIRE-TURFMASTER

$152.99

$

Usually ships in 3-6 days

Exmark 1-603715

RIM-WHEEL

(Superseded to 107-2475) 

$77.99

$

In Stock, only 2 left!

35

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

36

Exmark 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

37

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

38

Exmark 1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.49

$

In Stock, Qty 7

39

Exmark 1-413004

SHEAVE,DRIVE

$220.99

$

In Stock, only 1 left!

40

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$28.99

$

In Stock, only 1 left!

41

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

42

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

43

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock (nut type P/N 1-840022, 5 ml tube): on setscrew threads, on sheave retaining bolt in engine crankshaft, on sheave retaining bolt on clutch arm.

$6.49

$

In Stock, only 1 left!

44

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

45

Exmark 1-603843

132-4718

(Superseded to 132-4718) 

$33.99

$

In Stock, Qty 16

46

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

47

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

48

Exmark 1-412136-03

Idler Arm Weldmt

$

Currently unavailable 

Exmark 1-414141

ASM,IDLER ARM W/BUSHINGS

$148.99

$

Usually ships in 3-6 days

49

Exmark 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

50

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

51

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

52

Exmark 1-809069

SCREW-HSH

Note: Manual start only

$2.99

$

Usually ships in 3-6 days

53

Exmark 1-323365

CHAIN-LINK, TWIST

Note: Manual start only

$17.99

$

In Stock, only 1 left!

54

Exmark 3256-14

WASHER-FLAT

Note: Manual start only

$0.99

$

In Stock, Qty 20+

55

Exmark 3296-2

NUT-LOCK, NI

Note: Manual start only

$2.49

$

In Stock, Qty 20+

56

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

57

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock (nut type P/N 1-840022, 5 ml tube): on setscrew threads, on sheave retaining bolt in engine crankshaft, on sheave retaining bolt on clutch arm.

$2.99

$

In Stock, Qty 8

58

Exmark 1-413095

109-1057

(Superseded to 109-1057) 

$37.99

$

In Stock, Qty 18

59

Exmark 1-413010

SHEAVE ASM

Note: Apply antiseize to: between engine crankshaft and pump and blade drive sheave, between sheave w/shaft and bearing bores and sheave w/drum, between pump shafts and sheaves.

$50.99

$

In Stock, only 2 left!

60

Exmark 1-413096

BELT,BLADE CLUTCH

(Superseded to 1-413096-SL) 

$46.99

$

In Stock, Qty 8

61

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

62

Exmark 1-412011

SHEAVE,6.13 W/SHAFT

Note: Apply antiseize to: between engine crankshaft and pump and blade drive sheave, between sheave w/shaft and bearing bores and sheave w/drum, between pump shafts and sheaves.

$169.99

$

Usually ships in 3-6 days

63

Exmark 1-413111

BEARING,CLUTCH SHAFT

Note: Apply antiseize to: between engine crankshaft and pump and blade drive sheave, between sheave w/shaft and bearing bores and sheave w/drum, between pump shafts and sheaves.

$42.99

$

In Stock, only 4 left!

64

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

65

Exmark 1-413012

SPACER,CLUTCH BEARING

$6.99

$

In Stock, Qty 5

66

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

67

Exmark 1-413049-01

PLATE-CLUTCH PIVOT

$40.99

$

In Stock, only 4 left!

68

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

69

Exmark 1-413207

SLEEVE,BEARING

$13.99

$

In Stock, Qty 7

70

Exmark 1-412417-03

Arm Weldmt, Clutch

$

Currently unavailable 

Exmark 1-414418

ASM,CLUTCH ARM W/BEARING

$413.99

$

Usually ships in 3-6 days

71

Exmark 1-413235

WASHER-SPACER

$1.49

$

In Stock, Qty 6

72

Exmark 1-412138-03

WLD,PIN PIVOT

$40.99

$

In Stock, Qty 17

73

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

74

Exmark 1-413062

BAND,BRAKE BLADE

$

Not available 

75

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

76

Exmark 1-412325

GUIDE - BELT

$

Not available 

77

Exmark 1-412031

SHEAVE,6.13 W/HUB

Note: Apply antiseize to: between engine crankshaft and pump and blade drive sheave, between sheave w/shaft and bearing bores and sheave w/drum, between pump shafts and sheaves.

$151.99

$

In Stock, only 1 left!

Exmark 1-412028

SHEAVE,6.75 W/DRUM

$

Not available 

78

Exmark 1-800521

SCRW,CAP HH

Note: Use Pro-Lock (nut type P/N 1-840022, 5 ml tube): on setscrew threads, on sheave retaining bolt in engine crankshaft, on sheave retaining bolt on clutch arm.

$1.49

$

In Stock, Qty 17
