TT23KCE - Exmark Turf Tracer Hydro Walk-Behind Mower, 23hp Kohler (SN: 600000 - 669999) (2006) Engine Deck Group Parts Diagram

Turf Tracer Hydro Walk-Behind Mower, 23hp Kohler

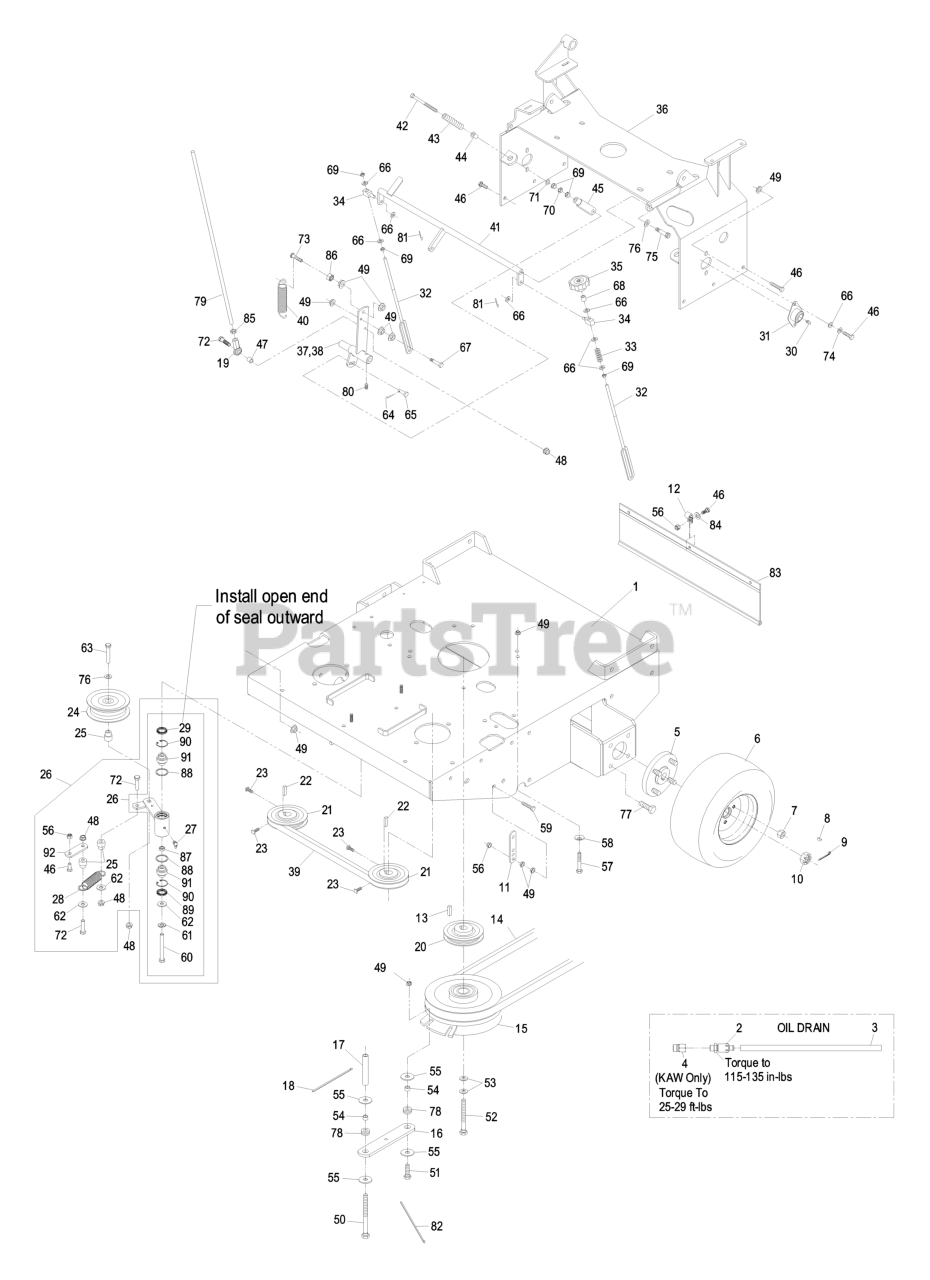

Engine Deck Group Parts Diagram

  • Title

1

Exmark 109-2581

Eng Deck 109-2579-01 W/ Decals

$

$

Currently unavailable

2

Exmark 92-6877

VALVE-DRAIN, OIL

Note: Use Teflon Pipe Sealant or equivalent on threads

$41.99

$

In Stock, only 1 left!

0

3

Exmark 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 1 left!

0

4

Exmark 103-1966

ADAPTER

Note: Use Teflon Pipe Sealant or equivalent on threads

$18.99

$

In Stock, only 1 left!

0

5

Exmark 1-602997

112-9049
(Superseded to 112-9049)

$188.99

$

Usually ships in 3-6 days

0

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

6

Exmark 103-1715

ASM, DRIVE TIRE

$372.99

$

Usually ships in 3-6 days

0

Exmark 103-2237

TIRE

$202.99

$

Usually ships in 3-6 days

0

Exmark 103-2238

WHEEL

$107.99

$

In Stock, only 1 left!

0

7

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

8

Exmark 1-807019

KEY-WOODRUFF

$18.99

$

In Stock, only 2 left!

0

9

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

10

Exmark 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

11

Exmark 1-613089

TAB-SPRING, EXTENSION

$10.99

$

In Stock, Qty 5

0

12

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

0

13

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

14

Exmark 103-2240

BELT,B 83.65
(Superseded to 103-2240-SL)

$58.99

$

In Stock, only 4 left!

0

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

15

Exmark 103-0662

CLUTCH ASM

$503.99

$

In Stock, only 1 left!

0

16

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

17

Exmark 1-323195-03

SPACER,SHIELD

$8.49

$

Usually ships in 3-6 days

0

18

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

20

Exmark 1-653035

PULLEY

Note: Install sheave with long end of hub up

$68.99

$

In Stock, only 2 left!

0

21

Exmark 1-413010

SHEAVE ASM

$50.99

$

In Stock, only 2 left!

0

22

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 11

0

23

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, nut type (P/N 1-840022, 5cc tube) on setscrew threads, shoulder bolt threads, clutch retaining bolt, and pump drive idler bolt

$2.99

$

In Stock, Qty 8

0

24

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

25

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

26

Exmark 109-2578

KIT,IDLER ARM W/BRGS.

Note: 109-2578 kit contains items shown in small box and services units with S/N 614,461 and higher

$215.99

$

Usually ships in 3-6 days

0

Exmark 109-2575

KIT,TT PUMP IDLER ARM

Note: 109-2575 kit contains items shown in large box and services units with S/N 600,000-614,460

$251.99

$

Usually ships in 3-6 days

0

27

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

28

Exmark 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

29

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

30

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

31

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

32

Exmark 1-613206

LINK,SPEED CONTROL

$17.99

$

Usually ships in 3-6 days

0

33

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

34

Exmark 1-603676

126-8571
(Superseded to 126-8571)

$5.49

$

In Stock, only 2 left!

0

35

Exmark 1-413151

KNOB-TRACKING

$9.49

$

In Stock, Qty 5

0

36

Exmark 103-4673-01

116-1792-01
(Superseded to 116-1792-01)

$

$

Not available

37

Exmark 103-1561-01

WLD,LH CONTROL ARM

$

$

Not available

38

Exmark 103-1562-01

103-2344
(Superseded to 103-2344)

Note: (Not Shown)

$

$

Not available

39

Exmark 109-2584

BELT,COG A-59.5
(Superseded to 109-2584-SL)

$36.99

$

In Stock, only 4 left!

0

40

Exmark 1-603693

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

41

Exmark 103-2234-01

WLD,CRANK SPEED CNTRL

$147.99

$

Usually ships in 3-6 days

0

42

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

43

Exmark 103-0265

SPRING,COMPRESSION (NEUT)

$5.49

$

In Stock, only 1 left!

0

44

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

45

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

46

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

47

Exmark 103-2421

TUBE,PUMP LINK SPACER

$6.99

$

Usually ships in 3-6 days

0

48

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

49

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

50

Exmark 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

51

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

52

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, nut type (P/N 1-840022, 5cc tube) on setscrew threads, shoulder bolt threads, clutch retaining bolt, and pump drive idler bolt

$6.49

$

In Stock, only 1 left!

0

Exmark 3212-12

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

53

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

54

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

55

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 5

0

56

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

57

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

58

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

59

Exmark 1-800016

BOLT-TAP, HH

$1.49

$

Usually ships in 3-6 days

0

60

Exmark 1-800805

SCREW-HH

Note: Use Pro-Lock, nut type (P/N 1-840022, 5cc tube) on setscrew threads, shoulder bolt threads, clutch retaining bolt, and pump drive idler bolt

$5.49

$

In Stock, only 2 left!

0

61

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

62

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

63

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

64

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

65

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

66

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

67

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

68

Exmark 1-603903

SPACER

$5.49

$

In Stock, only 1 left!

0

69

Exmark 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

70

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

71

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

72

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

73

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

74

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

75

Exmark 1-809056

SCREW-HSH

Note: Use Pro-Lock, nut type (P/N 1-840022, 5cc tube) on setscrew threads, shoulder bolt threads, clutch retaining bolt, and pump drive idler bolt

$7.99

$

In Stock, only 2 left!

0

76

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

77

Exmark 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

78

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

79

Exmark 103-1576

LINK,DRIVE (PLTD)

$18.99

$

In Stock, Qty 6

0

80

Exmark 1-803022

SCREW-SET

Note: Use Pro-Lock, nut type (P/N 1-840022, 5cc tube) on setscrew threads, shoulder bolt threads, clutch retaining bolt, and pump drive idler bolt

$2.99

$

In Stock, Qty 20+

0

81

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

82

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

83

Exmark 103-2224

SHIELD,DRAG

$61.99

$

In Stock, only 2 left!

0

84

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

85

Exmark 3220-16

NUT-HEX JAM, LH

$1.99

$

In Stock, Qty 5

0

86

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

87

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

88

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

89

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

90

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

91

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

92

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 103-9140

PAINT, TOUCH UP

$21.99

$

In Stock, only 1 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0

Exmark 109-2578

KIT,IDLER ARM W/BRGS.

$215.99

$

Usually ships in 3-6 days

0

Exmark 109-2575

KIT,TT PUMP IDLER ARM

$251.99

$

Usually ships in 3-6 days

0
