TT23KCC - Exmark Turf Tracer Hydro Walk-Behind Mower, 23hp Kohler (SN: 370000 - 439999) (2003) Engine Deck Group (Part 2) Parts Diagram

Turf Tracer Hydro Walk-Behind Mower, 23hp Kohler

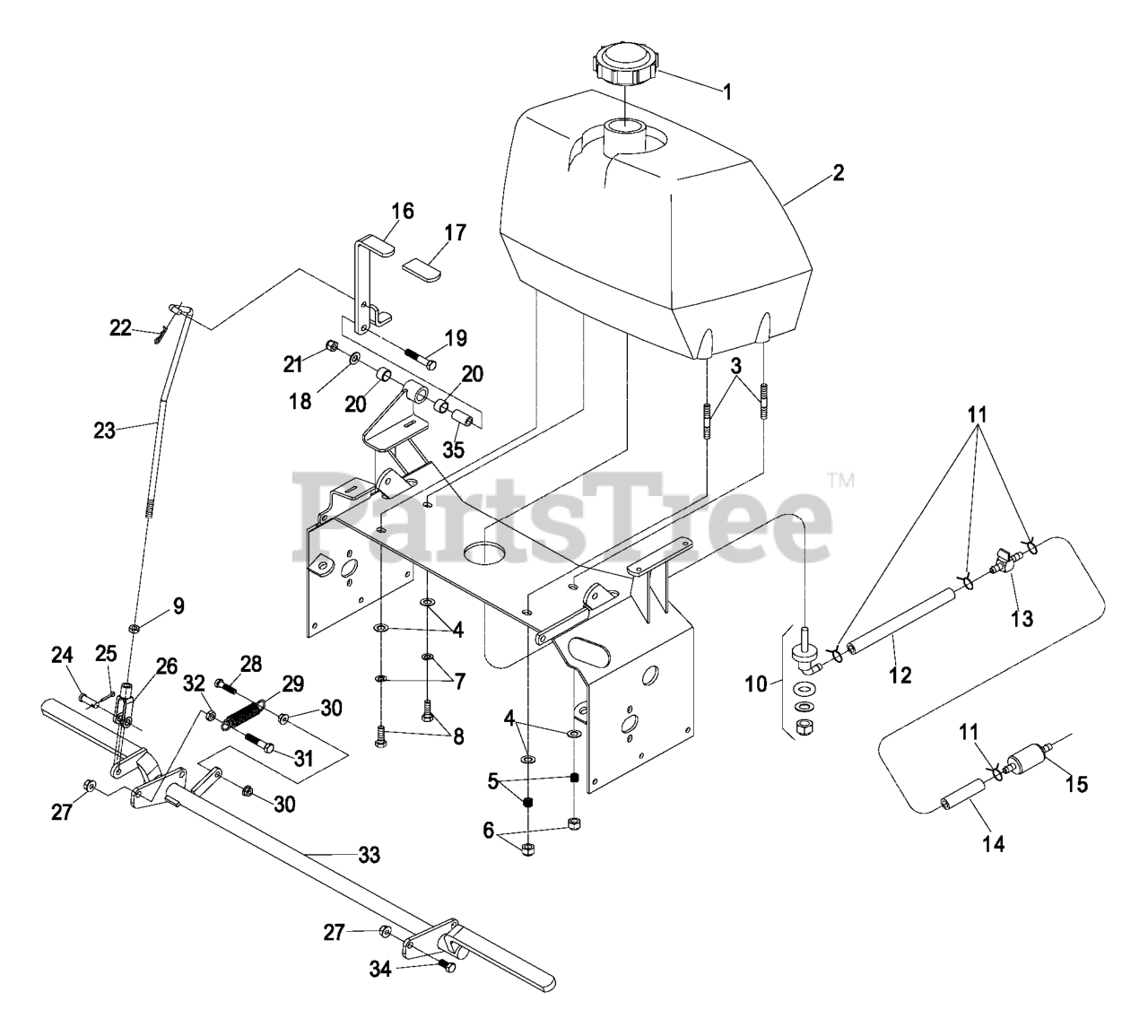

Engine Deck Group (Part 2) Parts Diagram

  • Title

1

Exmark 103-2107

109-0346
(Superseded to 109-0346)

$21.99

$

In Stock, Qty 16

0

2

Exmark 103-1929

103-2893
(Superseded to 103-2893)

$276.99

$

Usually ships in 3-6 days

0

3

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining type P/N 1-840023 (.5cc tube) on Fuel Tank Studs where studs are inserted into tank.

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

6

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

8

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

10

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut type P/N 1-840022 (.5cc tube) on Fuel Fitting threads

$36.99

$

In Stock, only 2 left!

0

11

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

12

Exmark 1-543649

DISCONTINUED

$

$

Not available

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

13

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

14

Exmark 1-603776

HOSE-LINE, FUEL

$

$

Not available

Exmark 1-303022

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

15

Kohler Part No. 2405002 Fuel Filter

$

$

Not available

Kawasaki Part No. 49019-7001 Fuel Filter

$

$

Not available

16

Exmark 103-3423

DISCONTINUED

$

$

Not available

17

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

0

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

19

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

22

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 103-1951

LINKAGE,PARK BRAKE

$36.99

$

Usually ships in 3-6 days

0

24

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

25

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

26

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

27

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

29

Exmark 1-323161

SPRING-IDLER

$11.99

$

In Stock, only 3 left!

0

30

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

33

Exmark 103-2205-03

116-9159
(Superseded to 116-9159)

$206.99

$

Usually ships in 3-6 days

0

34

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

35

Exmark 1-413344

BUSHING-PIVOT

$19.99

$

In Stock, only 2 left!

0
