TT23KAEP - Exmark Turf Tracer Hydro Walk-Behind Mower, 23hp Kawasaki (SN: 790000 - 849999) (2009) Electrical Group Parts Diagram

Turf Tracer Hydro Walk-Behind Mower, 23hp Kawasaki

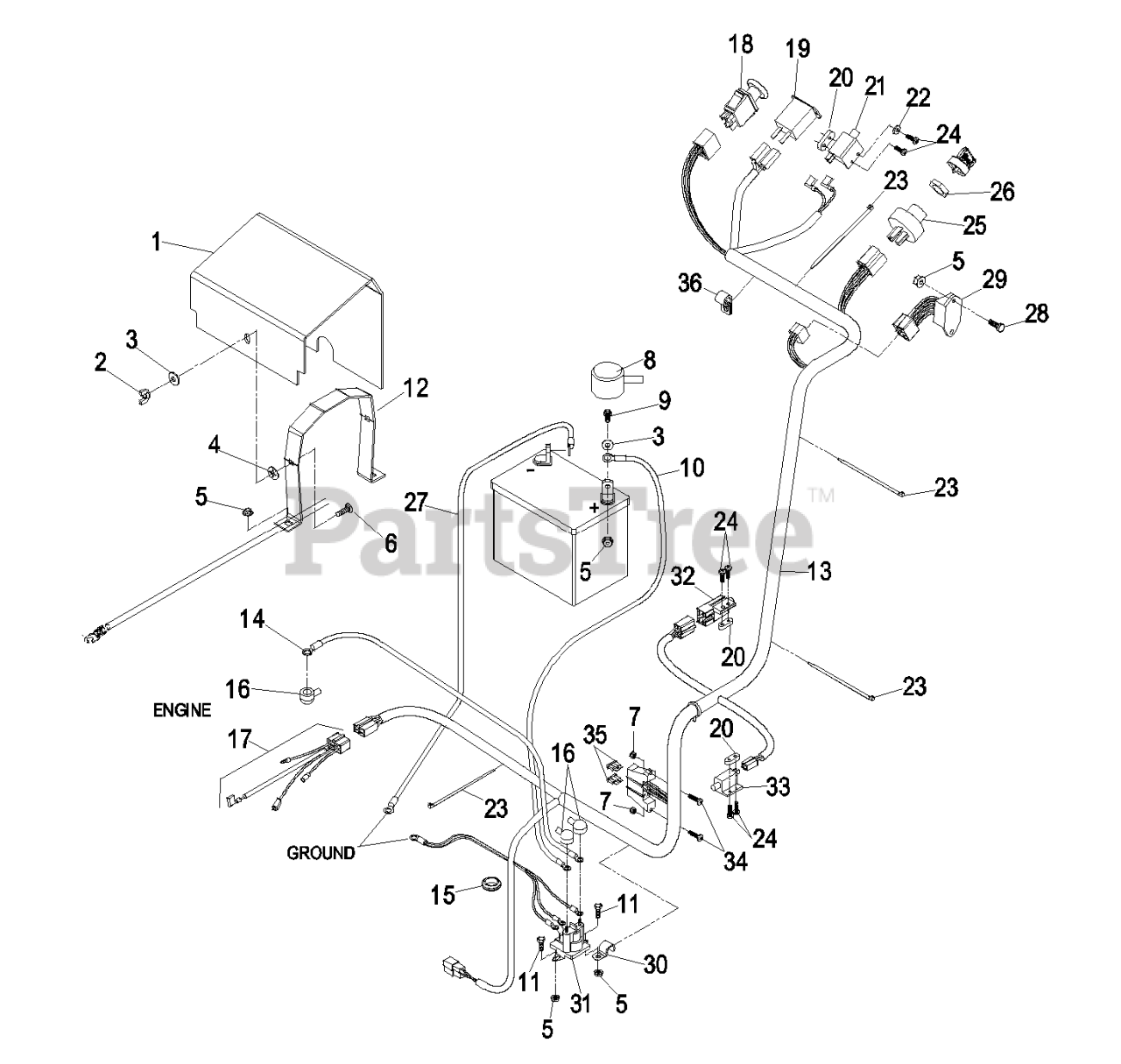

Electrical Group Parts Diagram

  • Title

1

Exmark 103-3424

COVER,BATTERY W/DECAL

$

$

Not available

2

Exmark 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

3

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

7

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 3 left!

0

9

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 109-7653

POSITIVE BATTERY CABLE AS

Note: Includes items 8 & 16.

$35.99

$

In Stock, only 1 left!

0

11

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

Exmark 1-603814-03

STRAP,BATTERY HOLDDOWN

$89.99

$

Usually ships in 3-6 days

0

13

Exmark 103-5380

HARNESS,TT PG WIRING

$

$

Not available

14

Exmark 109-7654

ASM,POSITIVE STARTER CABL

$40.99

$

Usually ships in 3-6 days

0

15

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

16

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

17

Exmark 1-613262

HARNESS,WIRING 19KA

$41.99

$

Usually ships in 3-6 days

0

18

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

19

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

20

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

21

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

22

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

24

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-543070

SWITCH,IGNITION

$44.99

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

26

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

27

Exmark 1-543767

WIRE-GROUND

$22.99

$

In Stock, only 2 left!

0

28

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 1-613198

MODULE-OPC NO TIME DELAY

$242.99

$

In Stock, only 4 left!

0

30

Exmark 103-1193

CLIP-HALF, LOOM

$2.99

$

Usually ships in 3-6 days

0

31

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

32

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

33

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

34

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

35

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

36

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0
