TT20KCC - Exmark Turf Tracer Hydro Walk-Behind Mower, 20hp Kohler (SN: 370000 - 439999) (2003) Mower Deck Cutter Housing Assy FMD 524 & 604 Parts Diagram

Turf Tracer Hydro Walk-Behind Mower, 20hp Kohler

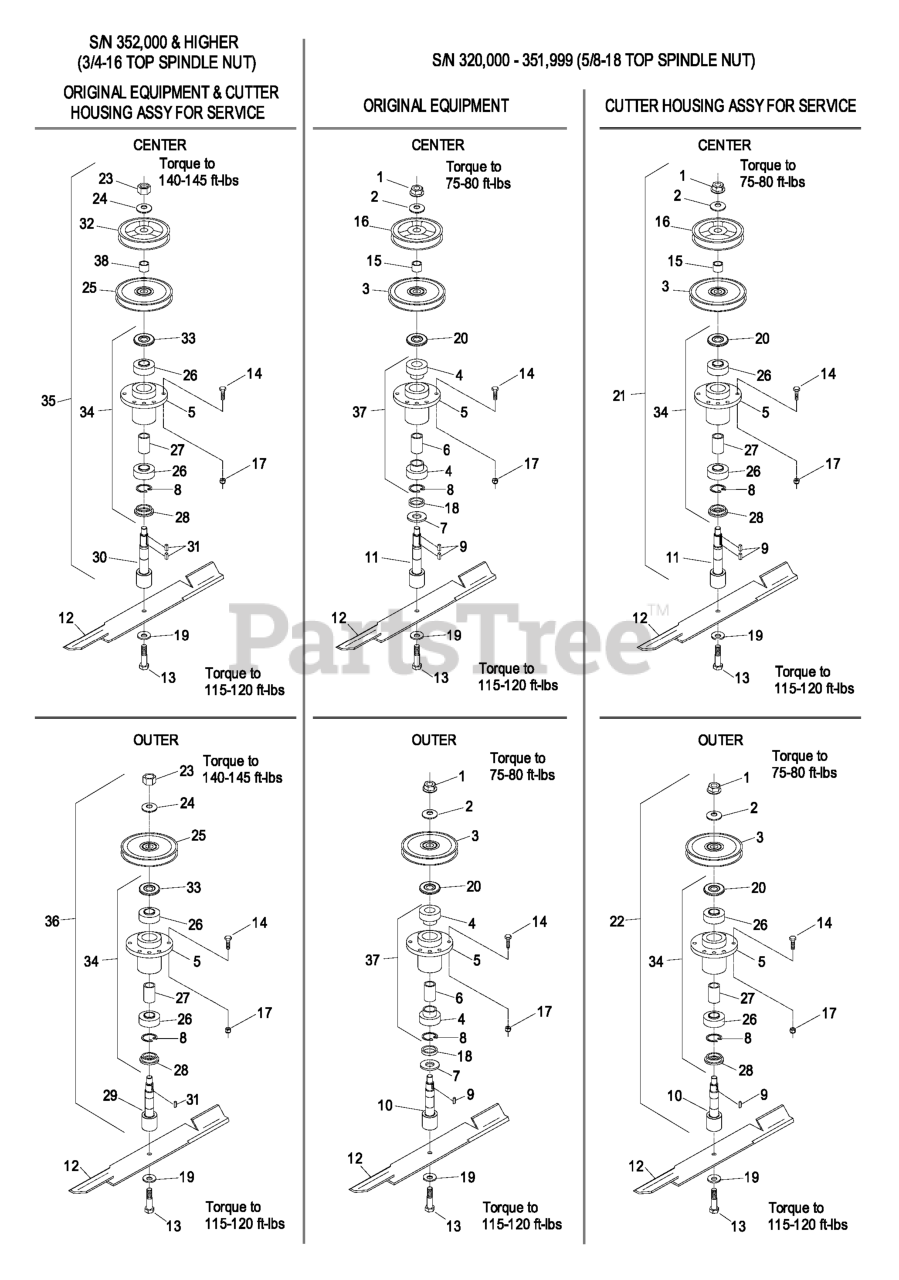

Mower Deck Cutter Housing Assy FMD 524 & 604 Parts Diagram

  • Title
1

Exmark 32128-58

NUT FLANGE

$2.49

$

In Stock, only 2 left!

0

2

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

3

Exmark 1-633701

SHEAVE,BLADE DRIVE

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$81.99

$

In Stock, only 1 left!

0

4

Exmark 1-513016

BEARING

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$82.99

$

In Stock, Qty 20+

0

5

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 2 left!

0

6

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 13

0

7

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

8

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

9

Exmark 10-8040

KEY-SQUARE

$2.99

$

In Stock, Qty 20+

0

10

Exmark 103-2326

SPINDLE,SHORT

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$133.99

$

Usually ships in 3-6 days

0

11

Exmark 103-2219

SPINDLE,LONG

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$211.99

$

Usually ships in 3-6 days

0

12

Exmark 103-2528

103-6584-S
(Superseded to 103-6584-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

Exmark 103-2508

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

Exmark 103-2518

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. (Mulch Kit P/N MK524 or MK604)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-2530

103-2530-S
(Superseded to 103-2530-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-1580

103-1580-S
(Superseded to 103-1580-S)

$36.99

$

In Stock, Qty 14

0

Exmark 103-2510

103-2510-S
(Superseded to 103-2510-S)

$38.99

$

In Stock, Qty 14

0

Exmark 103-0301

103-0301-S
(Superseded to 103-0301-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. (Mulch Kit P/N MK524 or MK604)

$37.99

$

In Stock, Qty 20+

0

13

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 20+

0

14

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Exmark 1-603504

SPACER-TUBE

$19.99

$

Usually ships in 3-6 days

0

16

Exmark 1-603581

SHEAVE,MOWER DRIVE

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$163.99

$

Usually ships in 3-6 days

0

Exmark 103-2270

SHEAVE,DECK DRIVE

$79.99

$

Usually ships in 3-6 days

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

19

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 20+

0

20

Exmark 103-1331

GUARD,BEARING TOP .880

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$6.49

$

In Stock, only 1 left!

0

21

Exmark 103-2328

DISCONTINUED

Note: Complete cutter housings also include Items 13 & 19

$

$

Not available

Exmark 103-2314

ASM,CUTTER HSG FMD604 CEN

Note: Complete cutter housings also include Items 13 & 19

$818.99

$

Usually ships in 3-6 days

0

22

Exmark 103-1140

ASM,SPINDLE HSG COMPLETE

Note: Complete cutter housings also include Items 13 & 19

$643.99

$

Usually ships in 3-6 days

0

23

$12.99

$

In Stock, Qty 10

0

24

$5.49

$

In Stock, Qty 20+

0

25

Exmark 103-2794

SHEAVE,BLADE DRIVE 6.30

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$76.99

$

In Stock, only 2 left!

0

26

Exmark 103-2477

BEARING-JACKSHAFT

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$59.99

$

In Stock, Qty 11

0

27

Exmark 103-2534

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

28

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 2 left!

0

29

Exmark 103-2785

SPINDLE,SHORT

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$133.99

$

In Stock, only 2 left!

0

30

Exmark 103-2786

SPINDLE,LONG

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$187.99

$

In Stock, only 1 left!

0

$2.99

$

In Stock, Qty 12

0

32

Exmark 103-2793

SHEAVE,MOWER DRIVE

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$181.99

$

Usually ships in 3-6 days

0

Exmark 103-2791

SHEAVE,BLADE DRIVE

$79.99

$

Usually ships in 3-6 days

0

33

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS Grease (or a food grade anti-seize) between the spindles & bearings, between spindles & sheaves, and under top of bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, Qty 12

0

34

Exmark 103-2547

103-8280
(Superseded to 103-8280)

$266.99

$

In Stock, only 2 left!

0

35

Exmark 103-3199

103-8074
(Superseded to 103-8074)

Note: Complete cutter housings also include Items 13 & 19

$

$

Not available

Exmark 103-3205

103-8076
(Superseded to 103-8076)

Note: Complete cutter housings also include Items 13 & 19

$760.99

$

Usually ships in 3-6 days

0

36

Exmark 103-3200

103-8075
(Superseded to 103-8075)

Note: Complete cutter housings also include Items 13 & 19 Complete cutter housing assembly 103-3200 can be used on decks with S/N 320,000 thru 351,999. However, belt shields must be replaced with new shields with larger spindle holes. P/N 103-2969-01 (2 required) for FMD524; P/N's 103-2967-01 (RH) and 103

$536.99

$

Usually ships in 3-6 days

0

37

Housing W/Brg Spacer & Ring

Note: This assembly is now serviced by kit number 103-2547.

$

$

Not available

38

Exmark 103-3209

SPACER,TUBE

$8.49

$

Usually ships in 3-6 days

0
