TT18KC - Exmark Turf Tracer Hydro Walk-Behind Mower, 18hp Kohler (SN: 130000 - 149999) (1997) Fuel System - Pg. 42 Parts Diagram

Turf Tracer Hydro Walk-Behind Mower, 18hp Kohler

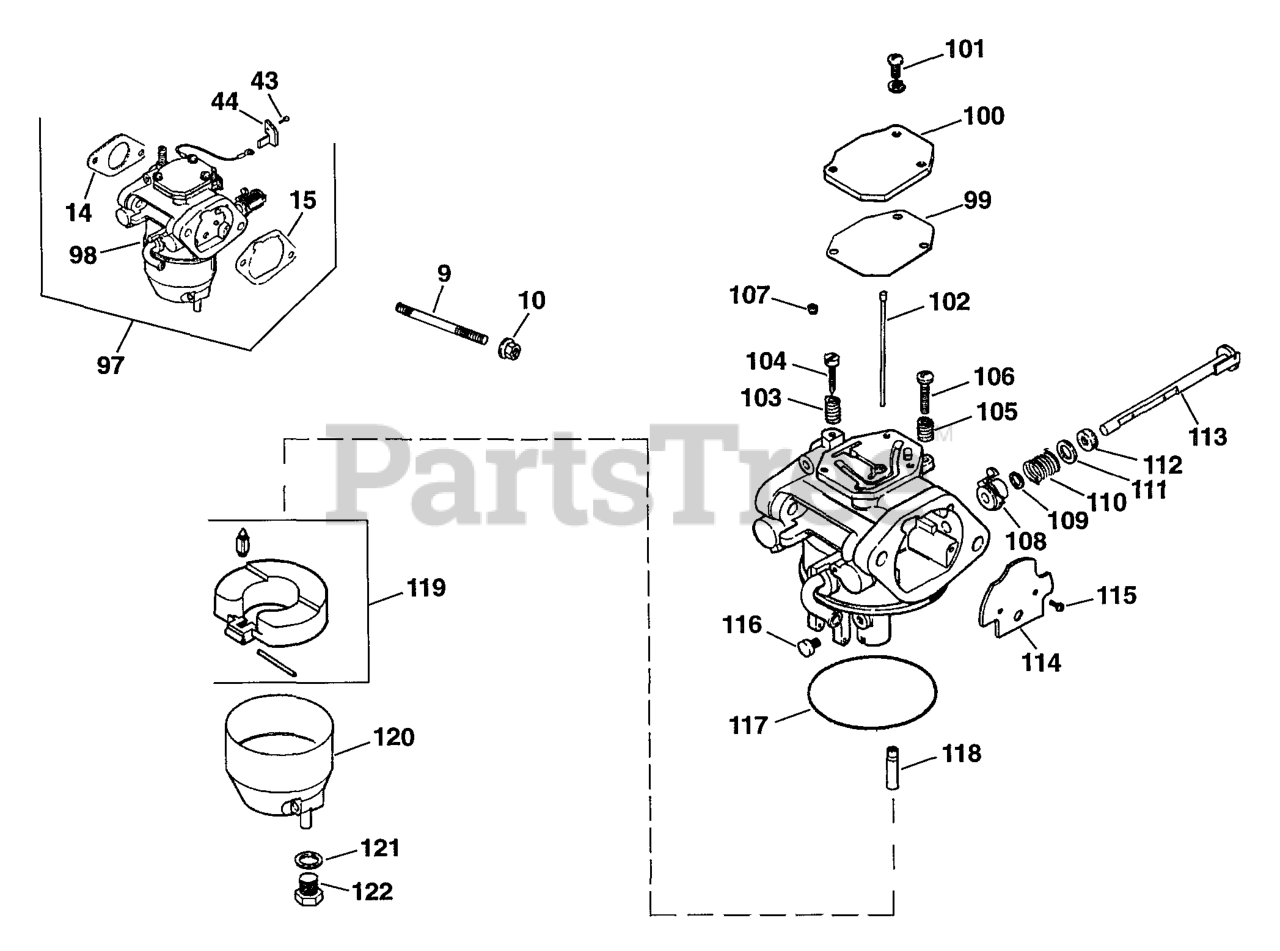

Fuel System - Pg. 42 Parts Diagram

  • Title

9

Exmark M-0629128

Stud, M6x1.0x128

$

$

Currently unavailable

10

Exmark M-0641060

Nut, Hex. M6x1.0

$

$

Currently unavailable

11

Exmark 4715401-S

Clip

$

$

Currently unavailable

14

Exmark 2404115-S

Gasket, Carburetor

$

$

Currently unavailable

15

Exmark 2404114-S

Gasket, Air Cleaner Base

$

$

Currently unavailable

43

Exmark 2412629-S

Bracket, Throttle Stop

$

$

Currently unavailable

44

Exmark M-0259006

Screw, Phillips Hd. M2x0.45x6

$

$

Currently unavailable

Exmark 2475706

Kit, Carburetor Repair

Note: See footnote for contents. Includes passage cover gasket, float chamber gasket, chamber screw gasket, throttle adjusting screw, idle adjusting screw, idle adjusting screw spring, throttle adjusting screw spring, float valve

$

$

Currently unavailable

Exmark 2475525-S

Kit,High Altitude

Note: 1500-3000 Meter. See footnote for contents. Includes float chamber gasket, chamber screw gasket, air bleed jet, main jet. Do not use on certified engines in California

$

$

Currently unavailable

Exmark 2475526-S

Kit,High Altitude

Note: 3000 Plus Meter. See footnote for contents. Includes float chamber gasket, chamber screw gasket, air bleed jet, main jet. Do not use on certified engines in California

$

$

Currently unavailable
