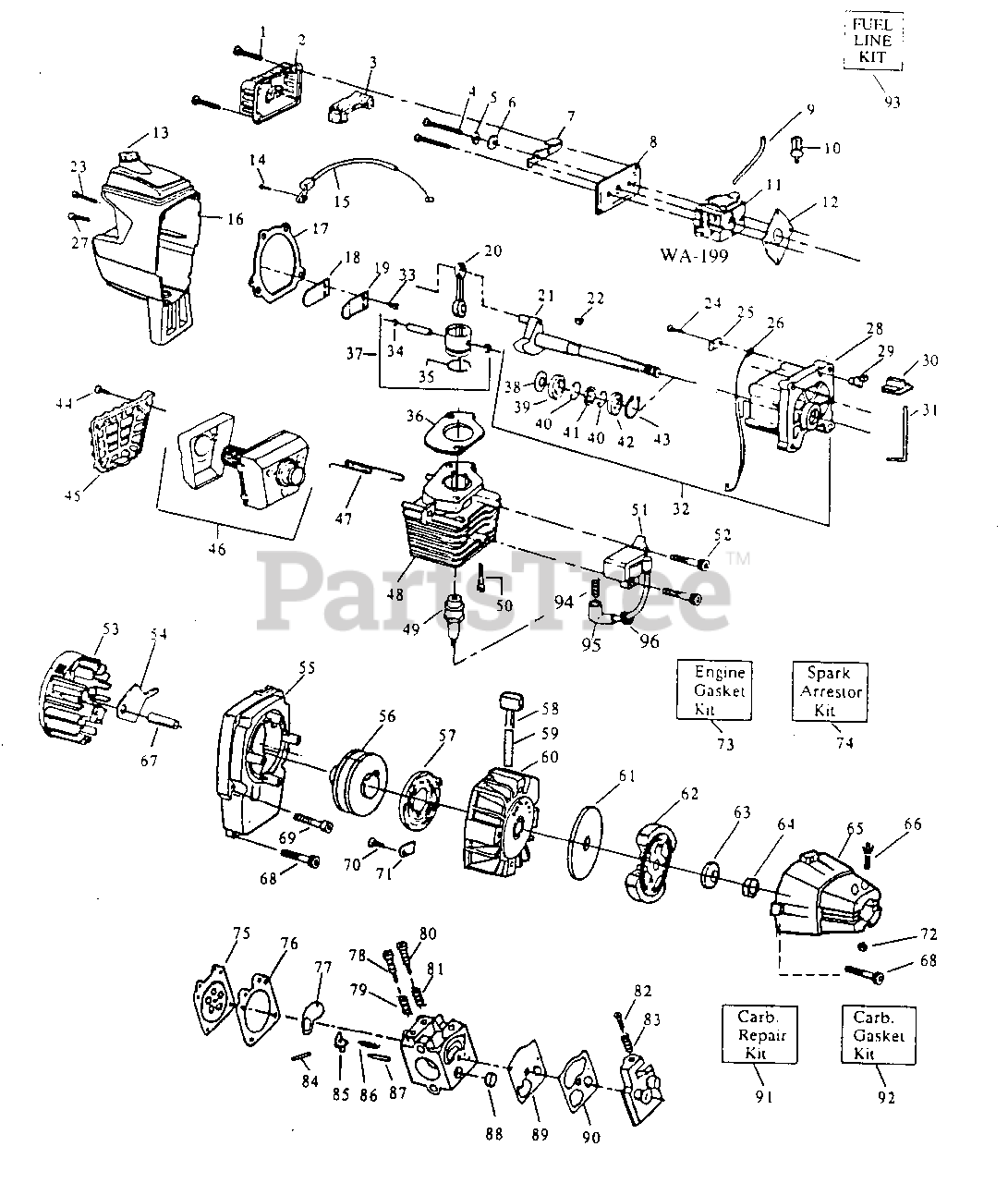

TT 85 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

POWER UNIT Parts Diagram

  • Title

1

Poulan 530015773

Screw

$3.99

$

In Stock, only 2 left!

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 11

0

4

Poulan 530015766

Screw
(Superseded to 530015849)

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530027528

Spacer
(Superseded to 530015852)

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530027526

Choke Shutter

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 530027527

Air Filter Plate

$2.99

$

Usually ships in 3-10 days

0

9

Poulan 530021076

Fuel Line

$

$

Not available

10

Poulan 530010897

Fuel Pick-up Assy.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

11

Poulan 530035259

Carburetor (WA-199)
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

12

Poulan 530019156

Carburetor Gasket

$8.99

$

In Stock, only 2 left!

0

13

Poulan 530010807

Fuel Cap Assy.
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

14

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

15

Poulan 530027549

Throttle Cable Assy.
(Superseded to 530037497)

$

$

Not available

16

Poulan 530027982

Shroud & Tank Assy.

$

$

Not available

17

Poulan 530019154

Gasket

$3.99

$

In Stock, only 1 left!

0

18

Poulan 530027593

Reed

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530010960

Connecting Rod Assy.

Note: (Incl. Bearings)

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530010934

Crankshaft Assy.

$34.99

$

Usually ships in 3-10 days

0

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

24

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

25

Poulan 530027546

Kill Switch Insulator

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530027547

Lead Wire

$

$

Not available

27

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

28

Poulan 530014016

Crankcase Assy.

Note: (Inc. 39 - 42)

$

$

Not available

29

Poulan 530027545

Kill Switch Ramp

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530027958

Kill Switch Button
(Superseded to 530038309)

$4.99

$

In Stock, Qty 8

0

31

Poulan 530027959

Kill Switch Spring

$

$

Not available

32

Poulan 530014015

Crankcase & Crankshaft Assy.
(Superseded to 530071705)

Note: (Inc.21, 28, 38 - 43)

$37.99

$

Usually ships in 3-10 days

0

33

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

35

Poulan 530025875

Piston Ring

$

$

Not available

36

Poulan 530019161

Cylinder Gasket
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530069275

Piston Kit
(Superseded to 530069899)

Note: (Inc.34, 35 & Pin)

$

$

Not available

38

Poulan 530015788

Spacer

$0.99

$

Usually ships in 3-10 days

0

39

Poulan 530032103

Inner Bearing

$

$

Not available

40

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530032102

Outer Bearing

$

$

Not available

43

Poulan 530015789

Crankshaft Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530069257

Muffler Kit
(Superseded to 530069310)

$

$

Not available

47

Poulan 530024903

Muffler Spring
(Superseded to 530036409)

$

$

Not available

48

Poulan 530012235

Cylinder

$

$

Not available

49

Poulan 530030077

Spark Plug

$

$

Not available

50

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

51

Poulan 530039134

Ignition Module Kit

$

$

Not available

52

Poulan 530015128

Screw
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530039136

Flywheel Assy.
(Superseded to 530039189)

$

$

Not available

54

Poulan 530027572

Flywheel Counterweight
(Superseded to 530347987)

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530027948

Fan Housing

$15.99

$

Usually ships in 3-10 days

0

56

Poulan 530027522

Starter Pulley

$

$

Not available

57

Poulan 530027531

Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

58

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

59

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

60

Poulan 530014009

Pulley Housing Assy.

$

$

Not available

61

Poulan 530094189

Clutch Washer

$6.99

$

In Stock, only 1 left!

0

62

Poulan 530069254

Clutch Assy. Kit

$

$

Not available

63

Poulan 530015796

Washer

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530001733

Nut

$

$

Not available

65

Poulan 530014017

Clutch Housing

$37.99

$

In Stock, only 1 left!

0

66

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

67

Poulan 530027511

Spacer

$8.99

$

Usually ships in 3-10 days

0

68

Poulan 530015770

Screw

$

$

Not available

69

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 530027523

Pulley Retainer

$7.49

$

In Stock, only 2 left!

0

72

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

73

Poulan 530069276

Engine Gasket Kit

Note: (*Indicates Contents)

$

$

Not available

74

Poulan 952701612

Spark Arrestor Kit

$

$

Not available

75

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

76

Poulan 530035151

Metering Diaphragm Gasket

$3.99

$

In Stock, Qty 8

0

77

Poulan 530035147

Circuit Plate Gasket
(Superseded to 501781301)

$

$

Not available

78

Poulan 530035142

Hi Speed Needle
(Superseded to 501782201)

$

$

Not available

79

Poulan 530035036

Hi Speed Needle Spring

$

$

Not available

80

Poulan 530035141

Idle Needle

$2.99

$

Usually ships in 3-10 days

0

81

Poulan 530035023

Idle Needle Spring
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

82

Poulan 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

83

Poulan 530035208

Idle Speed Spring
(Superseded to 501667801)

$

$

Not available

84

Poulan 530035028

Metering Pin
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$7.99

$

In Stock, only 3 left!

0

85

Poulan 530035031

Metering Lever
(Superseded to 505520127)

Note: Included in Carburetor Kwik Repair Kit.

$5.99

$

Usually ships in 3-10 days

0

86

Poulan 530035188

Metering Lever Spring

Note: Included in Carburetor Kwik Repair Kit.

$4.99

$

In Stock, Qty 10

0

87

Poulan 530035106

Indlet Needle Valve
(Superseded to 503117001)

Note: Included in Carburetor Kwik Repair Kit.

$22.99

$

In Stock, Qty 8

0

88

Poulan 530035178

Inlet Screen

Note: Included in Carburetor Kwik Repair Kit.

$3.99

$

Usually ships in 3-10 days

0

89

Poulan 530035166

Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

90

Poulan 530035164

Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

91

Poulan 530035260

Carb. Kwik Repair Kit

$26.99

$

In Stock, only 3 left!

0

92

Poulan 530035185

Carb. Gasket/Diaphragm

$36.99

$

In Stock, only 2 left!

0

93

Poulan 530069247

Fuel Line Kit

$7.99

$

In Stock, Qty 20+

0

94

Poulan 530003933

Connector Spark Plug
(Superseded to 507475326)

$

$

Not available

95

Poulan 530003934

Boot Spark Plug

$

$

Not available

96

Poulan 530024435

Grommet Plug Wire

$3.99

$

Usually ships in 3-10 days

0

Poulan 530019136

"O" Ring Fuel Cap

$

$

Not available
