TT-20KO - Exmark Turf Tracer Hydro Walk-Behind Mower, 20hp Kohler (SN: 060000 - 069999) (1991) Kohler & 17 HP Kawasaki Electrical Parts Diagram

Turf Tracer Hydro Walk-Behind Mower, 20hp Kohler

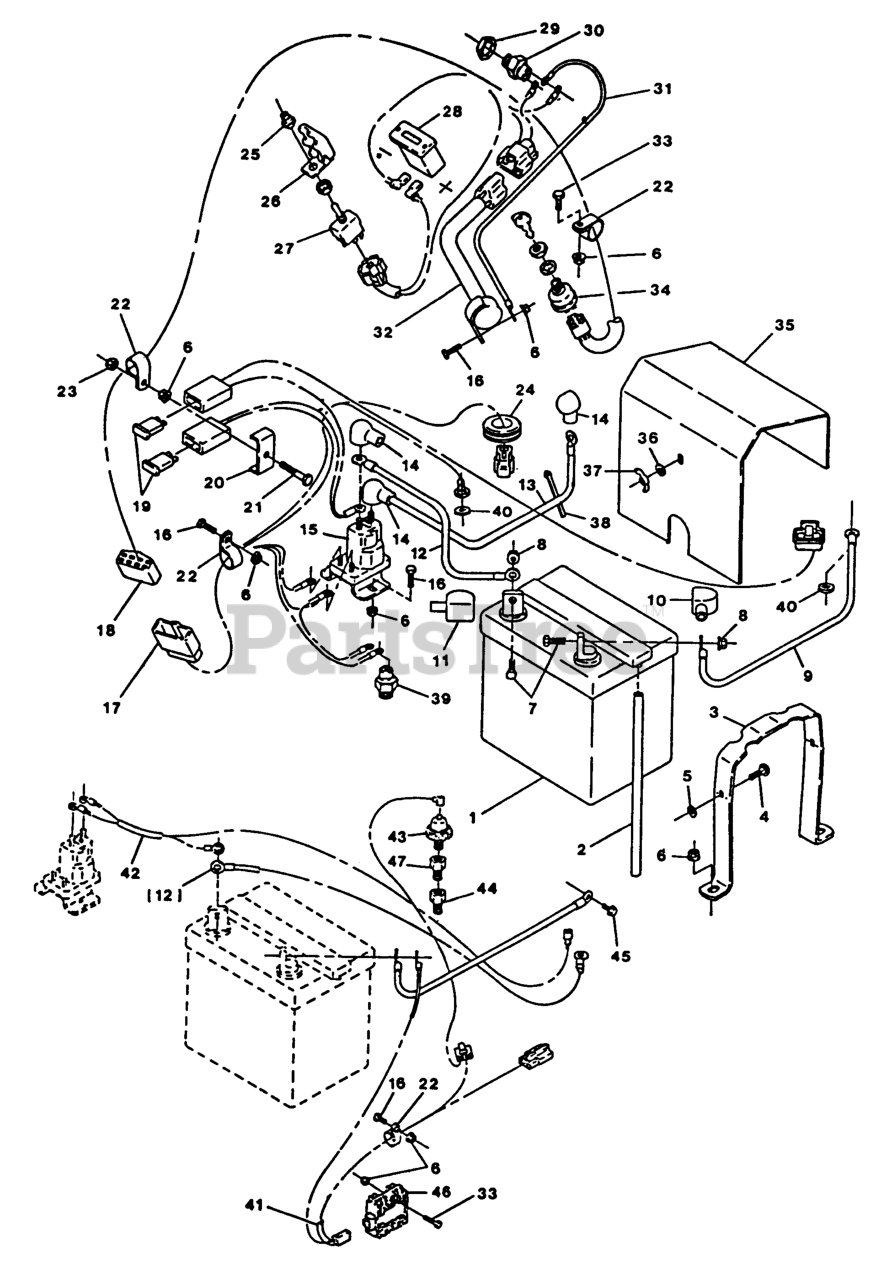

Kohler & 17 HP Kawasaki Electrical Parts Diagram

  • Title

1

Exmark 1-603479

Battery, 12v Manifold

$

$

Not available

2

Exmark 1-809040

DISCONTINUED (EXMARK)

$

$

Not available

3

Exmark 1-603477-03

DISCONTINUED (EXMARK)

$

$

Not available

4

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

5

Exmark 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 1-809012

32128-33
(Superseded to 32128-33)

Note: (Kohler)

$0.99

$

In Stock, Qty 20+

0

Note: (Kawasaki 17 hp)

$

$

Not available

7

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

9

Exmark 1-603489

1-513056
(Superseded to 1-513056)

$

$

Not available

10

Exmark 1-543390

INSULATOR, BATTERY -

$8.49

$

Usually ships in 3-6 days

0

11

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

12

Exmark 1-603488

109-7654
(Superseded to 109-7654)

$40.99

$

Usually ships in 3-6 days

0

13

Exmark 1-603490

109-7628
(Superseded to 109-7628)

$30.99

$

In Stock, only 1 left!

0

14

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

15

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

16

Exmark 1-800251

321-3
(Superseded to 321-3)

Note: (Kohler)

$1.49

$

In Stock, Qty 20+

0

Note: (Kawasaki 17 hp)

$

$

Not available

17

Exmark 1-603486

$

$

Currently unavailable

18

Exmark 1-603487

DISCONTINUED (EXMARK)

$

$

Not available

19

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

20

Exmark 1-603434

CLIP-FUSE BLOCK PLTD

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 1-800258

321-11
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

22

Exmark 1-513762

CLIP-LOOM

Note: (Kohler)

$7.99

$

In Stock, only 1 left!

0

Note: (Kaw. 17 hp)

$

$

Not available

23

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

25

Exmark 1-543386

BOOT-SWITCH, TOGGLE

$30.99

$

Usually ships in 3-6 days

0

26

Exmark 1-543388

DISCONTINUED

$

$

Not available

27

Exmark 1-543387

1-551075
(Superseded to 1-551075)

$140.99

$

Usually ships in 3-6 days

0

28

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

29

Exmark 1-803034

DISCONTINUED (EXMARK)

$

$

Not available

30

Exmark 1-303372

SWITCH,OPERATOR CNTRL

$96.99

$

Usually ships in 3-6 days

0

31

Exmark 1-603491

DISCONTINUED

$

$

Not available

32

Exmark 1-513579

1-611115
(Superseded to 1-611115)

Note: (Kohler)

$278.99

$

Usually ships in 3-6 days

0

Exmark 1-603625

MODULE-SAFETY INTERLOCK

Note: (Kawasaki 17 hp)

$109.99

$

In Stock, only 1 left!

0

33

Exmark 1-800254

321-6
(Superseded to 321-6)

Note: (Kohler)

$0.99

$

In Stock, Qty 20+

0

Note: (Kawasaki 17 hp)

$

$

Not available

34

Exmark 1-513194

DISCONTINUED

$

$

Not available

35

Exmark 1-603105

103-3424
(Superseded to 103-3424)

$

$

Not available

36

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

37

Exmark 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

38

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

Note: (Kawasaki 17 hp)

$

$

Not available

39

Exmark 1-303282

SWITCH-START, NEUTRAL

$50.99

$

In Stock, Qty 15

0

40

Exmark 1-805506

DISCONTINUED

$

$

Not available

41

Exmark 1-602644

DISCONTINUED (EXMARK)

Note: (Kawasaki 17 hp)

$

$

Not available

42

Exmark 1-603629

DISCONTINUED

Note: (Kaw. 17 hp)

$

$

Not available

43

Exmark 1-603645

SWITCH-OIL PRESSURE

Note: (Kawasaki 17 hp)

$123.99

$

Usually ships in 3-6 days

0

44

Exmark 1-603635

DISCONTINUED (EXMARK)

Note: (Kawasaki 17 hp)

$

$

Not available

45

Exmark 1-809026

M8 X 1.25 X 16 Mm Hh Capscrew

Note: (Kawasaki 17 hp)

$

$

Not available

46

Note: Kawasaki No. 21066 - 2056

$

$

Not available

47

Exmark 1-603626

DISCONTINUED (EXMARK)

$

$

Not available
