TT-14K - Exmark Turf Tracer Hydro Walk-Behind Mower, 14hp Kohler (SN: 080000 - 089999) (1993) Engine Deck Group Parts Diagram

Turf Tracer Hydro Walk-Behind Mower, 14hp Kohler

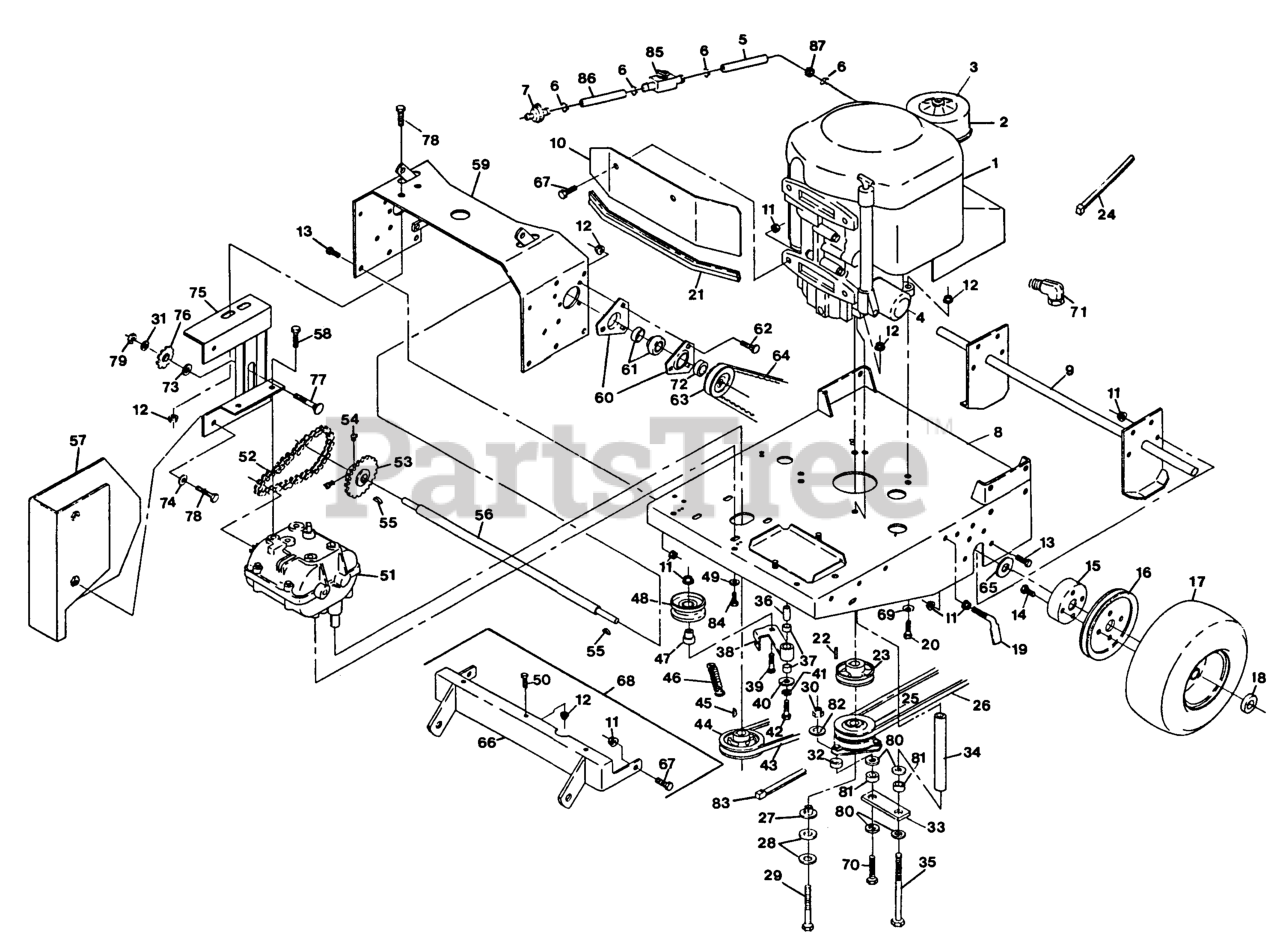

Engine Deck Group Parts Diagram

  • Title

1

$

$

Not available

1

$

$

Not available

$

$

Not available

2

Note: Kohler No. 45-083-02

$

$

Not available

$

$

Not available

$

$

Not available

3

Note: Kohler No. 45-083-01

$

$

Not available

$

$

Not available

$

$

Not available

4

Note: Kohler No. 52-050-02

$

$

Not available

Note: Kawasaki No. 49065-2071

$

$

Not available

5

Exmark 1-603954

HOSE-LINE, FUEL

Note: (Kohler)

$8.99

$

In Stock, only 1 left!

0

Exmark 1-603776

HOSE-LINE, FUEL

Note: (17 HP Kaw.)

$

$

Not available

Exmark 1-303471

LINE-FUEL

Note: (14 HP Kaw.)

$8.49

$

In Stock, only 2 left!

0

6

Exmark 1-303077

CLAMP

Note: (Kaw.)

$1.49

$

In Stock, Qty 8

0

Note: (Kohler)

$

$

Not available

7

Exmark 1-303197

109585
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

8

Exmark 1-602949-01

DISCONTINUED (EXMARK)

Note: (Kohler 17 HP Kawasaki)

$

$

Not available

Exmark 1-602953-01

DISCONTINUED (EXMARK)

Note: (14 HP Kaw.)

$

$

Not available

9

Exmark 1-602597-01

DISCONTINUED

$

$

Not available

10

Exmark 1-603613-01

SHIELD-HEAT, TRACER

$119.99

$

Usually ships in 3-6 days

0

11

Exmark 1-809007

3290-357
(Superseded to 3290-357)

Note: (Kohler)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-809007

3290-357
(Superseded to 3290-357)

Note: (Kaw.)

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-800290

323-4
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

14

Exmark 1-809035

SCRW,TPTTE HH

$5.49

$

In Stock, Qty 5

0

15

Exmark 1-603083

DISCONTINUED

$

$

Not available

16

Exmark 1-603195

DISCONTINUED

$

$

Not available

17

Exmark 1-603082

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-603427

1-413474
(Superseded to 1-413474)

$134.99

$

Usually ships in 3-6 days

0

Exmark 1-603541

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-603542

BUSHING-OILLITE WHL

$13.99

$

Usually ships in 3-6 days

0

Exmark 1-603428

DISCONTINUED (EXMARK)

$

$

Not available

18

Exmark 1-373021

DISCONTINUED

$

$

Not available

19

Exmark 1-603430

SCRAPER

$19.99

$

Usually ships in 3-6 days

0

20

Exmark 1-800275

322-7
(Superseded to 322-7)

Note: (Kohler)

$1.49

$

In Stock, Qty 20+

0

Exmark 1-809018

33114-030
(Superseded to 33114-030)

Note: (Kawasaki)

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 1-603615

DISCONTINUED (EXMARK)

Note: (Kohler)

$

$

Not available

22

Exmark 1-807270

DISCONTINUED

$

$

Not available

23

Exmark 1-603589

DISCONTINUED

Note: (18, 14 & 17 HP)

$

$

Not available

Exmark 1-603970

DISCONTINUED (EXMARK)

Note: (20 HP)

$

$

Not available

24

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

25

Exmark 1-603539

1-611223
(Superseded to 1-611223)

$

$

Not available

26

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

Exmark 1-603306

BELT,DECK DRIVE
(Superseded to 1-603306-SL)

$56.99

$

In Stock, Qty 11

0

27

Exmark 1-603609

BUSHING,CLUTCH KEEPER

$28.99

$

In Stock, only 1 left!

0

28

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

29

Exmark 1-800820

3212-12
(Superseded to 3212-12)

Note: (Kohler)

$3.49

$

In Stock, Qty 14

0

Exmark 1-809050

33115-070
(Superseded to 33115-070)

Note: (Kawasaki)

$8.49

$

Usually ships in 3-6 days

0

30

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

31

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-323093

DISCONTINUED

$

$

Not available

33

Exmark 1-543004

1-541047
(Superseded to 1-541047)

$

$

Not available

34

Exmark 1-603469-01

DISCONTINUED

$

$

Not available

35

Exmark 1-800282

SCREW-HH

Note: (Kohler)

$5.49

$

In Stock, only 1 left!

0

Exmark 1-809049

SCRW,HX HD

Note: (14 & 17 HP Kaw.)

$17.99

$

Usually ships in 3-6 days

0

36

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

37

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

38

Exmark 1-602458

1-602521
(Superseded to 1-602521)

$115.99

$

Usually ships in 3-6 days

0

Exmark 1-602521

IDLER ARM ASM

$115.99

$

Usually ships in 3-6 days

0

39

Exmark 1-807508

3231-4
(Superseded to 3231-4)

$3.99

$

In Stock, Qty 20+

0

40

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

41

Exmark 1-805006

3253-5
(Superseded to 3253-5)

$0.99

$

In Stock, Qty 17

0

42

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

43

Exmark 1-603295

DISCONTINUED

$

$

Not available

44

Exmark 1-403019

DISCONTINUED

$

$

Not available

45

Exmark 1-807009

3257-5
(Superseded to 3257-5)

$5.99

$

Usually ships in 3-6 days

0

46

Exmark 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

47

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

48

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

49

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

50

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

51

Exmark 1-603088

1-611215
(Superseded to 1-611215)

$

$

Not available

Exmark 1-603658

DISCONTINUED

$

$

Not available

52

Exmark 1-603297

CHAIN-#40 ROLLER

$78.99

$

Usually ships in 3-6 days

0

53

Exmark 1-603298

DISCONTINUED

$

$

Not available

54

Exmark 1-805046

DISCONTINUED (EXMARK)

$

$

Not available

55

Exmark 1-807006

3257-32
(Superseded to 3257-32)

$2.99

$

In Stock, Qty 11

0

56

Exmark 1-603264-01

DISCONTINUED (EXMARK)

$

$

Not available

57

Exmark 1-602819-01

DISCONTINUED (EXMARK)

$

$

Not available

58

Exmark 1-809013

9264964
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

59

Exmark 1-602440-01

DISCONTINUED (EXMARK)

$

$

Not available

60

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

61

Exmark 1-603265

DISCONTINUED (EXMARK)

$

$

Not available

62

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

63

Exmark 1-303409-03

DISCONTINUED

$

$

Not available

64

Exmark 1-603193

BELT WHL CLTCH W-4.2

$54.99

$

Usually ships in 3-6 days

0

65

Exmark 1-805274

3256-10
(Superseded to 3256-10)

$0.99

$

In Stock, Qty 20+

0

66

Exmark 1-602438-01

WLD,SULKY HITCH

$

$

Not available

67

Exmark 1-800292

323-6
(Superseded to 323-6)

Note: (Kohler)

$2.49

$

In Stock, Qty 20+

0

Exmark 1-800292

323-6
(Superseded to 323-6)

Note: (Kaw.)

$2.49

$

In Stock, Qty 20+

0

68

Exmark 1-601000

Hitch - Tracer Sulky

$

$

Currently unavailable

69

Exmark 1-303334

WASHER-SPRING

Note: (Kawasaki)

$2.99

$

In Stock, only 4 left!

0

70

Exmark 1-800275

322-7
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

71

Exmark 1-303431

FITTING-ELBOW-90

Note: (Kohler)

$

$

Not available

72

Exmark 1-603817

DISCONTINUED

$

$

Not available

73

Exmark 1-805267

3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

74

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

75

Exmark 1-602825-01

DISCONTINUED (EXMARK)

$

$

Not available

76

Exmark 1-603858

DISCONTINUED (EXMARK)

$

$

Not available

77

Exmark 1-807523

DISCONTINUED (EXMARK)

$

$

Not available

78

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

79

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

80

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 2 left!

0

81

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

0

82

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

83

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

84

Exmark 1-800272

322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

85

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

86

Exmark 1-603776

HOSE-LINE, FUEL

$

$

Not available

87

Exmark 1-303308

CLAMP-HOSE

Note: (Kaw.)

$5.49

$

Usually ships in 3-6 days

0
