TSI-21 - Tom Shanahan Engine Starter, Ignition, Throttle, Stop Switch Parts Diagram

Engine

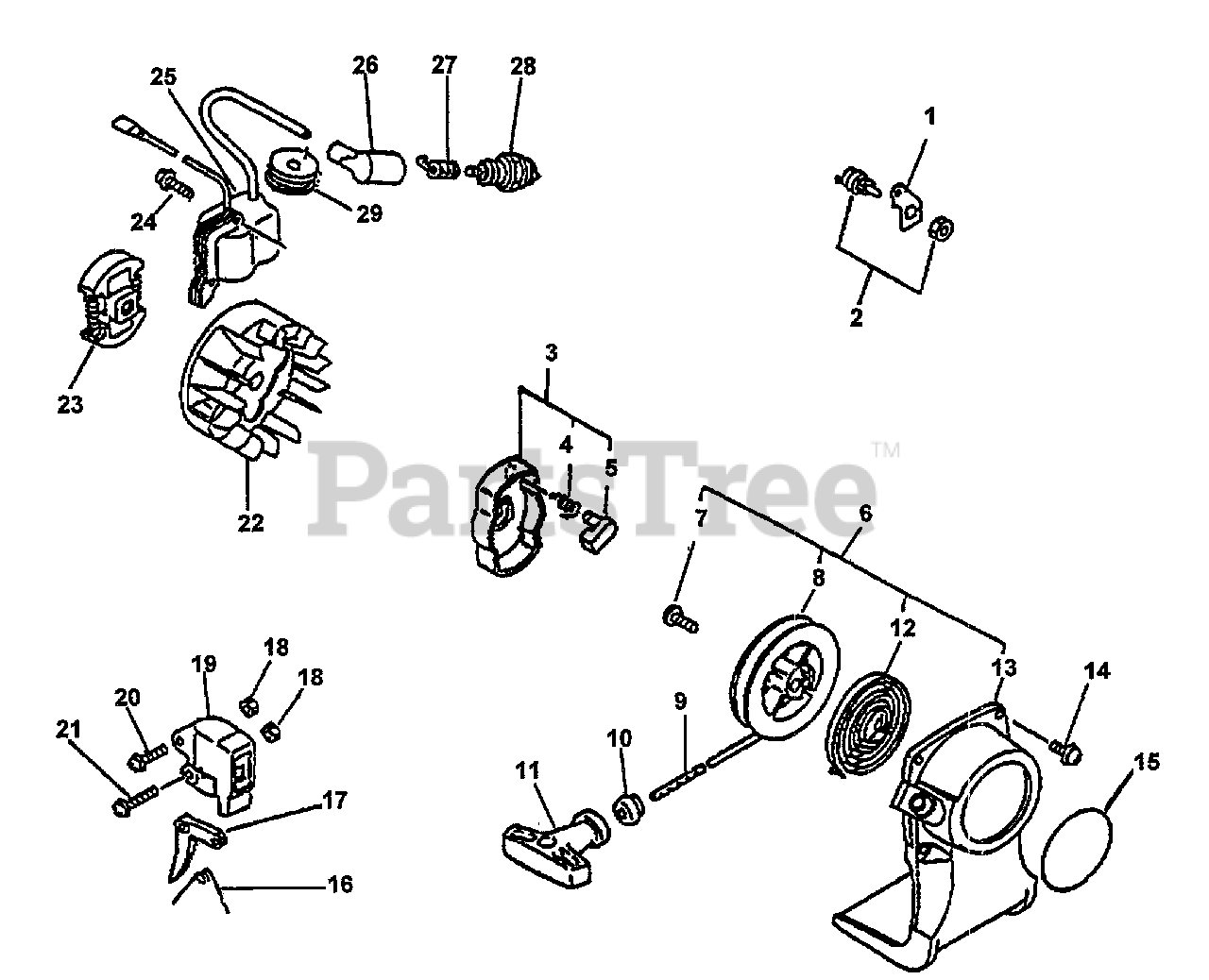

Starter, Ignition, Throttle, Stop Switch Parts Diagram

  • Title
1

Echo 16381044330

BRACKET, SWITCH

$2.99

$

In Stock, only 1 left!

0

2

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, Qty 6

0

3

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 4 & 5

$16.99

$

In Stock, Qty 18

0

4

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

5

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

6

Echo 17720044332

STARTER ASSY
(Superseded to 17720044333)

$45.99

$

In Stock, Qty 20+

0

$3.49

$

In Stock, only 1 left!

0

8

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 16

0

9

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

10

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

11

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

12

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 6

0

13

Echo 17723244332

CASE, STARTER - BLUE
(Superseded to 17723244333)

$40.99

$

In Stock, only 1 left!

0

14

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

15

Echo 89013512920

LABEL - BRAND
(Superseded to Discontinued)

$

$

Not available

16

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 7

0

17

Echo 17801023530

TRIGGER, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

18

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

19

Echo 17802408730

BRACKET, TRIGGER

$7.49

$

In Stock, only 3 left!

0

20

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

21

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

22

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

23

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 6

0

24

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

25

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

26

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

27

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

28

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

29

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 8

0
