TS 500 M - Husqvarna Tile Saw (2007-01) MOTOR Parts Diagram

Tile Saw

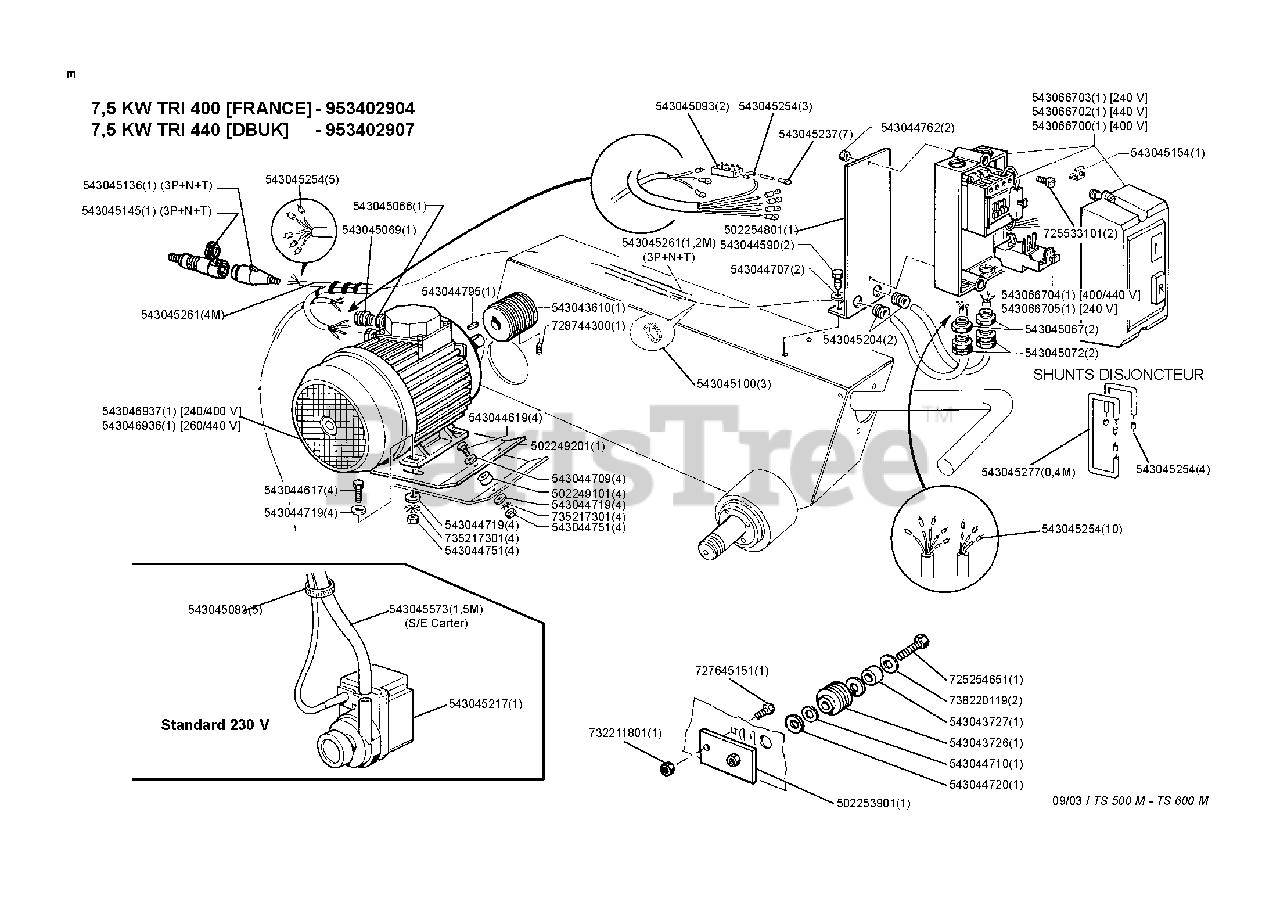

MOTOR Parts Diagram

  • Title

502 24 91-01

Husqvarna Construction 502 24 91-01

SPACER RING

$

$

Not available

502 24 92-01

Husqvarna Construction 502 24 92-01

SUPPORT

$

$

Not available

502 25 39-01

Husqvarna Construction 502 25 39-01

HEIGHT ADJUSTMENT SUPPORT

$

$

Not available

502 25 48-01

Husqvarna Construction 502 25 48-01

SUPPORT SHEET

$

$

Not available

543 04 36-10

Husqvarna Construction 543 04 36-10

MOTOR PULLEY/

$

$

Not available

543 04 37-26

Husqvarna Construction 543 04 37-26

POULIE TENDEUR/

$

$

Not available

543 04 37-27

Husqvarna Construction 543 04 37-27

SPACER PULLEY /

$

$

Not available

543 04 45-90

Husqvarna Construction 543 04 45-90

VIS TH 8/8 6X16 BICHROM/

$

$

Not available

543 04 46-17

Husqvarna Construction 543 04 46-17

VIS TH 8/8 10X35 BICHROM/

$

$

Not available

543 04 46-19

Husqvarna Construction 543 04 46-19

VIS TH 8/8 10X45 BICHROM/NORME

$

$

Not available

543 04 47-07

Husqvarna Construction 543 04 47-07

RONDELLE ACIER M6 BICHRO/

$

$

Currently unavailable

543 04 47-09

Husqvarna Construction 543 04 47-09

WASHER

$1.99

$

Usually ships in 3-10 days

0

543 04 47-10

Husqvarna Construction 543 04 47-10

WASHER

$

$

Not available

543 04 47-19

Husqvarna Construction 543 04 47-19

WASHER

$

$

Not available

543 04 47-19

Husqvarna Construction 543 04 47-19

WASHER

$

$

Not available

543 04 47-19

Husqvarna Construction 543 04 47-19

WASHER

$

$

Not available

543 04 47-20

Husqvarna Construction 543 04 47-20

RONDELLE ACIER L12 BICHR/

$5.25

$

Usually ships in 3-10 days

0

543 04 47-51

Husqvarna Construction 543 04 47-51

NUT

$

$

Not available

543 04 47-51

Husqvarna Construction 543 04 47-51

NUT

$

$

Not available

543 04 47-62

Husqvarna Construction 543 04 47-62

ECROU TENSILOK H M5 BICH/

$

$

Not available

543 04 47-95

Husqvarna Construction 543 04 47-95

CLAVETTE 8X7X40BOUT ROND/

$

$

Not available

543 04 50-66

Husqvarna Construction 543 04 50-66

REDUCTION PLASTIQUE 16X9/

$

$

Not available

543 04 50-67

Husqvarna Construction 543 04 50-67

REDUCTION PLASTIQUE16X13/

$

$

Not available

543 04 50-69

Husqvarna Construction 543 04 50-69

PRESSE ETOUPE PLASTIQ.D9/

$

$

Not available

543 04 50-72

Husqvarna Construction 543 04 50-72

PRESSE ETOUPE PLAST.D13/

$

$

Not available

543 04 50-83

Husqvarna Construction 543 04 50-83

COLLIER SES QUICK 185/46/SL-C

$

$

Not available

543 04 50-93

Husqvarna Construction 543 04 50-93

BARRETTE SUPREM BROCHE/LEG 342

$

$

Not available

543 04 51-00

Husqvarna Construction 543 04 51-00

ATTACHE FIL D/8.5/

$

$

Not available

543 04 51-36

Husqvarna Construction 543 04 51-36

FICHE 16A 380V 3P+N+T 6H/AVEC

$

$

Not available

543 04 51-45

Husqvarna Construction 543 04 51-45

PROLONG. 3P+N+T 16A 6H/

$

$

Not available

543 04 51-54

Husqvarna Construction 543 04 51-54

BARRETTE NEUTRE/LA9D12 959

$

$

Not available

543 04 52-04

Husqvarna Construction 543 04 52-04

PASSE FIL DA 110X150X30/NOIR

$

$

Not available

543 04 52-17

Husqvarna Construction 543 04 52-17

PUMP

$

$

Not available

543 04 52-37

Husqvarna Construction 543 04 52-37

COSSE BLEUE PLAG RDE D5/BFM5

$

$

Not available

543 04 52-54

Husqvarna Construction 543 04 52-54

COSSE EMBOUT 1.5MM/LEG 37664

$

$

Not available

543 04 52-54

Husqvarna Construction 543 04 52-54

COSSE EMBOUT 1.5MM/LEG 37664

$

$

Not available

543 04 52-54

Husqvarna Construction 543 04 52-54

COSSE EMBOUT 1.5MM/LEG 37664

$

$

Not available

543 04 52-54

Husqvarna Construction 543 04 52-54

COSSE EMBOUT 1.5MM/LEG 37664

$

$

Not available

543 04 52-61

Husqvarna Construction 543 04 52-61

CABLE

$

$

Not available

543 04 52-61

Husqvarna Construction 543 04 52-61

CABLE

$

$

Not available

543 04 52-77

Husqvarna Construction 543 04 52-77

CABLE

$

$

Not available

543 04 55-73

Husqvarna Construction 543 04 55-73

HOSE

$

$

Not available

543 04 69-36

Husqvarna Construction 543 04 69-36

MOT 5.5KW/7,5HP 260/440V/2P 50

$

$

Not available

543 04 69-37

Husqvarna Construction 543 04 69-37

MOT 5.5KW/7,5HP 230/400V/2P S2

$

$

Not available

543 06 67-00

Husqvarna Construction 543 06 67-00

COFFRET DEM 25A 400V/

$

$

Not available

543 06 67-02

Husqvarna Construction 543 06 67-02

COFFRET DEM 25A 440V/

$

$

Not available

543 06 67-03

Husqvarna Construction 543 06 67-03

COFFRET DEM 25A 240V/

$

$

Not available

543 06 67-04

Husqvarna Construction 543 06 67-04

RELAY

$

$

Not available

543 06 67-05

Husqvarna Construction 543 06 67-05

RELAI PROT 17 A 25A/

$

$

Not available

725 25 46-51

Husqvarna 725 25 46-51

SCREW EHHM

$5.99

$

Usually ships in 3-10 days

0

725 53 31-01

Husqvarna 725 53 31-01

SCREW IHSCM

$4.99

$

In Stock, only 2 left!

0

727 64 51-51

Husqvarna Construction 727 64 51-51

SCREW

$

$

Not available

728 74 43-00

Husqvarna Construction 728 74 43-00

SCREW IHSETM

$

$

Not available

732 21 18-01

Husqvarna 732 21 18-01

LOCK NUT

$4.99

$

In Stock, Qty 12

0

735 21 73-01

Husqvarna 735 21 73-01

LOCKWASHER

$0.99

$

Usually ships in 3-10 days

0

735 21 73-01

Husqvarna 735 21 73-01

LOCKWASHER

$0.99

$

Usually ships in 3-10 days

0

738 22 01-19

Husqvarna 738 22 01-19

BALL BEARING
(Superseded to 503252301)

$17.99

$

Usually ships in 3-10 days

0
