TS 354 XD - Husqvarna 54" Garden Tractor ENGINE 3 Parts Diagram

54" Garden Tractor

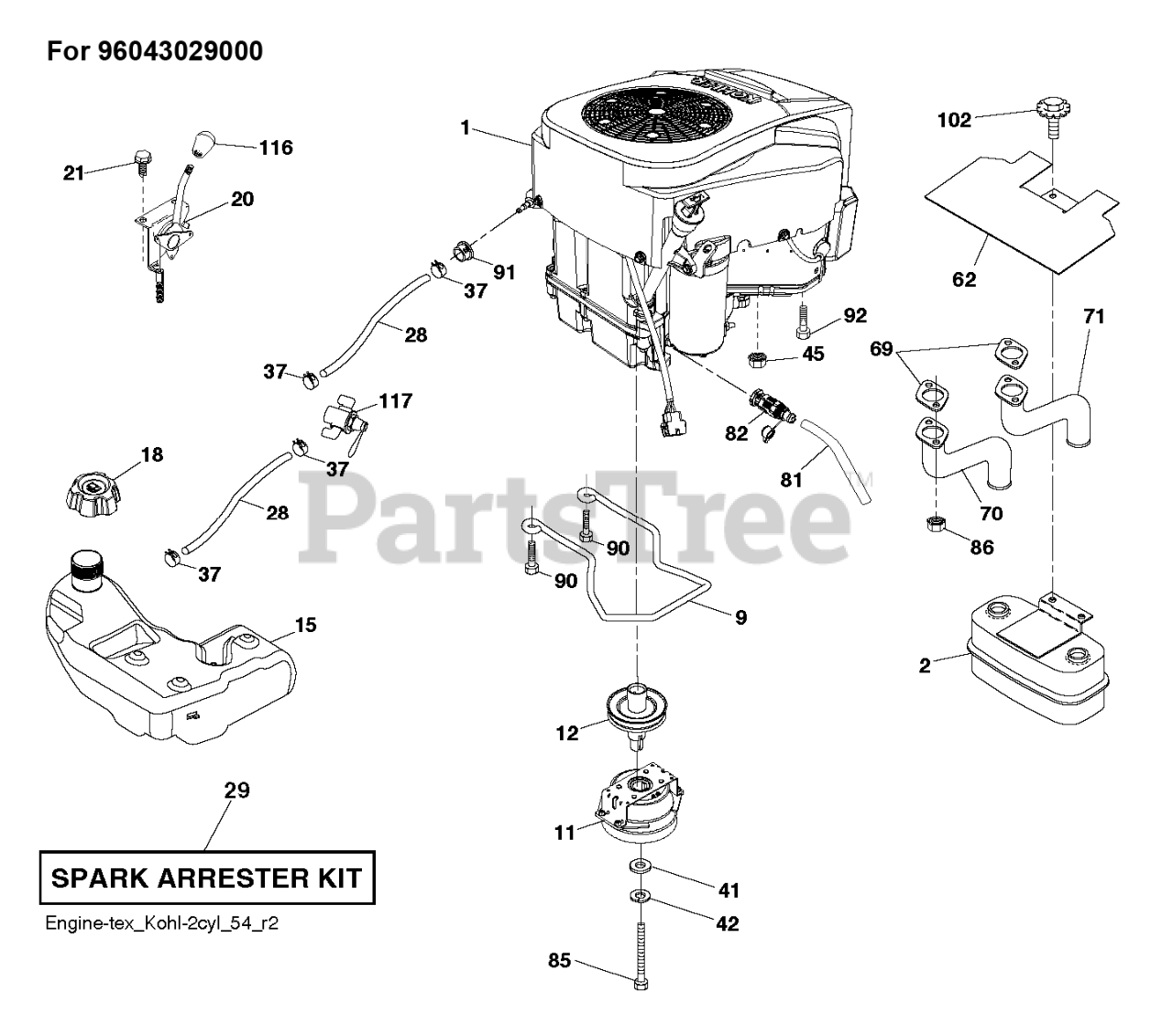

ENGINE 3 Parts Diagram

  • Title

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

9

Husqvarna 596501502

Keepers

$11.99

$

In Stock, Qty 5

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$20.99

$

Usually ships in 3-10 days

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

85

Husqvarna 501606901

BOLT.HEX.7/16-20X3.GR5.YELLOW

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, only 3 left!

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$34.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$20.99

$

In Stock, only 1 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

15

Husqvarna 532438030

Tanks
(Superseded to 529999002)

Note: Fits 2.75" filler neck

$284.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$278.99

$

In Stock, only 1 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

45

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

$4.99

$

In Stock, Qty 16

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: RH

$37.99

$

Usually ships in 3-10 days

0

1

000000000

Note: Engine Kohler Model No. KT745-3093 (596957201) For 96043029000

$

$

Not available

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$51.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 2 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

18

Husqvarna 529989703

FUEL CAP

Note: Fits 2.00" filler neck

$14.99

$

Usually ships in 3-10 days

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: LH

$37.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532438024

Tanks
(Superseded to 529999002)

Note: Fits 2.75" filler neck

$284.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0
