TS 354 XD - Husqvarna 54" Garden Tractor DRIVE 2 Parts Diagram

54" Garden Tractor

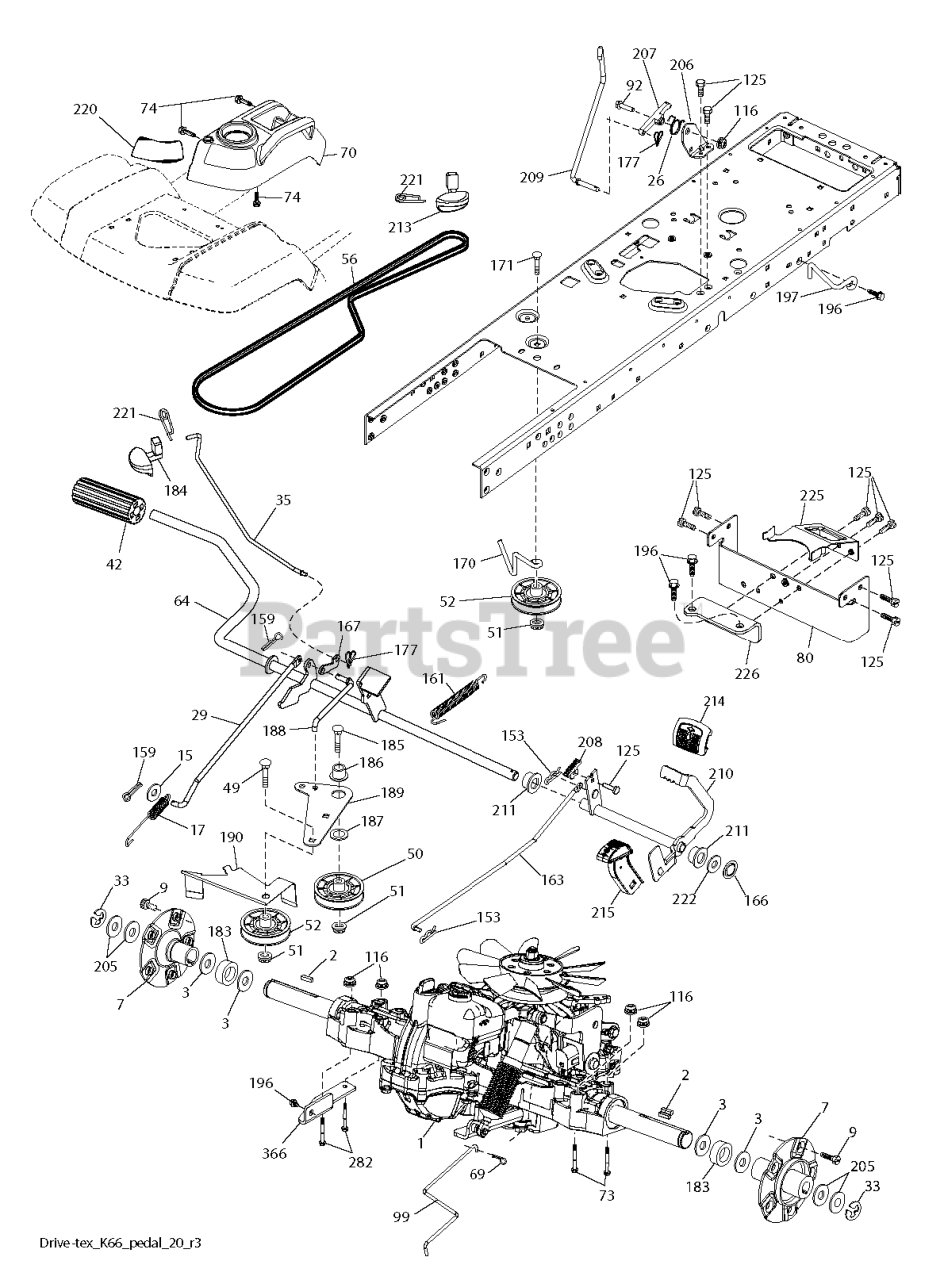

DRIVE 2 Parts Diagram

  • Title

116

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532407245

ROD.BRAKE.K66

$30.99

$

In Stock, only 1 left!

0

69

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

Note: For 96041041900, 96043029000, 96043030500, 96043032100

$6.49

$

Usually ships in 3-10 days

0

210

Husqvarna 532197860

ROCKER.ASM.PEDAL.CONTR

Note: RH

$51.99

$

Usually ships in 3-10 days

0

74

Husqvarna 596134101

Screws

Note: For 96043030500, 96043032100, 96043029000

$3.99

$

In Stock, only 3 left!

0

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.

Note: For 96041041900

$10.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 2 left!

0

9

Husqvarna 596218701

Bolts

Note: For 96043030500, 96043032100, 96043029000

$3.99

$

In Stock, Qty 5

0

70

Husqvarna 532439661

CONSOLE.ASM.RH.GT.FC.HUSQ

$91.99

$

In Stock, only 1 left!

0

2

Husqvarna 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

177

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

Note: For 96043030500, 96043032100, 96043029000

$4.99

$

In Stock, only 1 left!

0

183

Husqvarna 598873002

SPACER.SPLIT;1.00.ID 1.75"

Note: For 96043032100

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 11

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

$5.99

$

Usually ships in 3-10 days

0

183

Husqvarna 587587401

SPACER.SPLIT.1.000IDX1.75

$10.99

$

In Stock, only 1 left!

0

153

Husqvarna 532004497

RETAINER M

$9.99

$

In Stock, Qty 12

0

171

Husqvarna 596136301

Bolts

$3.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

Note: For 96043024500, 96041041900, 96043029000

$6.49

$

Usually ships in 3-10 days

0

1

000000000

Note: TRANSAXLE TUFFTORQ K66ELD (580402201)

$

$

Not available

197

Husqvarna 587402001

BRKT.42.FCS.CLUTCH.ANTIROTATIO

Note: For 96043029000

$6.99

$

In Stock, only 1 left!

0

205

Husqvarna 532123800

WASHER

$7.49

$

In Stock, only 1 left!

0

35

Husqvarna 583864501

ROD .BRAKE. PARKING. GT. HUSQ.

Note: For 96041041900

$7.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

7

Husqvarna 586935402

HUB.PNT.GT.PM.1IN.AXLE.E-DIP

$62.99

$

In Stock, only 2 left!

0

69

Husqvarna 583404901

HAIRPIN.SOFT.ZINC.059X1.125

Note: For 96043024500

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532008883

PEDAL COVER
(Superseded to 510089501)

$6.49

$

In Stock, Qty 14

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

35

Husqvarna 590605902

ROD ROD.PARKINGBRAKE.GT.HUSQ/P

Note: For 96043024500, 96043029000, 96043030500, 96043032100

$9.49

$

In Stock, only 1 left!

0

80

Husqvarna 589333402

STRAP.PNT.TORQUE.K66.EDIP

$26.99

$

Usually ships in 3-10 days

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

215

Husqvarna 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

$20.99

$

In Stock, only 1 left!

0

208

Husqvarna 596564101

Gears

Note: For 96043030500, 96043032100, 96043029000

$5.99

$

In Stock, only 4 left!

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

49

Husqvarna 872110614

BOLT

Note: For 96043024500, 96041041900, 96043029000

$6.49

$

Usually ships in 3-10 days

0

366

Husqvarna 580626202

BRACKET REINFORCEMENT BLACK. E

Note: For 96043029000, 96043030500, 96043032100

$20.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

209

Husqvarna 590527802

ROD ROD.CRUISECONTROL.GT.HUSQ/

Note: For 96043024500, 96043029000, 96043030500, 96043032100

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532007563

WASHER T

$8.99

$

In Stock, only 1 left!

0

226

Husqvarna 532407109

BRACKET.MOUNT.TORQUE.K66.TG

$10.99

$

Usually ships in 3-10 days

0

99

Husqvarna 582404701

ROD.BYPASS.K66

$6.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532169484

RETAINER CLIP

Note: For 96043024500, 96041041900, 96043029000

$

$

Not available

73

Husqvarna 595316601

Bolts

Note: For 96043030500, 96043032100, 96043029000

$4.99

$

In Stock, only 4 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

207

Husqvarna 587031401

LATCH.CONTROL.CRUISE.TEX

Note: For 96043024500, 96041041900, 96043029000

$

$

Not available

184

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

Note: For 96043024500, 96041041900, 96043029000

$6.49

$

In Stock, Qty 20+

0

207

Husqvarna 587031402

Latch

Note: For 96043030500, 96043032100, 96043029000

$6.99

$

Usually ships in 3-10 days

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

366

Husqvarna 580626201

BRACKET.REINFORCEMENT

Note: For 96043024500, 96041041900

$51.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

197

Husqvarna 585658602

Stop

Note: For 96043030500, 96043032100, 96043029000

$5.99

$

In Stock, only 2 left!

0

33

Husqvarna 812000053

E RING HYT

$7.49

$

Usually ships in 3-10 days

0

163

Husqvarna 532407246

ROD.PEDAL.CONTROL

$72.99

$

Usually ships in 3-10 days

0

282

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

225

Husqvarna 532407311

KEEPER.BELT.TRANSAXLE.K66

$13.99

$

In Stock, only 1 left!

0

1

Husqvarna 536879901

ABSORBER

Note: Shock Absorber For Transmission

$159.99

$

Usually ships in 3-10 days

0

49

Husqvarna 596136201

Bolts

Note: For 96043030500, 96043032100, 96043029000

$4.99

$

In Stock, only 1 left!

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

185

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

56

Husqvarna 592855301

BELT.DRIVE.T2.K66
(Superseded to 532125907)

$39.99

$

In Stock, Qty 9

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

220

Husqvarna 532198908

REFLECTOR.RH.TEX GT

Note: RH

$17.99

$

In Stock, only 1 left!

0

159

Husqvarna 596029501

Pins

Note: For 96043030500, 96043032100, 96043029000

$3.99

$

In Stock, only 1 left!

0

170

Husqvarna 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, only 1 left!

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

17

Husqvarna 532401072

SPRING.BRAKE.K46

$8.99

$

In Stock, Qty 10

0

9

Husqvarna 532140080

HUB BOLT

Note: For 96043024500, 96041041900, 96043029000

$3.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197869

GEAR.SECTOR.CONTROL.CR

Note: For 96043024500, 96041041900, 96043029000

$6.49

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

187

Husqvarna 596135501

Washers

$5.99

$

In Stock, Qty 12

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

177

Husqvarna 596029401

GSPW Retainers

Note: For 96043030500, 96043032100, 96043029000

$4.99

$

In Stock, only 1 left!

0

197

Husqvarna 585658601

CLUTCH.ANTIROTATION.WIREFORM.

Note: For 96043024500, 96041041900

$4.99

$

Usually ships in 3-10 days

0

92

Husqvarna 595305701

Screws

$4.99

$

In Stock, only 3 left!

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

Note: For 96043024500, 96041041900, 96043029000

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

Note: For 96043029000, 96043032100

$3.99

$

In Stock, Qty 20+

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

366

Husqvarna 592878002

BRACKETS

Note: For 96043029000, 96043032100

$6.99

$

Usually ships in 3-10 days

0
