TS 354 X (960430244-01) - Husqvarna 54" Garden Tractor (2018-06) ELECTRICAL Parts Diagram

54" Garden Tractor

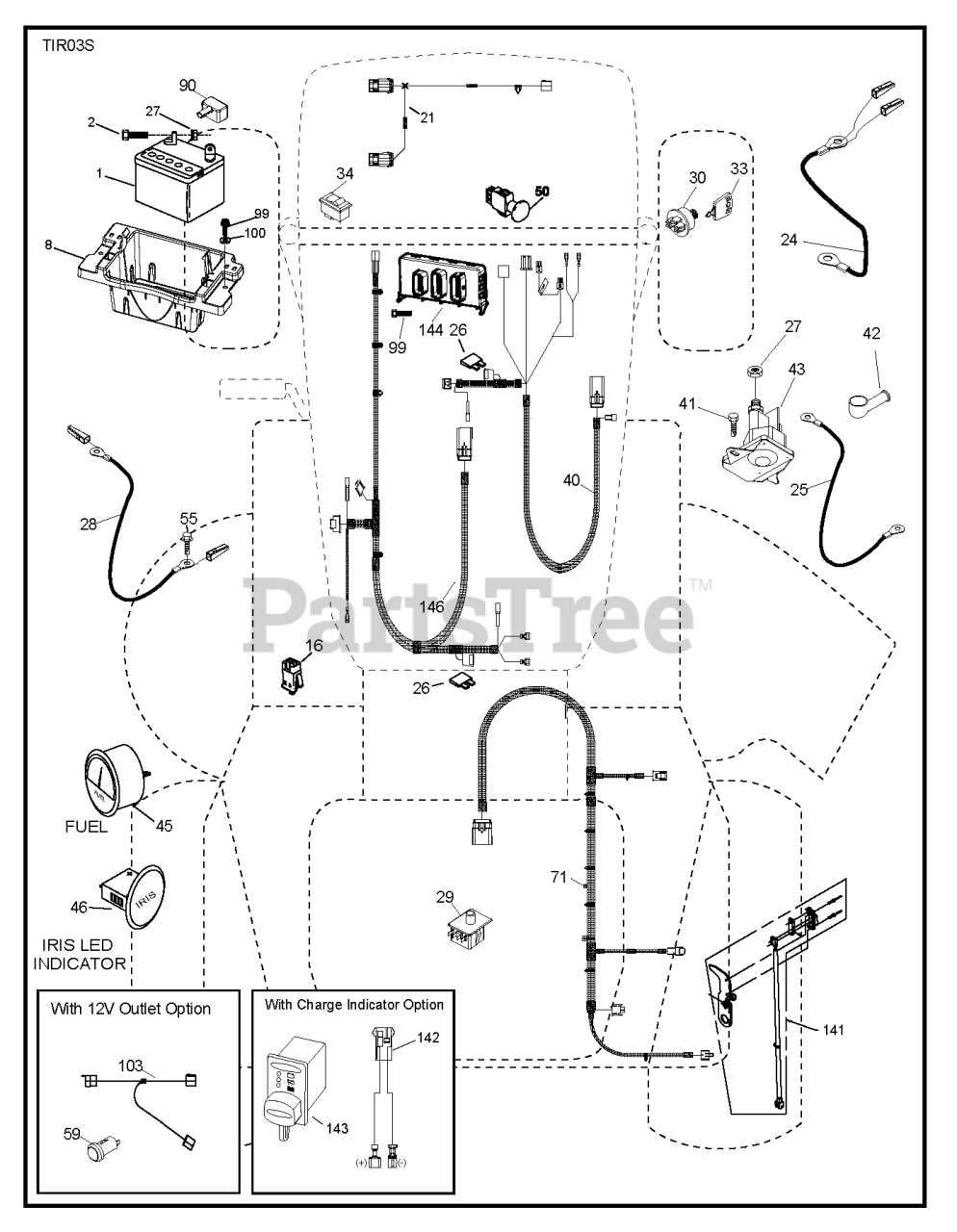

ELECTRICAL Parts Diagram

  • Title
1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532414126

TRAY.ASM.BATTERY.FRT.TEX.CARB

$40.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

21

Husqvarna 585436401

HARNESS LIGHT ASSY TRACTOR,

$26.99

$

Usually ships in 3-10 days

0

24

Husqvarna 590223801

PRIMARY CABLE POSITIVE, TWO HA

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, only 2 left!

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

28

Husqvarna 590223701

GROUND CABLE TWO HARNESS TAPS,

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 587648401

SWITCH SEAT, 4 PIN NC/NO

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$10.99

$

Usually ships in 3-10 days

0

34

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 590193202

WIRING ASSY DASH, IRIS, 300, T

$113.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 16

0

45

Husqvarna 590645901

GAUGE.FUEL.LEVEL. ROUND.2"

$56.99

$

Usually ships in 3-10 days

0

46

Husqvarna 594721501

GAUGE.INDCTR.RND.2"FARIA.6ICNS

$145.99

$

Usually ships in 3-10 days

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$28.99

$

In Stock, Qty 8

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532400303

OUTLET.12-VOLT

$27.99

$

Usually ships in 3-10 days

0

71

Husqvarna 590193301

WIRING ASSY CHASSIS, IRIS, 300

$96.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

100

$6.49

$

Usually ships in 3-10 days

0

141

Husqvarna 532421225

KIT.G700/G730.ROS 71750

$170.99

$

Usually ships in 3-10 days

0

144

Husqvarna 590568001

CONTROL.UNIT.RIDE.ON.IRIS.BASE

$

$

Not available

146

Husqvarna 590193401

WIRING ASSY ENGINE, IRIS, 300,

$56.99

$

In Stock, only 1 left!

0
