TS 354 X (960430243-00) - Husqvarna 54" Garden Tractor (2017-10) SEAT Parts Diagram

54" Garden Tractor

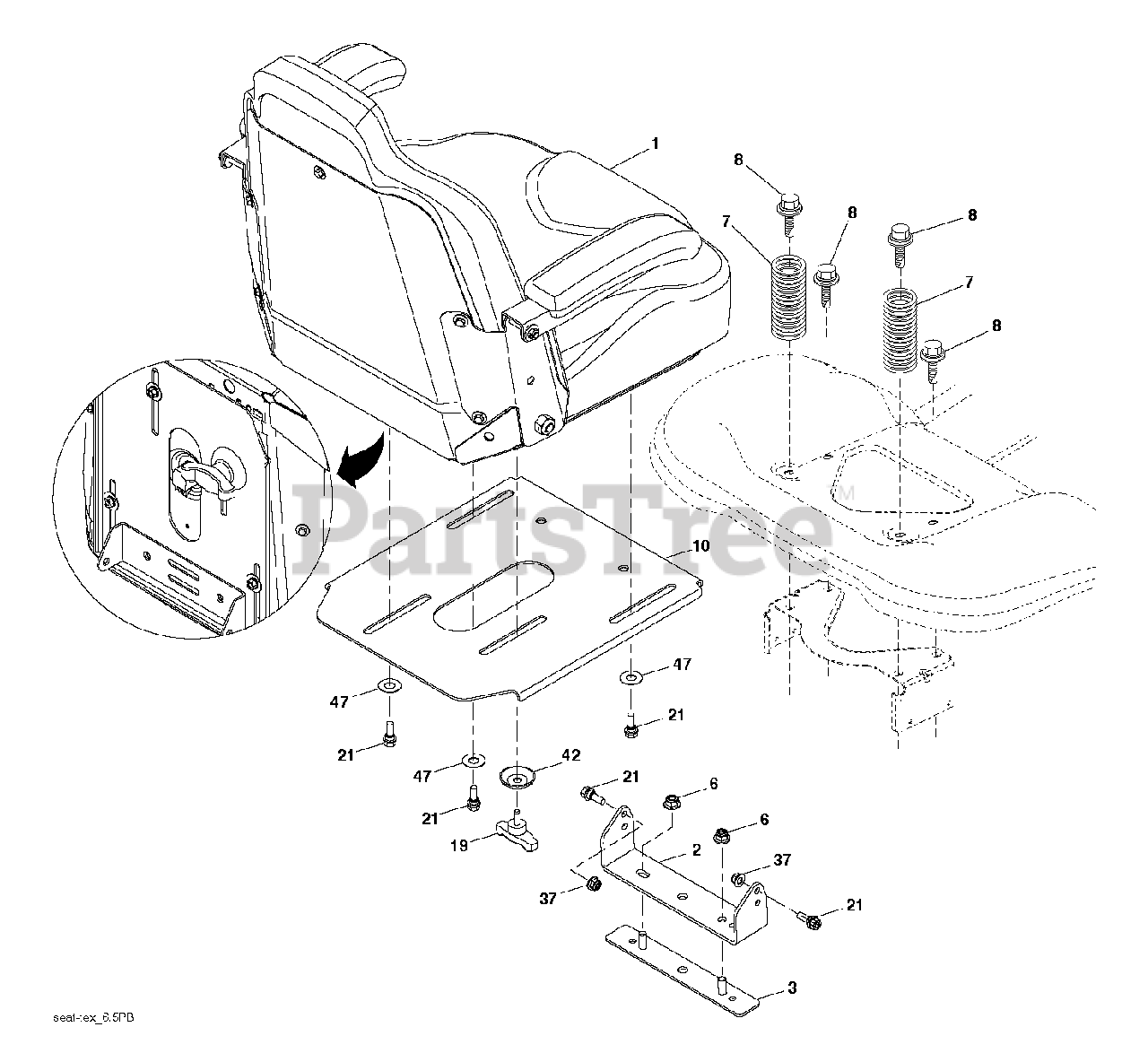

SEAT Parts Diagram

  • Title
1

Husqvarna 590337302

SEAT TRACTOR MZ TRACTOR MZ 907

$683.99

$

Usually ships in 3-10 days

0

2

Husqvarna 590336602

BRACKET PIVOT FENDER SEAT TRAC

$17.99

$

In Stock, only 1 left!

0

3

Husqvarna 590777602

BRACKET ASSEMBLY REINFORCEMENT

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

7

Husqvarna 590812301

SPRING COMPRESSION SEAT 300 SE

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, only 4 left!

0

10

Husqvarna 590481702

Bracket Assembly Plate

$66.99

$

In Stock, only 1 left!

0

19

Husqvarna 590691501

KNOB SEAT 5/16-18X3/4

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

Husqvarna 532199371

WASHER.CUP.SEAT.

$4.99

$

Usually ships in 3-10 days

0

47

Husqvarna 590341101

NEEDS DESCRIPTION

$

$

Currently unavailable
