TS 348 XD (960410437-00) - Husqvarna 48" Garden Tractor (2019-08) MOWER DECK / CUTTING DECK Parts Diagram

48" Garden Tractor

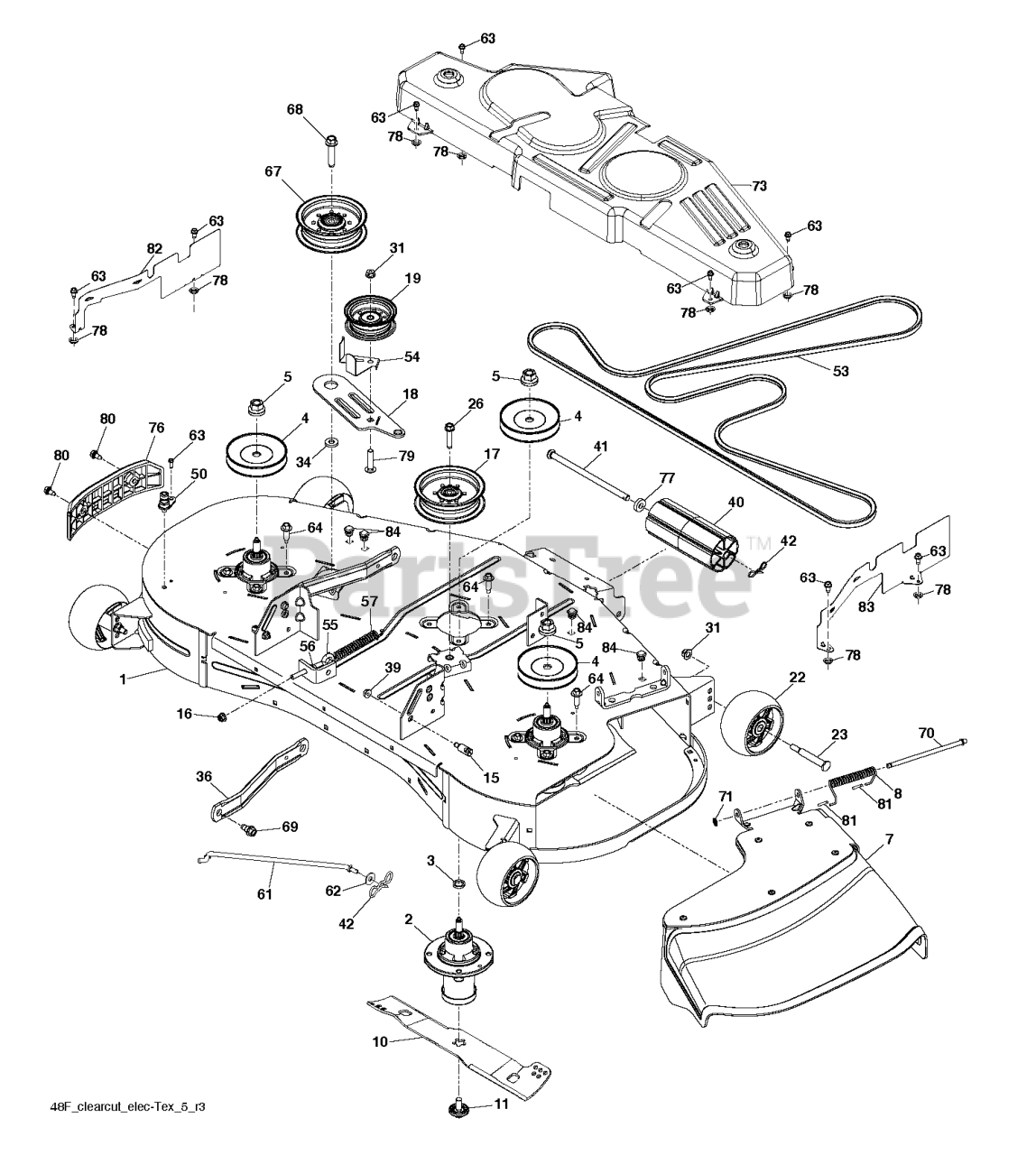

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

11

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

53

Husqvarna 599275701

Belts

$66.99

$

In Stock, Qty 8

0

8

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

50

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

67

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

82

Husqvarna 591204702

SHIELD 48 CLEARCUT EURO TRACTO

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0

5

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 15

0

80

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

79

Husqvarna 596136201

Bolts

$4.99

$

In Stock, only 1 left!

0

84

Husqvarna 596952201

Plugs

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 596274401

Rods

$11.99

$

In Stock, only 3 left!

0

57

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 2 left!

0

56

Husqvarna 596039201

GSPW Hardware

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 596240801

GSPW Bolts

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

69

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

23

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

64

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

1

Husqvarna 583810001

DECK.SVC.48.CC.ASM.668

$797.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 588812202

ARM.PNT.CLUTCHING.EDIP
(Superseded to 529470302)

$7.99

$

In Stock, only 1 left!

0

19

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 5

0

54

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 3 left!

0

10

Husqvarna 591203902

BLADE.48.CC.EURO.RES.BGR.MS431

$68.99

$

Usually ships in 3-10 days

0

7

Husqvarna 593649701

GSPW Deflectors

$96.99

$

In Stock, only 1 left!

0

73

Husqvarna 591204601

COVER 48 CLEARCUT EURO TRACTOR

$31.99

$

Usually ships in 3-10 days

0

31

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

68

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532173434

MANDREL PULLEY

$18.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 596637301

Screws

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 582541103

BUMPER 48 CLEARCUT TRIM SIDE A

$13.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 19

0

34

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

62

Husqvarna 596133201

Washers

$6.99

$

In Stock, only 1 left!

0

41

Husqvarna 594092501

Rods

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

77

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 6

0

83

Husqvarna 591204802

SHIELD 48 CLEARCUT EURO TRACTO

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

36

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

78

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0
