TS 348 XD (960410437-00) - Husqvarna 48" Garden Tractor (2019-08) CHASSIS / FRAME Parts Diagram

48" Garden Tractor

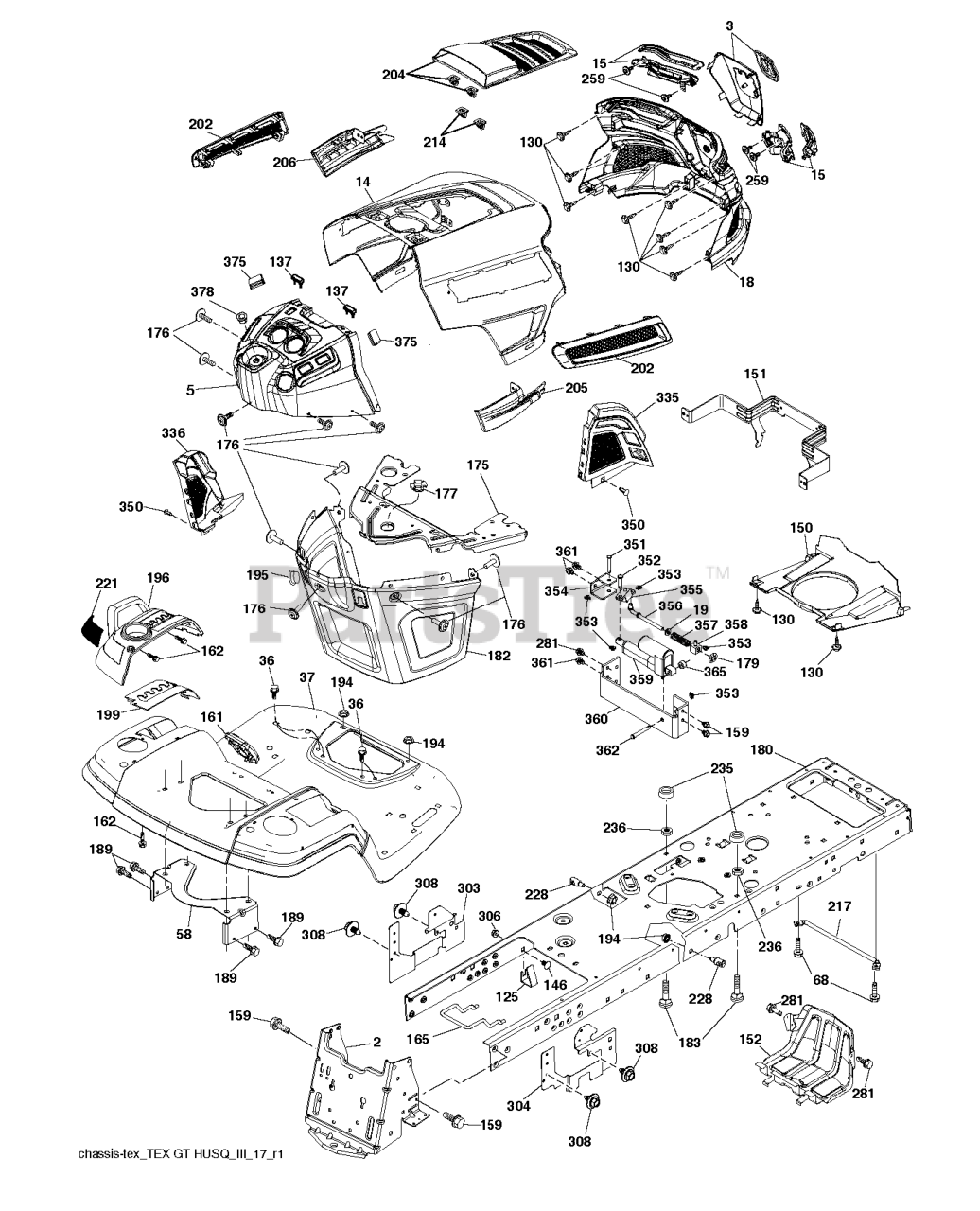

CHASSIS / FRAME Parts Diagram

  • Title

303

Husqvarna 589008102

SHIELD.LWR.LH.LTGT.NON30

$20.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 580434401

DRAWBAR.STGT

$120.99

$

In Stock, only 1 left!

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 597407102

Grilles

$157.99

$

Usually ships in 3-10 days

0

362

Husqvarna 532448633

PIN.CLEVIS.(.375 X 2.42)
(Superseded to 583597901)

$3.99

$

Usually ships in 3-10 days

0

204

Husqvarna 597408001

Vents

$22.99

$

Usually ships in 3-10 days

0

354

Husqvarna 593196901

SUPPORT.DIFF.LOCK.BELLCRANK.

$7.49

$

Usually ships in 3-10 days

0

--

Husqvarna 532431882

KIT GUARD BRUSH
(Superseded to 505568813)

$153.99

$

Usually ships in 3-10 days

0

357

Husqvarna 532448684

SPRING.COMPRESSION
(Superseded to 583598501)

$5.99

$

Usually ships in 3-10 days

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, only 1 left!

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

365

Husqvarna 532447368

SPACER.NYLON.75" X .4375
(Superseded to 583590601)

$4.99

$

Usually ships in 3-10 days

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, only 1 left!

0

356

Husqvarna 532448693

LINK.LOCK.DIFF
(Superseded to 583598601)

$9.99

$

Usually ships in 3-10 days

0

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 3 left!

0

351

Husqvarna 532421734

PIN.CLEVIS.375X2.125

$7.99

$

Usually ships in 3-10 days

0

359

Husqvarna 584393401

ACTUATOR.ELECTRIC

$338.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

361

Husqvarna 596564002

Screws

$3.49

$

Usually ships in 3-10 days

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

In Stock, only 1 left!

0

202

Husqvarna 597867701

Vents

Note: RH

$37.99

$

In Stock, only 2 left!

0

3

Husqvarna 597688201

Covers

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 597867901

Service Kit

Note: LH

$53.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441208

FENDER.PNT.TX.GT.CH/FW/DL.HUSQ

$250.99

$

Usually ships in 3-10 days

0

355

Husqvarna 532448636

BELLCRANK.PIVOT.LOCK.DIFF
(Superseded to 583598101)

$31.99

$

Usually ships in 3-10 days

0

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

$4.99

$

In Stock, only 1 left!

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$85.99

$

Usually ships in 3-10 days

0

259

Husqvarna 596434001

Screws

$3.99

$

Usually ships in 3-10 days

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$96.99

$

In Stock, only 2 left!

0

5

Husqvarna 590748830

DASH.UPPER.ASM.GT2.D_R.PTO.ELC

$45.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$17.99

$

In Stock, only 1 left!

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$37.99

$

Usually ships in 3-10 days

0

304

Husqvarna 589009002

SHIELD.LWR.RH.LTGT.NON30.NOTCH

$17.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$14.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

Usually ships in 3-10 days

0

360

Husqvarna 532448618

BRACKET.ACUATOR
(Superseded to 583597501)

$84.99

$

Usually ships in 3-10 days

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, only 3 left!

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

In Stock, only 2 left!

0

235

Husqvarna 596564201

Spacers

$5.99

$

Usually ships in 3-10 days

0

358

Husqvarna 599128101

SWIVEL.GUIDE

$7.49

$

Usually ships in 3-10 days

0

179

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

180

Husqvarna 593346301

CHASSIS.LT/GT.BOLTED
(Superseded to 582033101)

$265.99

$

Usually ships in 3-10 days

0

183

Husqvarna 595305701

Screws

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 596133201

Washers

$6.99

$

In Stock, only 2 left!

0

58

Husqvarna 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

161

Husqvarna 532439929

CONSOLE.WINDOW.FUEL.HUSQ.GT
(Superseded to 532401826)

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 4 left!

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$17.99

$

In Stock, only 2 left!

0

352

Husqvarna 532448634

PIN.CLEVIS.(.375 X 1.25)
(Superseded to 583598001)

$3.99

$

In Stock, only 1 left!

0

196

Husqvarna 532439716

SUBASM.CONSOLE.HUSQ.GT.DECKLFT

$121.99

$

Usually ships in 3-10 days

0

353

Husqvarna 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

165

Husqvarna 532194330

SUPPORT.TANK.REAR.B/TE

$20.99

$

Usually ships in 3-10 days

0

281

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

199

Husqvarna 532198259

PLATE.DECK.LIFT.HUSQVARNA.GT

$26.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532198909

REFLECTOR.LH.TEX GT HU

Note: LH

$17.99

$

In Stock, only 1 left!

0
