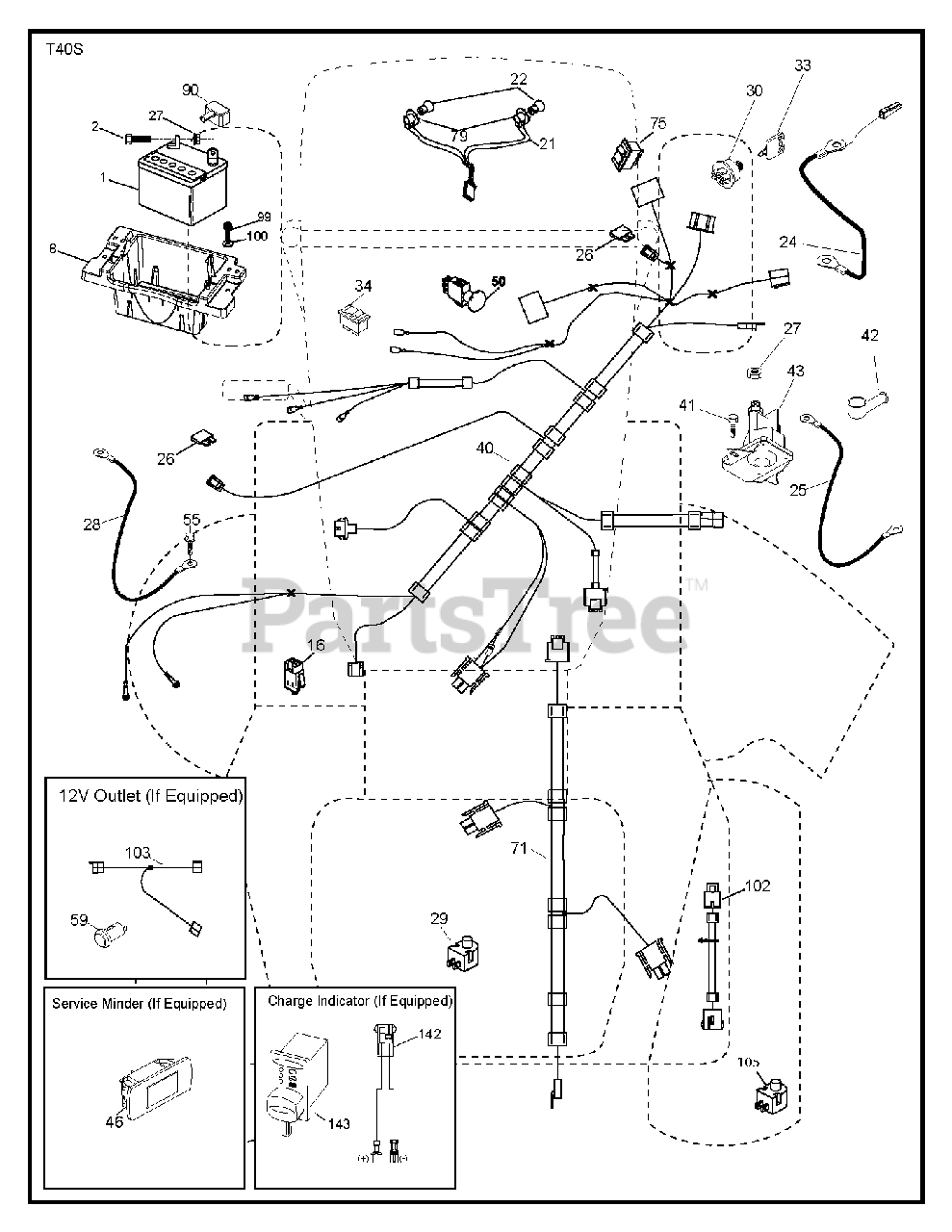

TS 348 D (960430285-00) - Husqvarna 48" Garden Tractor (2017-11) ELECTRICAL Parts Diagram

48" Garden Tractor

ELECTRICAL Parts Diagram

  • Title
1

Husqvarna 532163465

Battery, Dry 30 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532414126

TRAY.ASM.BATTERY.FRT.TEX.CARB

$40.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 585555601

CABLE.FRBATT.W/WIRE.8GA.8

$9.49

$

In Stock, only 2 left!

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, only 2 left!

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

28

Husqvarna 532416588

CABLE.GROUND.21"BLK.8GA.90T

$13.99

$

In Stock, only 2 left!

0

29

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$10.99

$

Usually ships in 3-10 days

0

34

$9.49

$

In Stock, only 4 left!

0

40

Husqvarna 580723502

HARNESS DASH DIFF LOCK HARNESS

$72.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

46

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$28.99

$

In Stock, only 3 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 580513001

HARNESS.IGN.CHASSIS.TEX.DCKLOC

$43.99

$

In Stock, only 1 left!

0

75

Husqvarna 580366401

SWITCH.ON/OFF.(DIFF.LOCK)

$74.99

$

In Stock, only 2 left!

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

100

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0
