TS 343 (960410423-00) - Husqvarna 42" Garden Tractor (2018-10) ENGINE Parts Diagram

42" Garden Tractor

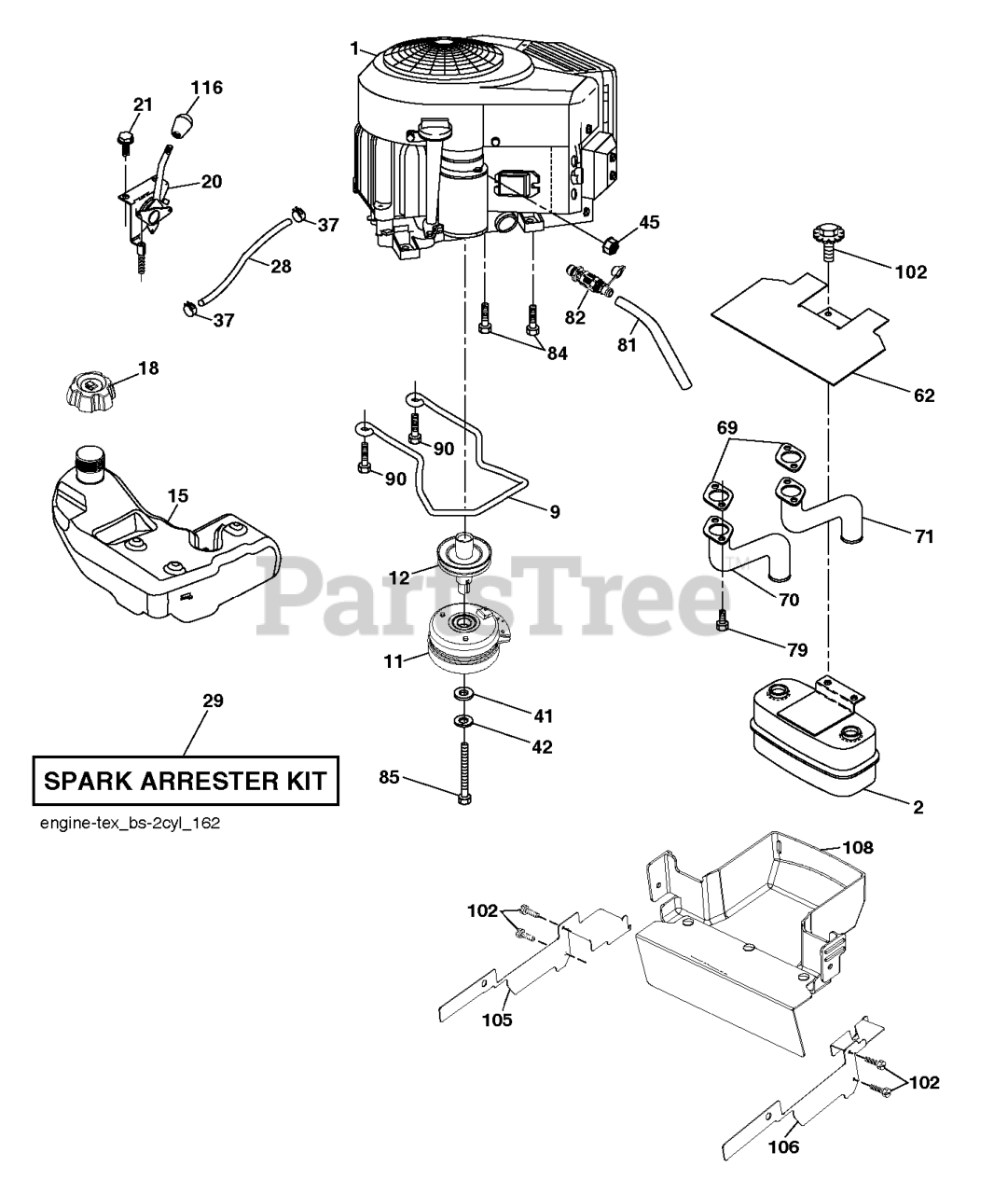

ENGINE Parts Diagram

  • Title

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$9.49

$

In Stock, only 1 left!

0

105

Husqvarna 591204902

SHIELD 48 CLEARCUT EURO TRACTO

Note: Shield Chassis LH

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$51.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$34.99

$

Usually ships in 3-10 days

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$27.99

$

In Stock, only 1 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

1

000000000

Note: Briggs&Stratton 44U677-0018-B1 (595898501)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, only 3 left!

0

108

Husqvarna 592727101

COVER 48 CLEARCUT EURO TRACTOR

$79.99

$

Usually ships in 3-10 days

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 15

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

106

Husqvarna 591205002

SHIELD 48 CLEARCUT EURO TRACTO

Note: Shield Chassis RH

$34.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$278.99

$

Usually ships in 3-10 days

0

18

Husqvarna 584248702

CAP.ASSY.FUEL.3".N-EPA.GRY.498

$17.99

$

In Stock, only 1 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$44.99

$

In Stock, only 1 left!

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available
