TS 342 (960410402-00) - Husqvarna 42" Garden Tractor (2017-01) MOWER DECK / CUTTING DECK Parts Diagram

42" Garden Tractor

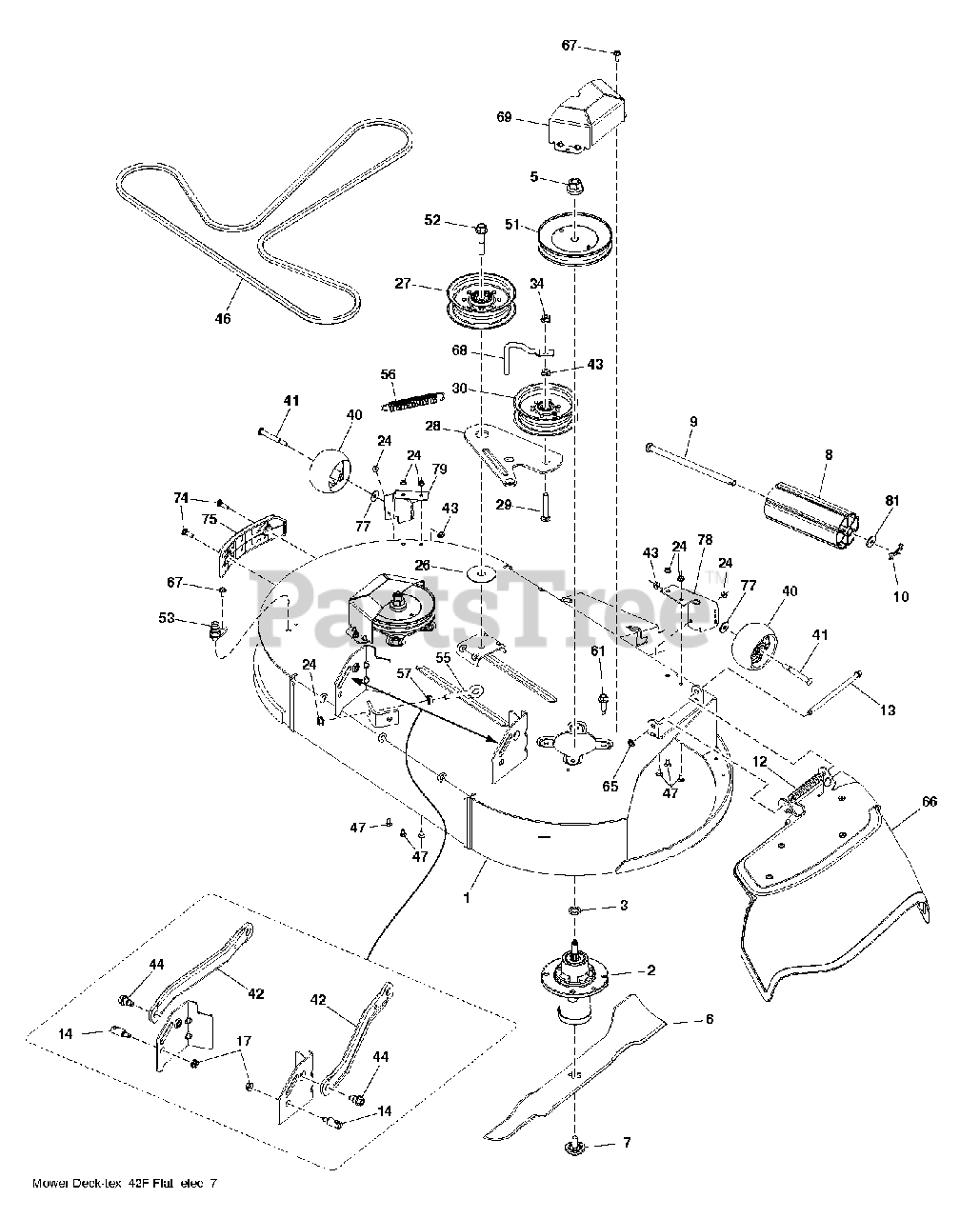

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 582878205

Mower Deck, 42"
(Superseded to 591117901)

$1030.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

6

Husqvarna 586918101

BLADE.42.FCS.BAGGING.BLADE.RAW
(Superseded to 586918102)

$31.99

$

In Stock, only 2 left!

0

7

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

9

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

10

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 12

0

13

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

14

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

17

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 20+

0

28

Husqvarna 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

In Stock, only 1 left!

0

29

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

34

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

42

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

43

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

46

Husqvarna 587270101

BELT.42.FCS.TRACTOR.DECK.DRIVE

$51.99

$

In Stock, only 3 left!

0

47

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

52

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

56

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 587305703

Deflector Assembly, 42" FCS Orange

$91.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

68

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

69

Husqvarna 586936805

COVER.42".MANDREL.FCS.PNT.498

$9.49

$

In Stock, only 1 left!

0

74

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

75

Husqvarna 582683201

BUMPER.42.CLEARCUT.TRIMSDE.ASM

$11.99

$

Usually ships in 3-10 days

0

77

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

78

Husqvarna 501808305

BRACKET.PNT.GA-WHEEL.FCS.42.RH

$26.99

$

Usually ships in 3-10 days

0

79

Husqvarna 501801605

BRACKET.PNT.GA-WHEEL.FCS.42.LH
(Superseded to 590439005)

$20.99

$

Usually ships in 3-10 days

0

81

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 6

0

--

Husqvarna 588822601

DECK ASM SVCX.42F.EL.GW.WP.498

$1367.99

$

Usually ships in 3-10 days

0
