TS 342 (960410386-01) - Husqvarna 42" Garden Tractor (2018-12) MOWER DECK / CUTTING DECK Parts Diagram

42" Garden Tractor

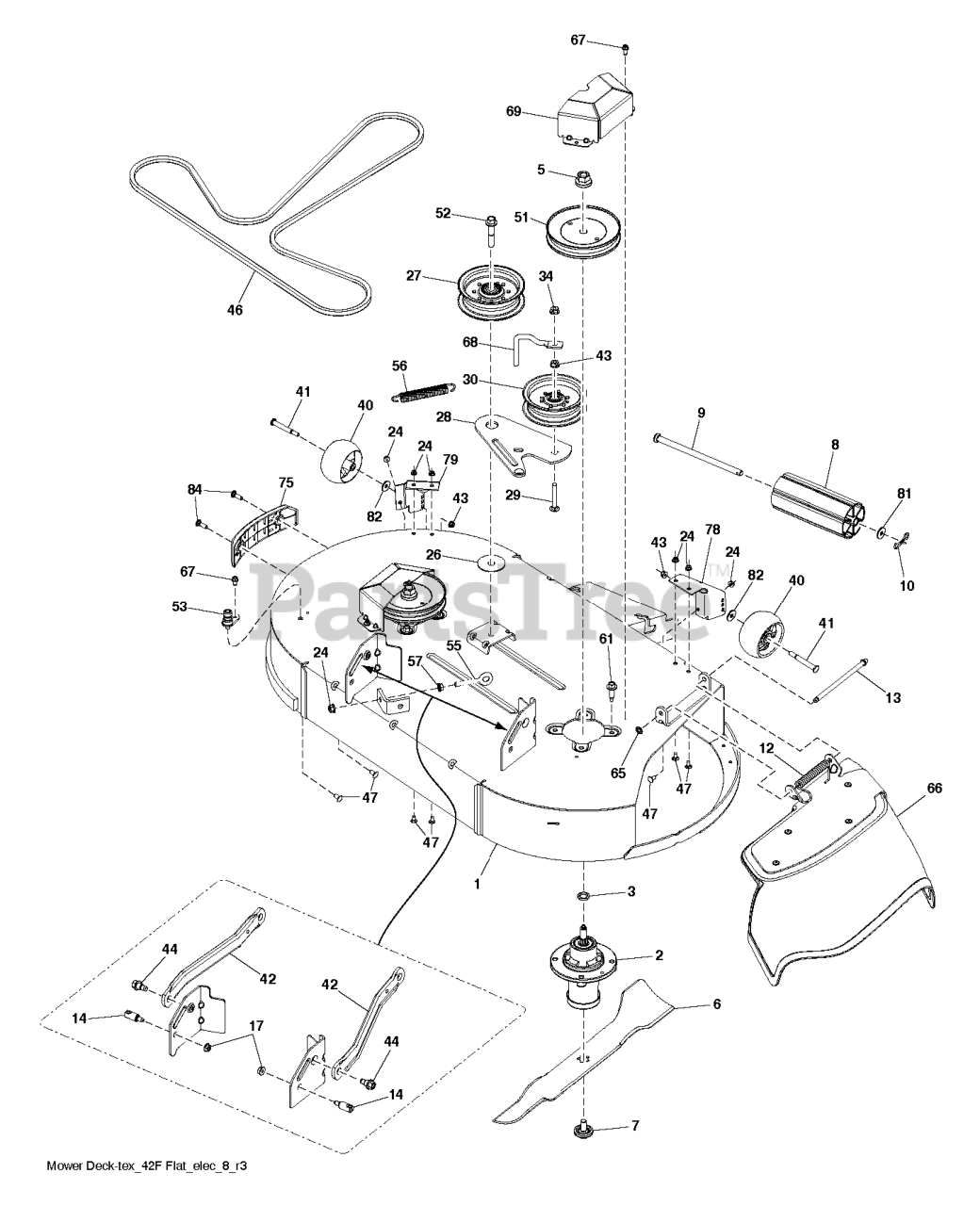

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
56

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

Usually ships in 3-10 days

0

43

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 587270101

BELT.42.FCS.TRACTOR.DECK.DRIVE

$51.99

$

In Stock, only 3 left!

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

40

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

52

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

78

Husqvarna 501808305

BRACKET.PNT.GA-WHEEL.FCS.42.RH

$26.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

Husqvarna 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

In Stock, only 1 left!

0

5

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, only 2 left!

0

66

Husqvarna 587305703

DEFLECTOR.ASM.42.FCS.GREY

$91.99

$

Usually ships in 3-10 days

0

$6.99

$

Usually ships in 3-10 days

0

69

Husqvarna 586936805

COVER.42".MANDREL.FCS.PNT.498

$9.49

$

In Stock, only 1 left!

0

30

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

9

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

7

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

79

Husqvarna 590439005

BRACKET.PNT.GA-WHEEL.42FCS.LH

$20.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

27

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 20+

0

29

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

17

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

68

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

81

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 6

0

67

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

--

Husqvarna 588822601

DECK ASM SVCX.42F.EL.GW.WP.498

$1367.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

82

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

84

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 7

0

10

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 586918101

BLADE.42.FCS.BAGGING.BLADE.RAW
(Superseded to 586918102)

$31.99

$

In Stock, only 2 left!

0

61

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 588822501

DECK SVCX 42F X498
(Superseded to 591117901)

$1030.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

34

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 12

0

44

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

14

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

75

Husqvarna 582683203

BUMPER.42CC.TRIM.SIDE.ASSY.HUS

$11.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0
