TS 254 XG (960430311-00) - Husqvarna 54" Garden Tractor (2019-07) MOWER DECK / CUTTING DECK Parts Diagram

54" Garden Tractor

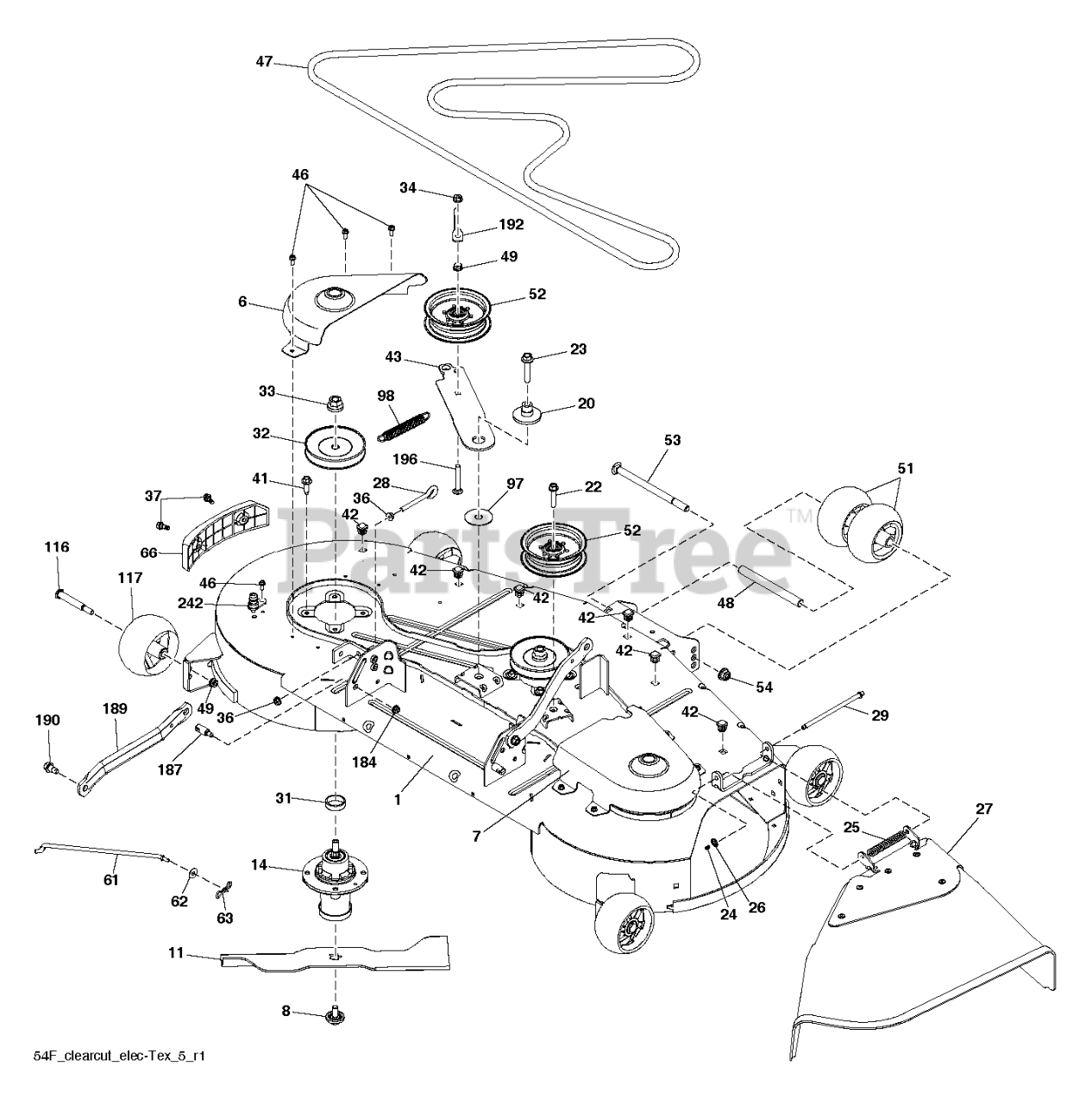

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

11

Husqvarna 582760502

BLADE CC54 PZ STYLE HI LIFT BL

$39.99

$

In Stock, only 4 left!

0

51

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

36

Husqvarna 596039201

GSPW Hardware

$3.99

$

In Stock, Qty 20+

0

196

Husqvarna 596337801

Bolts

$5.99

$

In Stock, Qty 13

0

43

Husqvarna 582219602

ARM IDLER ARM, CLEARCUT 54 BLA

$5.99

$

Usually ships in 3-10 days

0

33

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 19

0

34

Husqvarna 596322601

Nuts

$3.99

$

In Stock, Qty 9

0

61

Husqvarna 596274401

Rods

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 590304203

COVER 54 CLEARCUT RH MANDREL G

$26.99

$

In Stock, only 1 left!

0

20

Husqvarna 532197236

SPACER.IDLER.PULLY.HUB

$9.49

$

Usually ships in 3-10 days

0

116

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

48

Husqvarna 574196502

Tubes

$24.99

$

In Stock, only 1 left!

0

192

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

184

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 3 left!

0

189

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 598579501

Replacement Mowe
(Superseded to 592618801)

Note: COMPLETE

$1367.99

$

Usually ships in 3-10 days

0

98

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 2 left!

0

53

Husqvarna 594944501

Bolts

$9.49

$

In Stock, Qty 8

0

117

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

97

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

187

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 582236301

BELT CLEARCUT 54, TRACTOR DECK

$72.99

$

In Stock, only 1 left!

0

14

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 5

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 14

0

28

Husqvarna 596240801

GSPW Bolts

$4.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0

42

Husqvarna 596952201

Plugs

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

54

Husqvarna 521991102

NUT 1/2-13 HEX FLANGE NYLOK CL

$4.99

$

In Stock, Qty 7

0

6

Husqvarna 590304303

COVER 54 CLEARCUT, LH MANDREL,

$11.99

$

Usually ships in 3-10 days

0

66

Husqvarna 590732501

BUMPER ASSY 54 CLEARCUT TRIM S

$10.99

$

In Stock, only 4 left!

0

27

Husqvarna 590632201

DEFLECTOR ASSY 54 CLEARCUT RES

$74.99

$

In Stock, Qty 8

0

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

190

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 7

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 11

0

62

Husqvarna 596133201

Washers

$6.99

$

In Stock, only 2 left!

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

1

Husqvarna 592618801

SERVICE KIT KIT.SVC.WELDMENT.5

$1367.99

$

Usually ships in 3-10 days

0
