TS 254 G (960410445-00) - Husqvarna 54" Garden Tractor (2019-08) ENGINE Parts Diagram

54" Garden Tractor

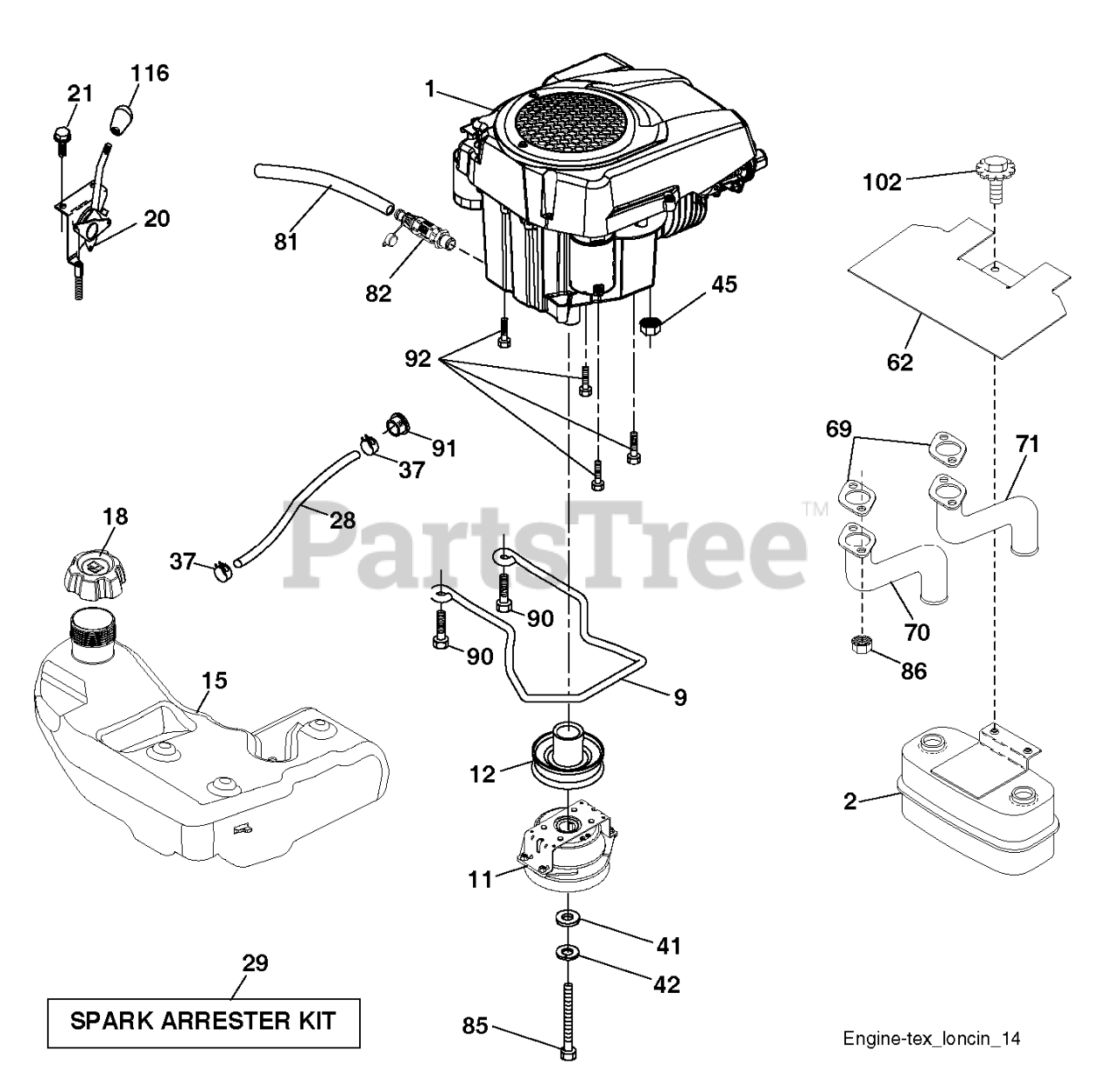

ENGINE Parts Diagram

  • Title

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 586219601

CONTROL.THROTTLE/CHOKE.PRO.45

$80.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

85

Husqvarna 501606901

BOLT.HEX.7/16-20X3.GR5.YELLOW

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596501502

Keepers

$11.99

$

In Stock, Qty 5

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 5

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 1 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$278.99

$

In Stock, only 1 left!

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 584248702

CAP.ASSY.FUEL.3".N-EPA.GRY.498

$17.99

$

In Stock, only 1 left!

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$51.99

$

In Stock, only 4 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

$2.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 598632103

NEEDS DESCRIPTION

Note: Engine Husqvarna Model No. HV 764cc. Engine IPL available separately.

$

$

Currently unavailable

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0
