TS 248 XD - Husqvarna 48" Garden Tractor (Original) ENGINE Parts Diagram

48" Garden Tractor

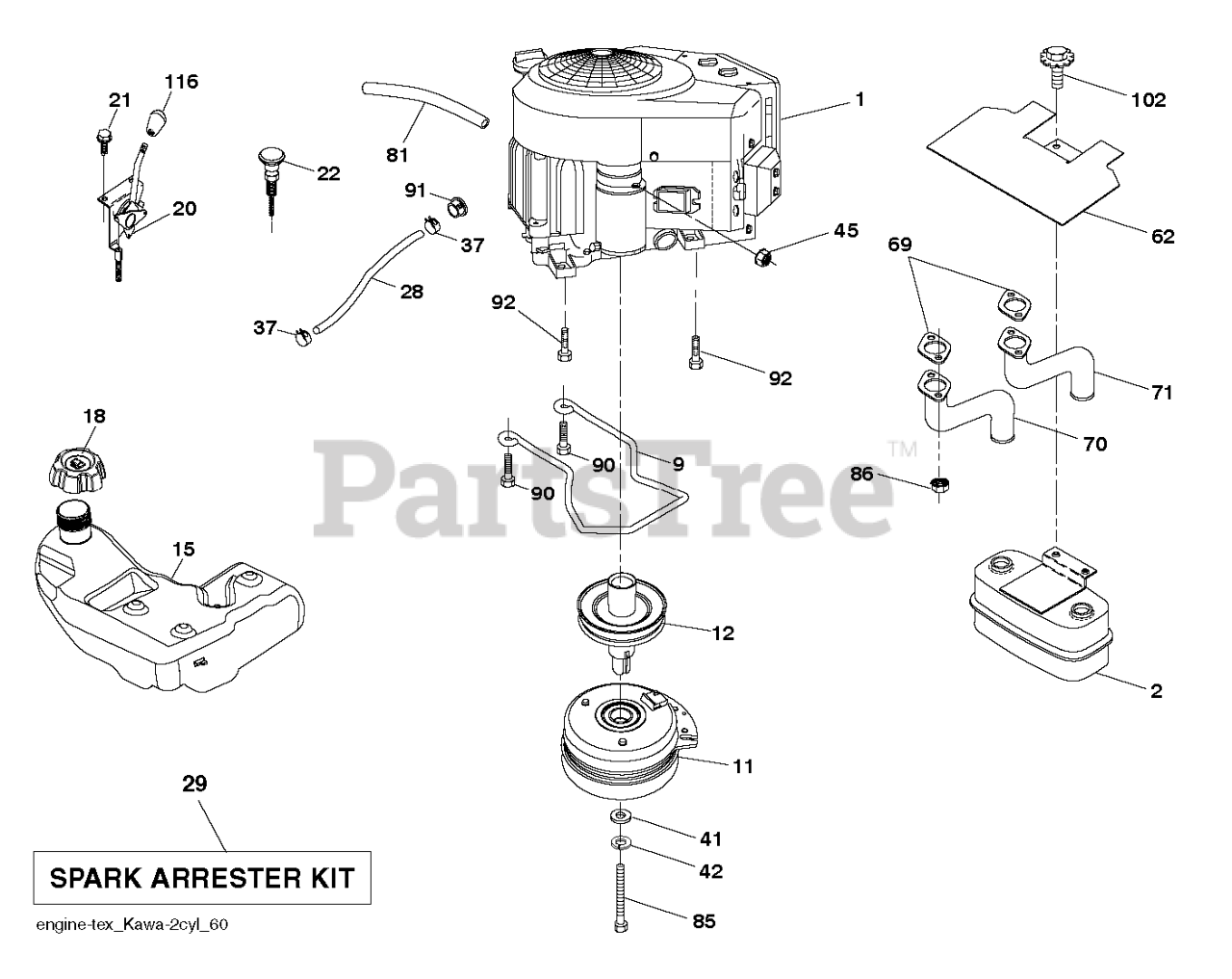

ENGINE Parts Diagram

  • Title

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$22.99

$

In Stock, only 4 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

In Stock, Qty 5

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$56.99

$

In Stock, Qty 20+

0

62

Husqvarna 531154901

SERVICE KIT HEAT SHIELD

$13.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 532187768

CONTROL.CHOKE.ERGO.BLACK

$37.99

$

In Stock, only 1 left!

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

Note: For 96043030900

$37.99

$

In Stock, only 2 left!

0

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

$26.99

$

In Stock, only 2 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

102

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

1

000000000

Note: ENGINE KAWASAKI MODEL NO. FR691-DS15 (581557501)

$

$

Not available

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$319.99

$

In Stock, only 1 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$28.99

$

Usually ships in 3-10 days

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$6.99

$

In Stock, only 2 left!

0

15

Husqvarna 529998402

TANK ASSY W/CAP 4 GAL EPA

$

$

Not available

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, only 2 left!

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 596321701

Screws

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

9

Husqvarna 596501502

Keepers

$13.99

$

In Stock, Qty 5

0
