TS 242 XD - Husqvarna 42" Garden Tractor (Original) MOWER DECK / CUTTING DECK 2 Parts Diagram

42" Garden Tractor

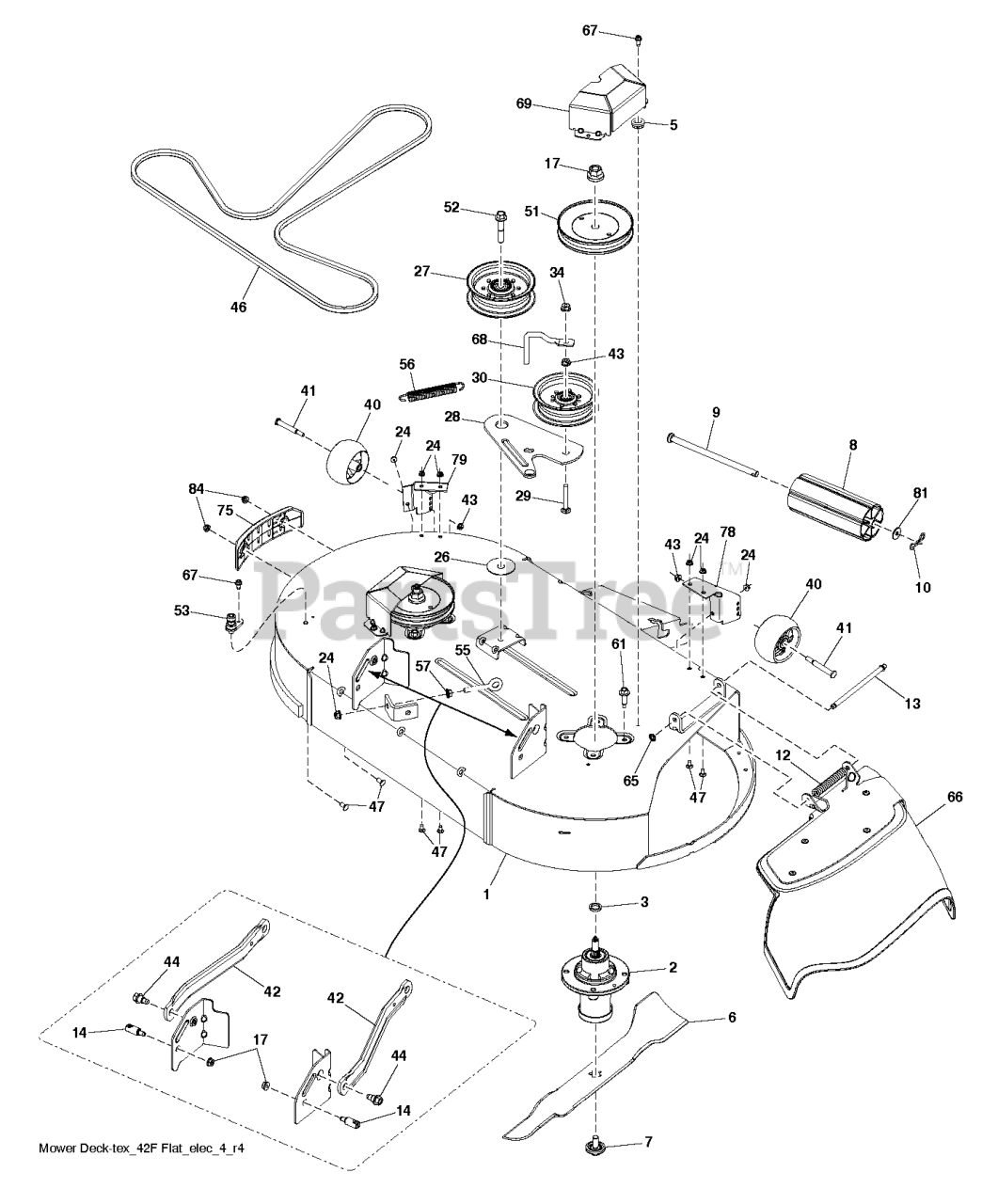

MOWER DECK / CUTTING DECK 2 Parts Diagram

  • Title

7

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

75

Husqvarna 582683203

BUMPER.42CC.TRIM.SIDE.ASSY.HUS

$11.99

$

Usually ships in 3-10 days

0

56

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 2 left!

0

12

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

28

Husqvarna 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

Usually ships in 3-10 days

0

40

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 586918102

BLADE.42.FCS.BAGGING.BLADE.

$31.99

$

Usually ships in 3-10 days

0

13

Husqvarna 595297001

Rods

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

43

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 596240801

GSPW Bolts

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 587939001

DECK SVC.42F.668
(Superseded to 591117901)

$1030.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

79

Husqvarna 590439002

BRACKET.PNT.GA-WHEEL.42FCS.LH

Note: (590439002) BRACKET LH

$20.99

$

Usually ships in 3-10 days

0

69

Husqvarna 586936805

COVER.42".MANDREL.FCS.PNT.498

$9.49

$

In Stock, only 1 left!

0

26

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

78

Husqvarna 501808302

BRACKET.PNT.GA-WHEEL.FCS.42.RH

$22.99

$

In Stock, only 1 left!

0

2

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0

- -

Husqvarna 598510301

Decks
(Superseded to 587939001)

$1030.99

$

Usually ships in 3-10 days

0

47

Husqvarna 595901601

GSPW Bolts

$3.99

$

In Stock, Qty 20+

0

66

Husqvarna 587305701

DEFLECTOR.ASM.42.FCS.ORANGE

$87.99

$

Usually ships in 3-10 days

0

81

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 6

0

17

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

30

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

53

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

42

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 596039201

GSPW Hardware

$3.99

$

In Stock, Qty 20+

0

84

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

9

Husqvarna 594092501

Rods

$6.99

$

In Stock, Qty 20+

0

41

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

46

Husqvarna 587270101

BELT.42.FCS.TRACTOR.DECK.DRIVE

$51.99

$

In Stock, only 2 left!

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

27

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 19

0

68

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

52

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

29

Husqvarna 596337801

Bolts

$5.99

$

In Stock, Qty 11

0

61

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

51

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

5

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 15

0

10

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 596322601

Nuts

$3.99

$

In Stock, Qty 6

0
