TS 242 XD - Husqvarna 42" Garden Tractor (Original) ENGINE 2 Parts Diagram

42" Garden Tractor

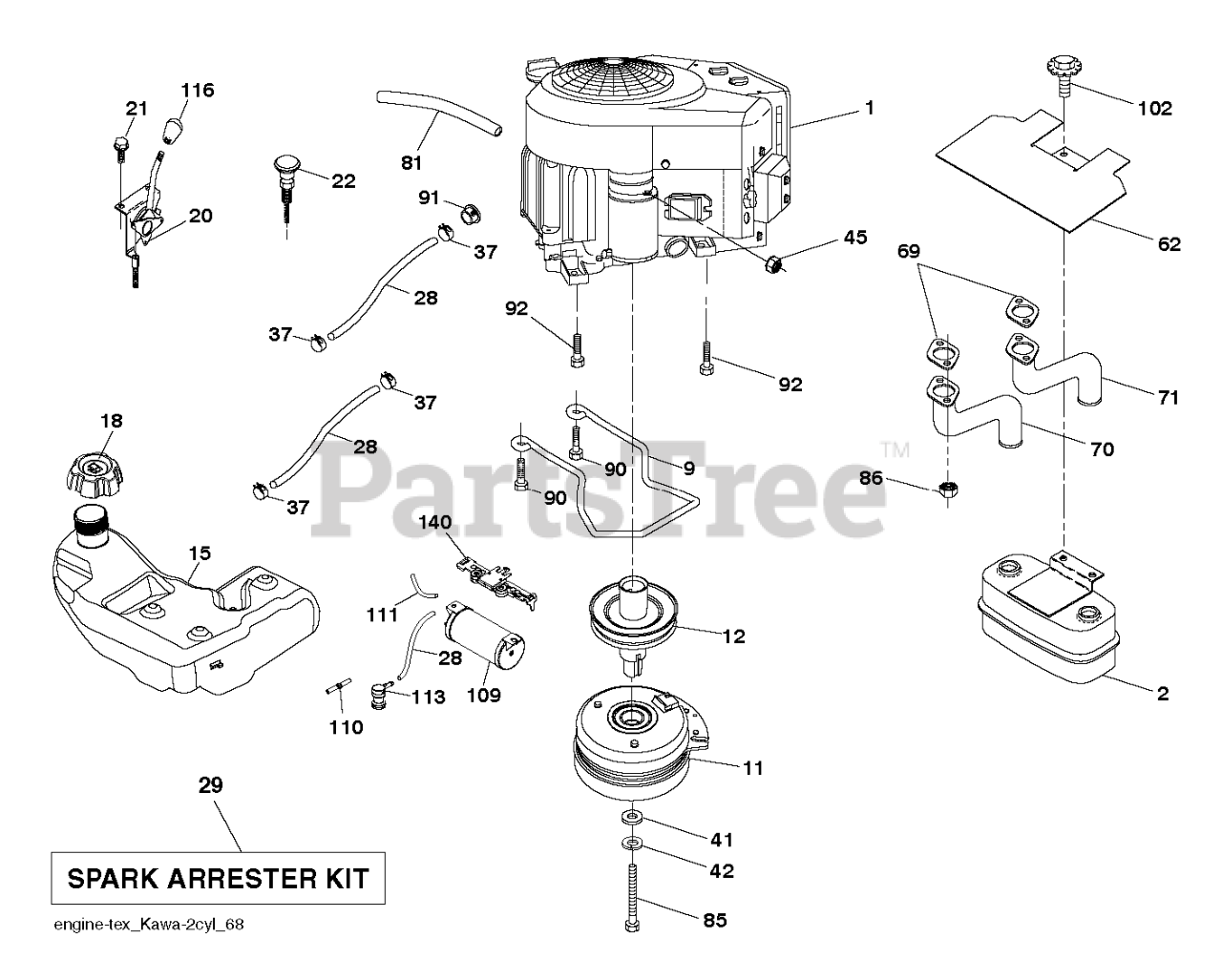

ENGINE 2 Parts Diagram

  • Title

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 96043030700

$20.99

$

In Stock, only 1 left!

0

140

Husqvarna 585977301

BRACKET BRACKET, CARBON CAN, F

Note: For 96043031300

$6.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, only 3 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

Note: For 96043030700, 96043033800

$20.99

$

In Stock, only 2 left!

0

15

Husqvarna 599306102

TANK ASSY W/CAP 4 GAL CARB

Note: For 96043031300

$376.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596501502

Keepers

$11.99

$

In Stock, Qty 5

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

109

Husqvarna 585977401

CANISTER CARB, FLEX TECH, 6.3

Note: For 96043031300

$48.99

$

Usually ships in 3-10 days

0

18

Husqvarna 529989703

FUEL CAP

Note: Fits 2.00" filler neck

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$278.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$51.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$20.99

$

Usually ships in 3-10 days

0

18

Husqvarna 599502201

Fuel Caps

Note: Fits 2.75" filler neck. For 96043031300

$60.99

$

Usually ships in 3-10 days

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$9.49

$

In Stock, only 1 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

102

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

$20.99

$

In Stock, only 2 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

111

Husqvarna 587044580

Hoses

Note: For 96043031300

$11.99

$

In Stock, only 1 left!

0

22

Husqvarna 532187768

CONTROL.CHOKE.ERGO.BLACK

$37.99

$

In Stock, only 2 left!

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 529998402

TANK ASSY W/CAP 4 GAL EPA

Note: For 96043033800, 96043030700

$

$

Not available

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

113

Husqvarna 597791601

VALVES

Note: For 96043031300

$11.99

$

Usually ships in 3-10 days

0

1

000000000

Note: Engine Kawa Model No. FR651V (593006001)

$

$

Not available

62

Husqvarna 531154901

SERVICE KIT HEAT SHIELD

$13.99

$

In Stock, only 1 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

Note: For 96043031300

$27.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$34.99

$

Usually ships in 3-10 days

0
