TS 242 XD (960430307-00) - Husqvarna 42" Garden Tractor (2019-07) ENGINE Parts Diagram

42" Garden Tractor

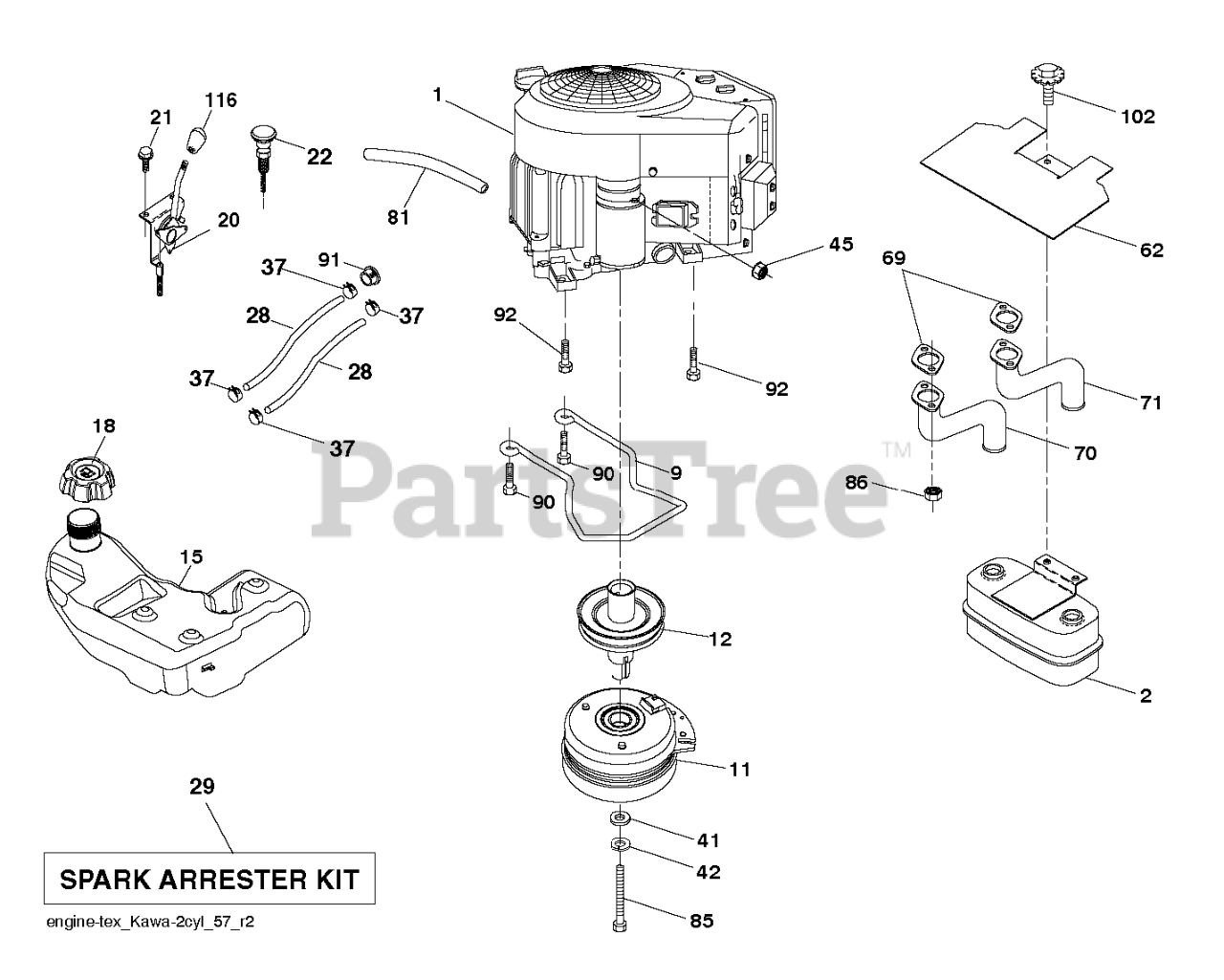

ENGINE Parts Diagram

  • Title
70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

In Stock, only 1 left!

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

$34.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

$8.99

$

In Stock, only 3 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

$278.99

$

Usually ships in 3-10 days

0

$2.49

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

In Stock, only 1 left!

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$20.99

$

In Stock, only 1 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$51.99

$

In Stock, only 4 left!

0

$3.99

$

In Stock, Qty 15

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, only 3 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

$9.49

$

In Stock, only 1 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 3 left!

0

45

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532438029

Tanks
(Superseded to 598731101)

$194.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

1

000000000

Note: Engine Kawa Model No. FR651V (593006001)

$

$

Not available

42

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 2 left!

0
