TS 238 (960410369-02) - Husqvarna 38" Garden Tractor (2015-07) MOWER DECK / CUTTING DECK Parts Diagram

38" Garden Tractor

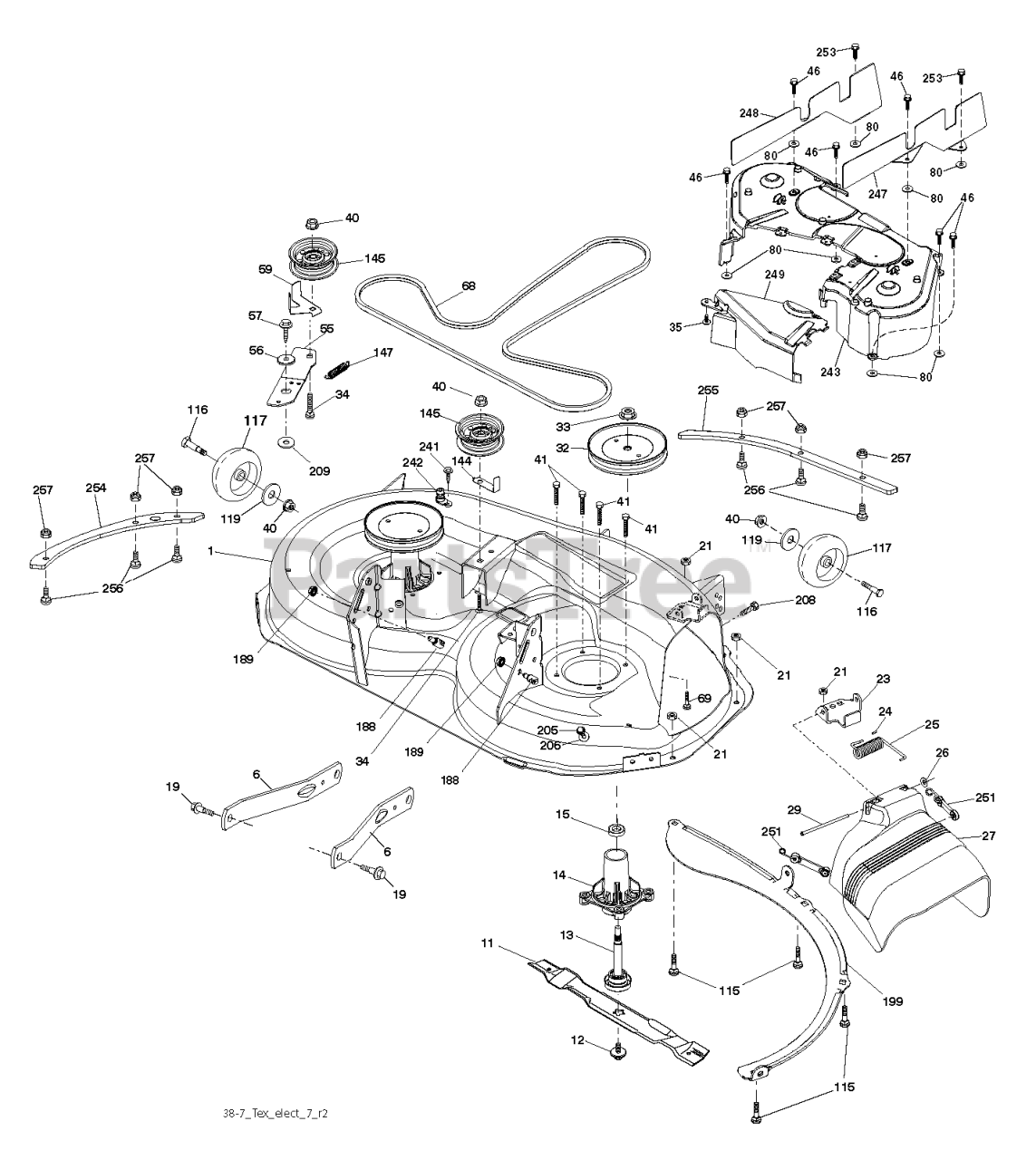

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

208

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

255

Husqvarna 587055402

PLATES.38 DECK RNFRC X431

$14.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532197249

IDLER.ARM

$

$

Not available

41

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0

256

Husqvarna 578296404

SCREW.BUTTONHEAD.1/4-20X1

$

$

Not available

35

Husqvarna 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

116

Husqvarna 532004898

BOLT.SHLD."A"2.41."B"1.66

$

$

Not available

- -

Husqvarna 588622401

DECK.ASM.SVC.38-8"3N1.C.2GW.TX

$909.99

$

Usually ships in 3-10 days

0

243

Husqvarna 532406510

COVER DECK 38-7
(Superseded to 583298801)

$51.99

$

Usually ships in 3-10 days

0

115

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

253

Husqvarna 532427350

SCREW
(Superseded to 583441001)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 581116301

BLADE.2 IN 1.38"DECK
(Superseded to 581116302)

$17.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

15

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED

$14.99

$

In Stock, only 1 left!

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 532401618

SHIELD ASM.DFLCTR MWR.38-7"BLK

$

$

Not available

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

80

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

257

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

- -

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: MANDERL ASSEMBLY (Includes (Key # 14), Shaft Assembly (Key # 13) and Bearing Only (Key # 15) - Pulley/Nut/Washer and Blade Bolt/Washers Not Included)

$56.99

$

In Stock, Qty 20+

0

147

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

199

Husqvarna 532400095

BAFFLE.VORTEX.FRONT.38"

$18.99

$

Usually ships in 3-10 days

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

13

Husqvarna 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

205

Husqvarna 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

251

Husqvarna 532436087

ELASTIC STRAP KIT
(Superseded to 583508201)

$14.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532193414

KEEPER BELT

$6.49

$

In Stock, only 1 left!

0

249

Husqvarna 532406514

COVER CABLE CLUTCH
(Superseded to 583298901)

$20.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 16

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

247

Husqvarna 589009402

GUARD DECK.38IN.RH.ISO X431 BL

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

68

Husqvarna 532447559

BELT BELT 38' ELEC. DECK
(Superseded to 583591101)

$109.99

$

Usually ships in 3-10 days

0

117

Husqvarna 589527401

WHEEL.GAUGE.RALLY.NARROW

$11.99

$

In Stock, Qty 8

0

254

Husqvarna 587055902

PLATES.38 DECK RNFRC X431FRONT

$14.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532410715

DECK SVC 38" 199770X498

$399.99

$

Usually ships in 3-10 days

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

248

Husqvarna 589009502

GUARD.DECK.38IN.LH.X431

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

206

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

209

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available
