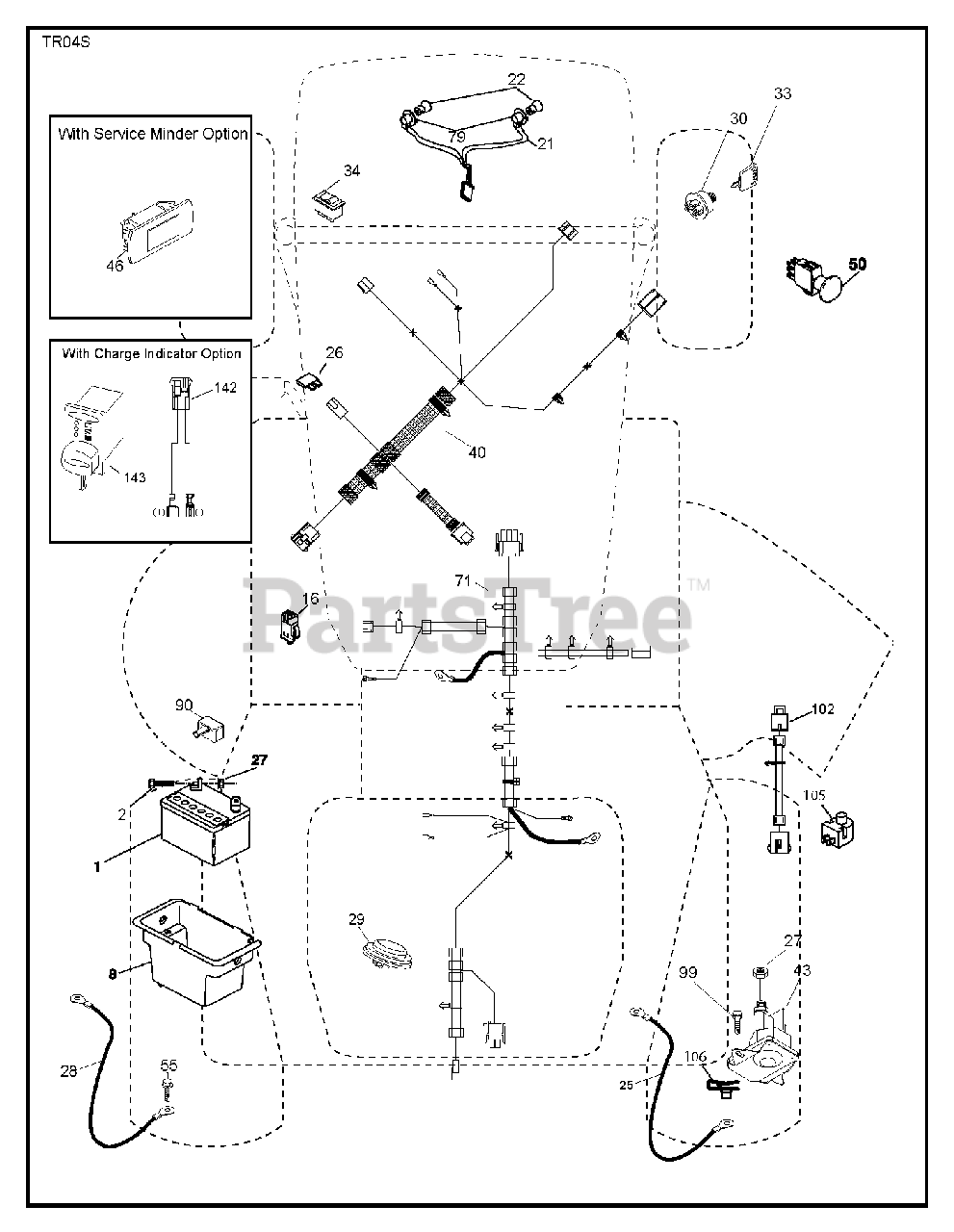

TS 238 (960410369-01) - Husqvarna 38" Garden Tractor (2015-02) ELECTRICAL Parts Diagram

38" Garden Tractor

ELECTRICAL Parts Diagram

  • Title
1

Husqvarna 532163465

Battery, Dry 30 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532193228

BOX.BATTERY.MNT.REAR.L

$28.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

22

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 581498001

CABLE.BATT.RED.8GA.17

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

28

Husqvarna 532421686

CABLE.GROUND.REAR.BATTERY.8G
(Superseded to 583390701)

$15.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

In Stock, only 1 left!

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

34

$9.49

$

In Stock, only 4 left!

0

40

Husqvarna 585555301

HARNESS.DASH.RRBATT.EL.CHG

$34.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

46

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

50

Husqvarna 532174651

RB PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 585849301

HARNESS.CHASSIS.RRBATT.RDYSTRT

$79.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

142

Husqvarna 583857801

CHARGE.PORT.PIGTAIL HARNESS
(Superseded to 583593501)

$37.99

$

In Stock, only 1 left!

0

143

Husqvarna 532448059

CHARGE.PORT
(Superseded to 583593501)

$37.99

$

In Stock, only 1 left!

0

106

Husqvarna 532174814

1/4-20 U NUT

$6.49

$

In Stock, only 1 left!

0
