TS 20VH50 A - Electrolux/AYP Lawn Tractor (1994) ENGINE/20 HP 50" Parts Diagram

Lawn Tractor

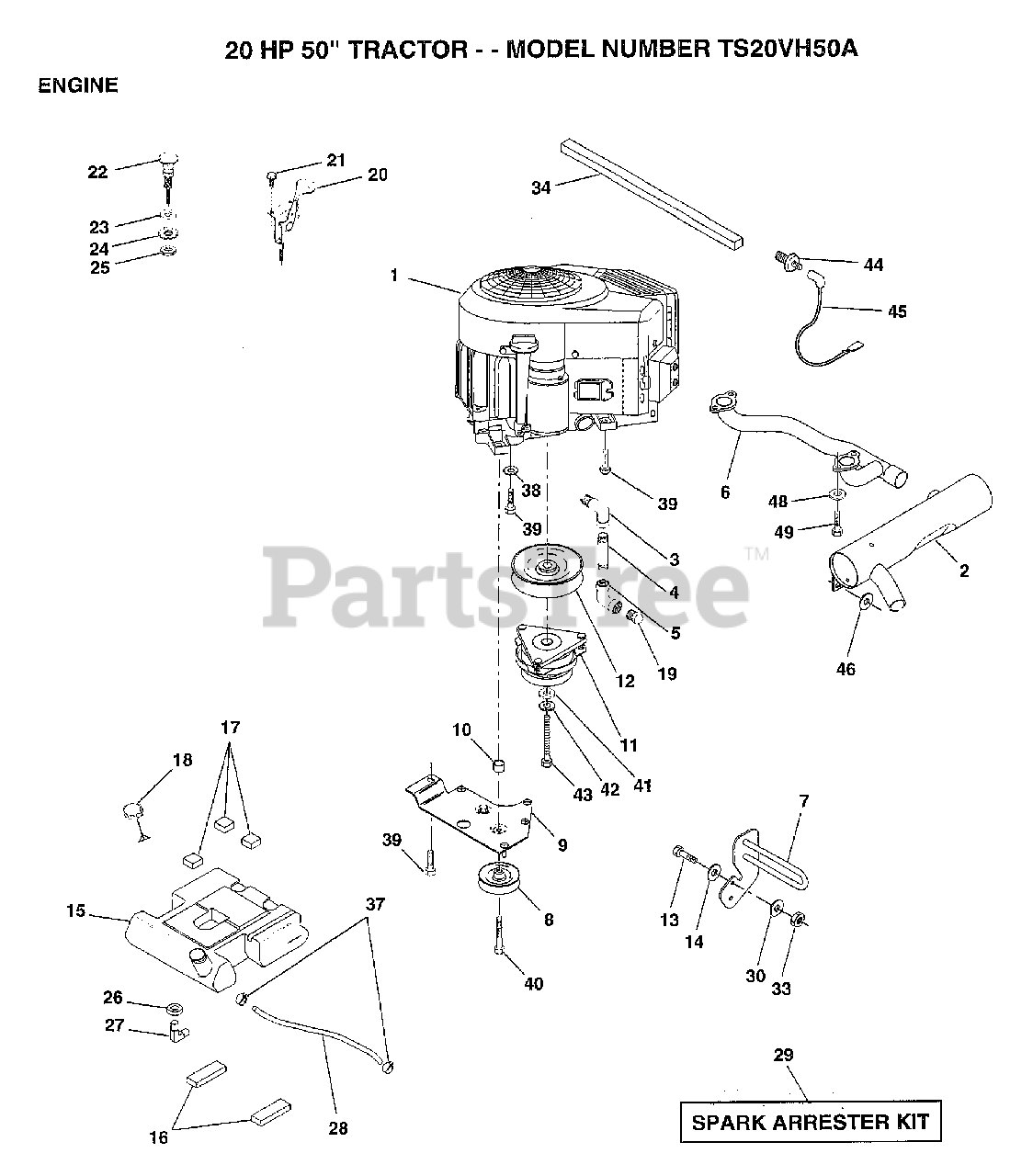

ENGINE/20 HP 50" Parts Diagram

  • Title
1

CHECK WITH SUPPLIER

$

$

Not available

2

Electrolux/AYP 140786

SUB= 144636

$

$

Not available

3

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

6

Electrolux/AYP 140805

PIPE.EXHAUST.B&S

$

$

Not available

7

Electrolux/AYP 143599

SUB= 151396
(Superseded to 151396)

$

$

Not available

8

Electrolux/AYP 121361X

SUB= 139123
(Superseded to 532121361)

$

$

Not available

9

Electrolux/AYP 138559

SUB= 150828
(Superseded to 532138559)

$

$

Not available

10

Electrolux/AYP 105432X

BUSHING.
(Superseded to 532105432)

$

$

Not available

11

Electrolux/AYP 137140

SUB= 142600
(Superseded to 532142600)

$

$

Not available

12

Electrolux/AYP 136907

PULLEY.ENGINE.VGT
(Superseded to 532136907)

$

$

Not available

13

Electrolux/AYP 74780624

"BOLT,HEX"
(Superseded to 874780624)

$7.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 19131414

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

15

Electrolux/AYP 141069

SUB= 151346
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

18

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

19

CHECK WITH SUPPLIER

$

$

Not available

19

Electrolux/AYP 13290300

PLUG T
(Superseded to 813290300)

$

$

Not available

20

Electrolux/AYP 132747

SUB= 532132748
(Superseded to 532132747)

$

$

Not available

21

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

22

Electrolux/AYP 132782

SUB= 132781
(Superseded to 532132782)

$

$

Not available

23

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, only 1 left!

0

28

$

$

Not available

29

Electrolux/AYP 132920

SPARK ARREST KIT
(Superseded to 532132920)

$

$

Not available

30

Electrolux/AYP 19132007

WASHER T
(Superseded to 819132007)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

35

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 74570512

SCREW
(Superseded to 874570512)

$3.99

$

In Stock, only 4 left!

0

37

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

38

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

40

Electrolux/AYP 17490652

SCREW.3/8-16X3.25
(Superseded to 817490652)

$

$

Not available

41

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

42

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

$

$

Not available

44

Electrolux/AYP 142320

SWITCH OIL KOHLER
(Superseded to 532142320)

$

$

Not available

45

Electrolux/AYP 144222

WIRE.LEAD.SENTRY
(Superseded to 532144222)

$

$

Not available

46

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP M710708020

BOLT.HD.SOCKET.
(Superseded to 583781601)

$2.99

$

Usually ships in 3-10 days

0
