TS 20H50 B - Electrolux/AYP Lawn Tractor (1994) LIFT/20 HP 50" Parts Diagram

Lawn Tractor

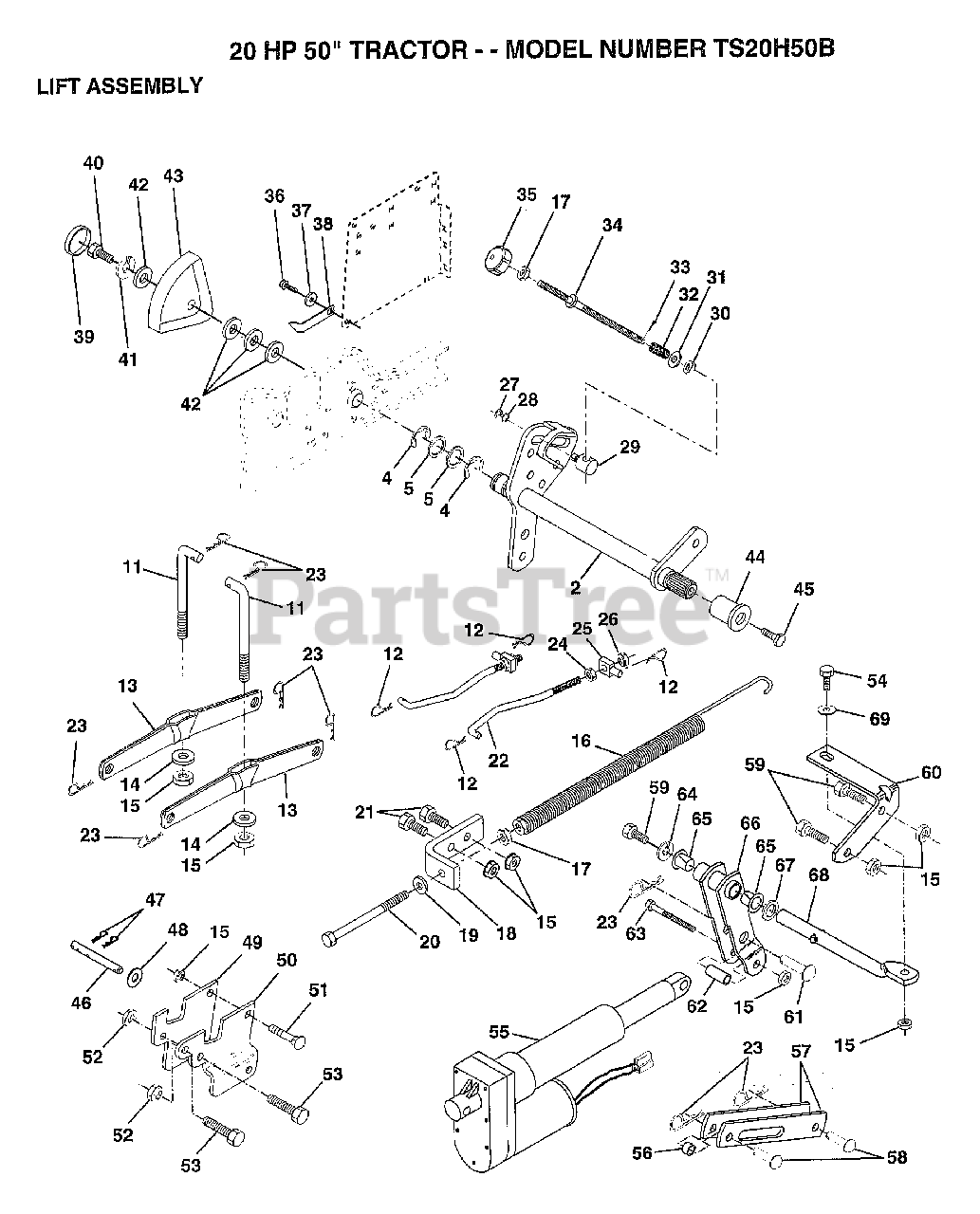

LIFT/20 HP 50" Parts Diagram

  • Title
2

Electrolux/AYP 137295

SUB= 145542

$

$

Not available

4

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 142369

SUB= 146704
(Superseded to 532142369)

$

$

Not available

12

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 139867

SUB= 139868
(Superseded to 532139867)

$

$

Not available

14

Electrolux/AYP 140302

BEARING PVT LH
(Superseded to 532169865)

$

$

Not available

15

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 674A247

SUB= 918674A247
(Superseded to 583791201)

$84.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 143363

BRACKET SPRING AS
(Superseded to 532143363)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 5328J

BOLT-ADJ SPRING T
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

23

Murray 4939M

SUB= 85902

$

$

Not available

24

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

25

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

26

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

27

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

29

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$

$

Not available

30

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

31

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

32

Electrolux/AYP 137150

SPRING.COMP.INF.H
(Superseded to 532137150)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

34

Electrolux/AYP 137167

ROD.ADJ.LIFT
(Superseded to 532137167)

$7.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 138057

KNOB INF 3/8-16
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

37

Electrolux/AYP 120529X

WASHER T
(Superseded to 532120529)

$2.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 123933X505

POINTER HGT IND
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 123935X

"PLUG,HOLE"
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 19112410

WASHER
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 123934X

HEIGHT INDICATOR
(Superseded to 532123934)

$

$

Not available

44

Electrolux/AYP 105624X

LIFT HUB-LEVE T
(Superseded to 532105624)

$12.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 74760622

BOLT
(Superseded to 874760622)

$4.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 140877

PIN.ACTUATOR
(Superseded to 532140877)

$

$

Not available

47

$

$

Not available

48

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

49

Electrolux/AYP 140876

BRACKET.ACTUAT.LH

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 140875

BRACKET.ACTUAT.RH

$8.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 72140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 73800700

NUT.7/16
(Superseded to 873800700)

$4.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 74780720

BOLT.HX.HD.7/16
(Superseded to 874780720)

$6.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 124371X

ACTUATOR.07823175
(Superseded to 532124371)

$

$

Not available

56

Electrolux/AYP 138909

SPACER.500X384X23
(Superseded to 532138909)

$4.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 138905

LINK.LIFT.ELECT.
(Superseded to 532138905)

$

$

Not available

58

Electrolux/AYP 138947

PIN.PIVOT
(Superseded to 532138947)

$

$

Not available

59

Electrolux/AYP 74760614

SUB= 74760616

$

$

Not available

60

Electrolux/AYP 138912

BRACKET.ROD.PIVOT

$18.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 138948

PIN.PIVOT
(Superseded to 532138948)

$

$

Not available

62

Electrolux/AYP 5950J

TUBE GT
(Superseded to 532005950)

$3.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 74520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, only 2 left!

0

64

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 139276

NYLINER.ROD.PIVOT
(Superseded to 532139276)

$3.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 138908

ARM.ASM.PIVOT
(Superseded to 532138908)

$36.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 19211621

WASHER
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

68

Electrolux/AYP 138914

ROD.SUPPORT.PIVOT

$9.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 19131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0
