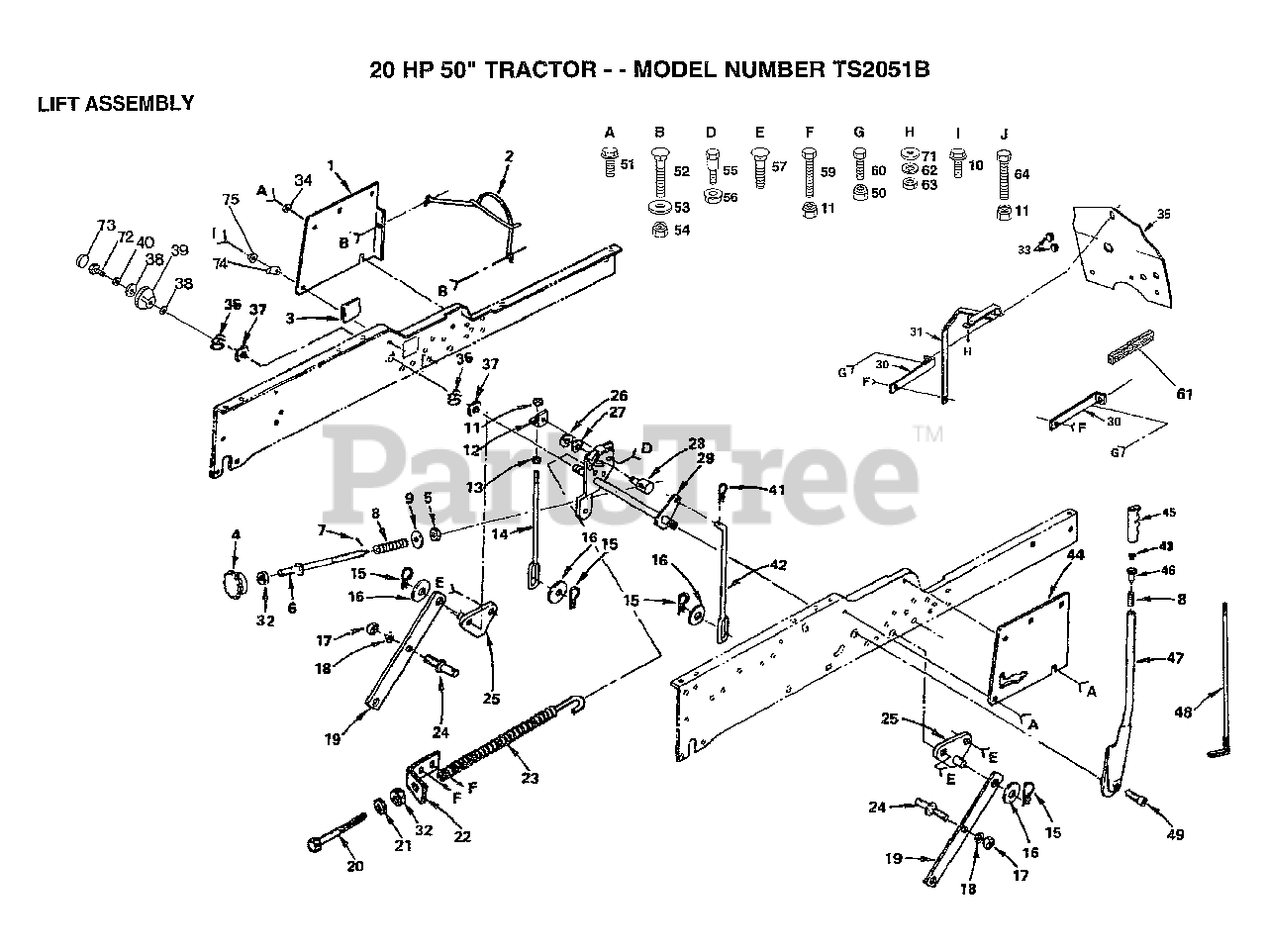

TS 2051 B - Electrolux/AYP Lawn Tractor (1993) 20HP 50"/LIFT ASSEMBLY Parts Diagram

Lawn Tractor

20HP 50"/LIFT ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 121046X

SUB= 532121046

$

$

Not available

2

Electrolux/AYP 126651X

"GUARD, BELT"
(Superseded to 532126651)

$

$

Not available

3

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

4

Electrolux/AYP 138057

KNOB INF 3/8-16
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 110807X

NUT T
(Superseded to 532110807)

$

$

Not available

6

Electrolux/AYP 110811X

ROD ADJ. T
(Superseded to 532110811)

$

$

Not available

7

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

8

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 7594J

BRACKET T
(Superseded to 532007594)

$

$

Not available

13

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 7596J

LINK-LIFT MOW T
(Superseded to 532007596)

$

$

Not available

15

Electrolux/AYP 9135R

SPRING H
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

18

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 105429X

SUSPENSION ARM GT
(Superseded to 532105429)

$

$

Not available

20

Electrolux/AYP 5328J

BOLT-ADJ SPRING T
(Superseded to 532005328)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 5329J

SUB= 143363

$

$

Not available

23

Electrolux/AYP 674A247

SUB= 918674A247
(Superseded to 583791201)

$84.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 105413X

PIVOT STUD GT
(Superseded to 532105413)

$

$

Not available

25

Electrolux/AYP 105501X

SUSP BRACKET T
(Superseded to 532105501)

$

$

Not available

26

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

28

Electrolux/AYP 110810X

TRUNION LT
(Superseded to 532110810)

$

$

Not available

29

Electrolux/AYP 124217X

SHAFT ASS'Y LIFT
(Superseded to 532124217)

$56.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 110903X

BRACKET T
(Superseded to 532110903)

$

$

Not available

31

Electrolux/AYP 128141

SUB= 532128141

$

$

Not available

32

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

33

$

$

Not available

34

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 122085X

"SHIELD HEAT, BASE"
(Superseded to 532122085)

$

$

Not available

36

Electrolux/AYP 12000022

E-RING
(Superseded to 812000022)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 19112410

WASHER
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 123934X

HEIGHT INDICATOR
(Superseded to 532123934)

$

$

Not available

40

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

41

Murray 4939M

SUB= 85902

$

$

Not available

42

Electrolux/AYP 105503X

LIFT LINK RH T
(Superseded to 532105503)

$

$

Not available

43

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

44

Electrolux/AYP 121045X

SUB= 532121045

$

$

Not available

45

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 122364X

SUB= 125925X
(Superseded to 532122364)

$

$

Not available

47

$

$

Not available

48

Electrolux/AYP 121006X

LEVER ROD LT
(Superseded to 532121006)

$34.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 74780624

"BOLT,HEX"
(Superseded to 874780624)

$7.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 72140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

53

Electrolux/AYP 19111610

WASHER
(Superseded to 819111610)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 7901J

SHOULDER BOLT T
(Superseded to 532007901)

$4.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 73900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

57

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

62

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

63

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

64

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 74780516

SUB= 77394
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 123935X

"PLUG,HOLE"
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 123933X505

POINTER HGT IND
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 120529X

WASHER T
(Superseded to 532120529)

$2.99

$

Usually ships in 3-10 days

0
