TS 2051 B - Electrolux/AYP Lawn Tractor (1993) 20HP 50"/FRAME, FENDER, AND DRAW BAR Parts Diagram

Lawn Tractor

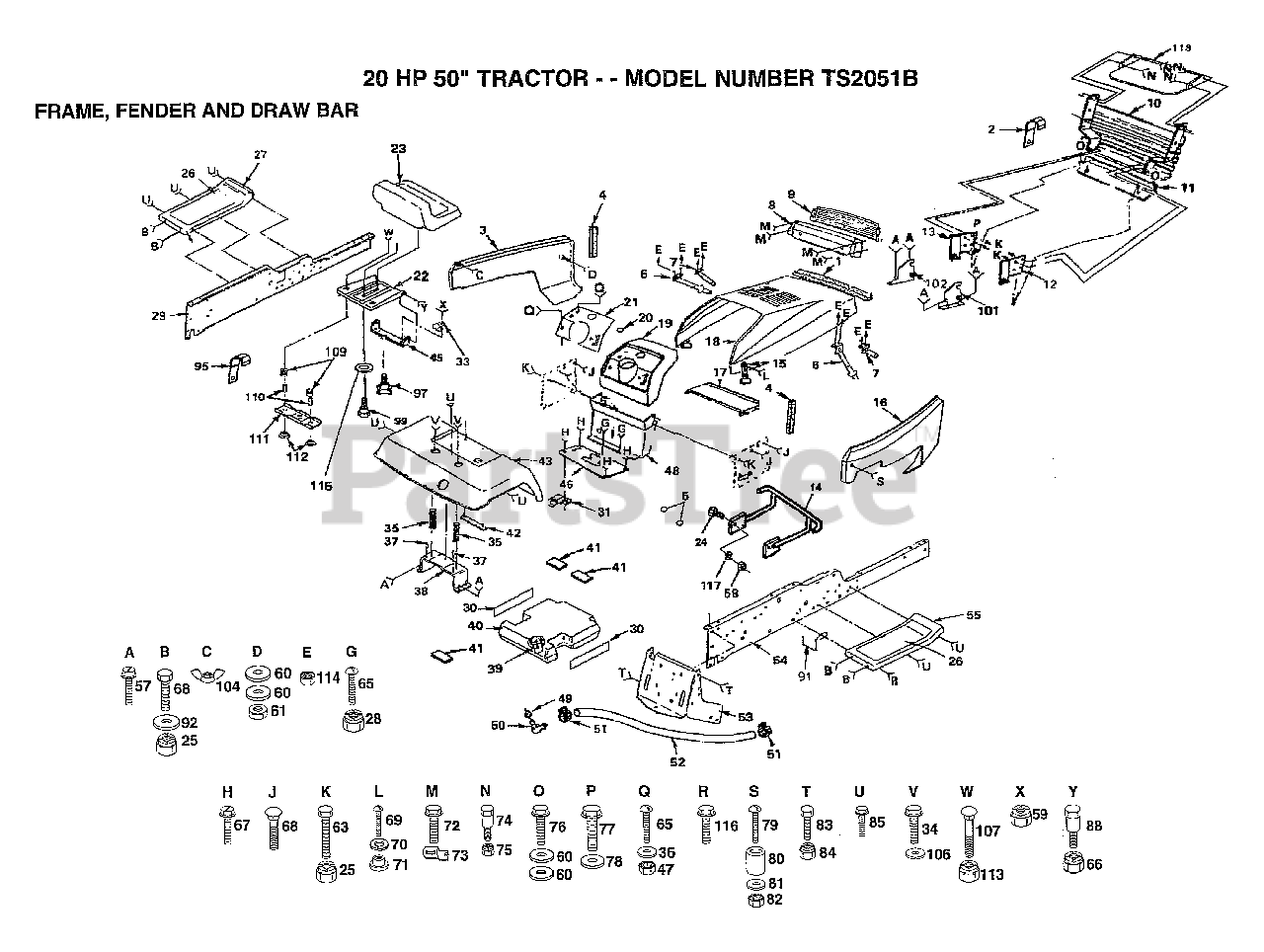

20HP 50"/FRAME, FENDER, AND DRAW BAR Parts Diagram

  • Title
1

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

2

Electrolux/AYP 128146

SUB= 532128146

$

$

Not available

3

Electrolux/AYP 140678X505

SUB= 150302X505
(Superseded to 150302X505)

$

$

Not available

4

Electrolux/AYP 106088X

FOAM STRIP T
(Superseded to 532106088)

$

$

Not available

5

Electrolux/AYP 124238X

CAP SPRING
(Superseded to 532124238)

$

$

Not available

6

$

$

Not available

7

$

$

Not available

8

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

9

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

$

$

Not available

12

Electrolux/AYP 110854X

SUPPORT RH YTH

$

$

Not available

13

Electrolux/AYP 110855X

SUPPORT LH YTH
(Superseded to 532110855)

$

$

Not available

14

Electrolux/AYP 135258

BUMPER ASSY.

$170.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 15

0

16

Electrolux/AYP 140679X505

PANEL SIDE RH
(Superseded to 150303X505)

$

$

Not available

17

Electrolux/AYP 140229

SUPPORT BATRY VGT
(Superseded to 532007985)

$

$

Not available

18

Electrolux/AYP 132635X505

SUB= 150301X505

$

$

Not available

19

Electrolux/AYP 140398

DASHBOARD BLACK
(Superseded to 584445901)

$21.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available

$

$

Not available

22

Electrolux/AYP 140552

SUB= 155925
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 129598

SUB= 140121

$

$

Not available

24

Electrolux/AYP 74780816

BOLT
(Superseded to 582741301)

$2.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 133671

FOOTREST PAD
(Superseded to 532133671)

$10.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 105465X505

SUB= 145244X505

$

$

Not available

28

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 140504

SUB= 151630
(Superseded to 532140504)

$

$

Not available

30

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

34

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

37

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 141069

SUB= 151346
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

42

Electrolux/AYP 140675

STRAP ASM FENDER
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 121642X505

FENDER
(Superseded to 583689701)

$

$

Not available

45

$

$

Not available

46

Electrolux/AYP 106042X018

SADDLE.6SP.GT
(Superseded to 583648201)

$3.99

$

In Stock, only 1 left!

0

$2.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 104608X

DASH ASSEMBLY
(Superseded to 532104608)

$

$

Not available

49

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 5

0

51

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

52

$

$

Not available

53

Electrolux/AYP 140506

DRAWBAR GT
(Superseded to 175282)

$

$

Not available

54

Electrolux/AYP 140505

SUB= 150383
(Superseded to 532140505)

$

$

Not available

55

Electrolux/AYP 105464X505

SUB= 145243X505

$

$

Not available

57

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

59

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

63

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

66

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

67

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

71

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

$2.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

74

$

$

Not available

75

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 17190412

SCREW
(Superseded to 817190412)

$

$

Not available

77

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

80

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 8

0

81

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 74760716

BOLT
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 73800700

NUT.7/16
(Superseded to 873800700)

$4.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 139888

BOLT.SHLD.5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

91

Electrolux/AYP 105500X

BELT RETAINER GT
(Superseded to 532105500)

$

$

Not available

92

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

$

$

Not available

97

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

99

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 110853X

SUPPORT RH YTH
(Superseded to 532110853)

$

$

Not available

102

Electrolux/AYP 110852X

SUPPORT LH YTH
(Superseded to 532110852)

$

$

Not available

104

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

106

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

107

Electrolux/AYP 72050411

SUB= 872050411

$

$

Not available

109

Electrolux/AYP 123740X

SPRING COMPRESSED
(Superseded to 532123740)

$6.49

$

Usually ships in 3-10 days

0

110

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

111

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

114

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

115

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

116

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 2 left!

0

117

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

118

Electrolux/AYP 127637

"SHIELD,HEAT"
(Superseded to 582945201)

$17.99

$

Usually ships in 3-10 days

0
